5.9. Emergency Stop Replacement

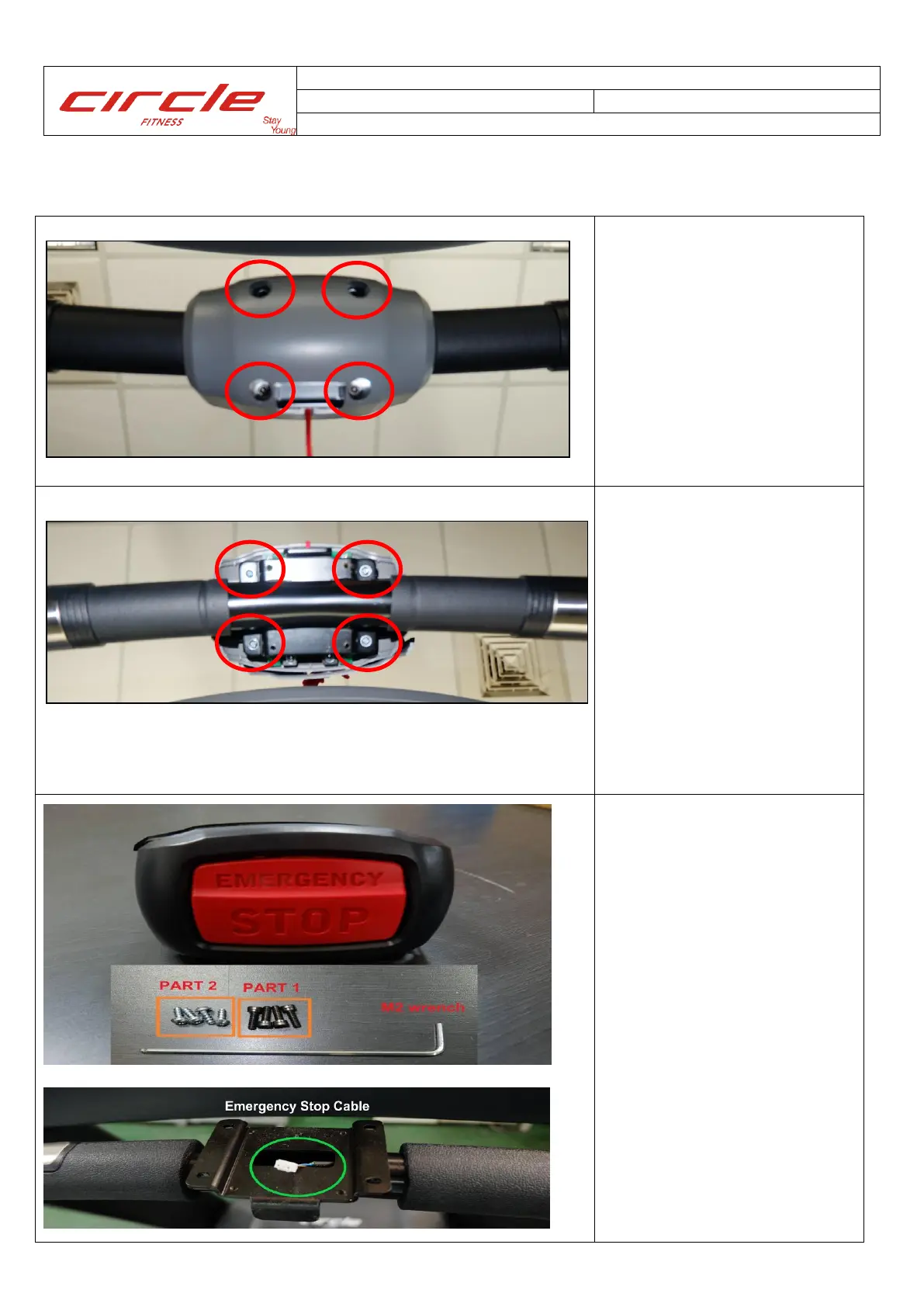

STEP 1:
Remove the 4 screws on
Emergency Stop Lower
Cover via M3 wrench.
Remove the Emergency
Stop Lower Cover.
STEP 2:
Remove the 4 screws on
Emergency Stop Base via
screw driver.
Remove the Emergency
Stop Base Service
Package and Unplug the
Emergency Stop Cable to
disassemble.
STEP 3:
Place and install the on
Emergency Stop Base
and plug the Emergency
Stop Cable into the Base
to assemble.
Secure the 4 screws (part
2) via M3 wrench.
