24

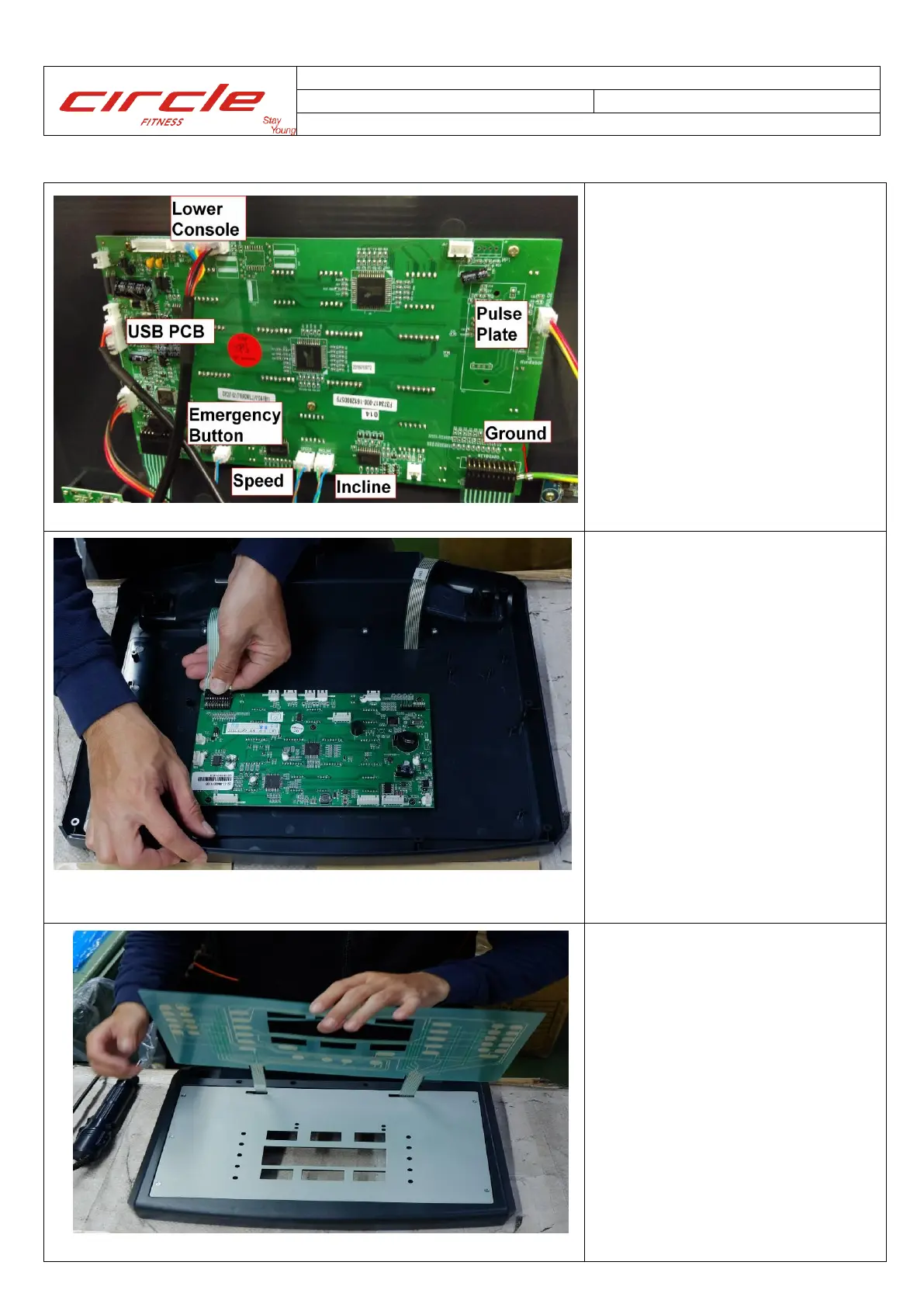

STEP 4:
Unplug the cables and wires
on PCB of Console.
STEP 5:
Unplug flexible flat cable of
membrane for PCB.
Remove the faulty
membrane and overlay on
Console.
Clearing the Upper Console
surface with alcohol to
remove any left over
adhesive.
STEP 6:
Insert the flexible flat cable
of membrane into the hole of
the upper console and plug it
in.
Remove the protective film
from the back of the
membrane and paste it.
