43

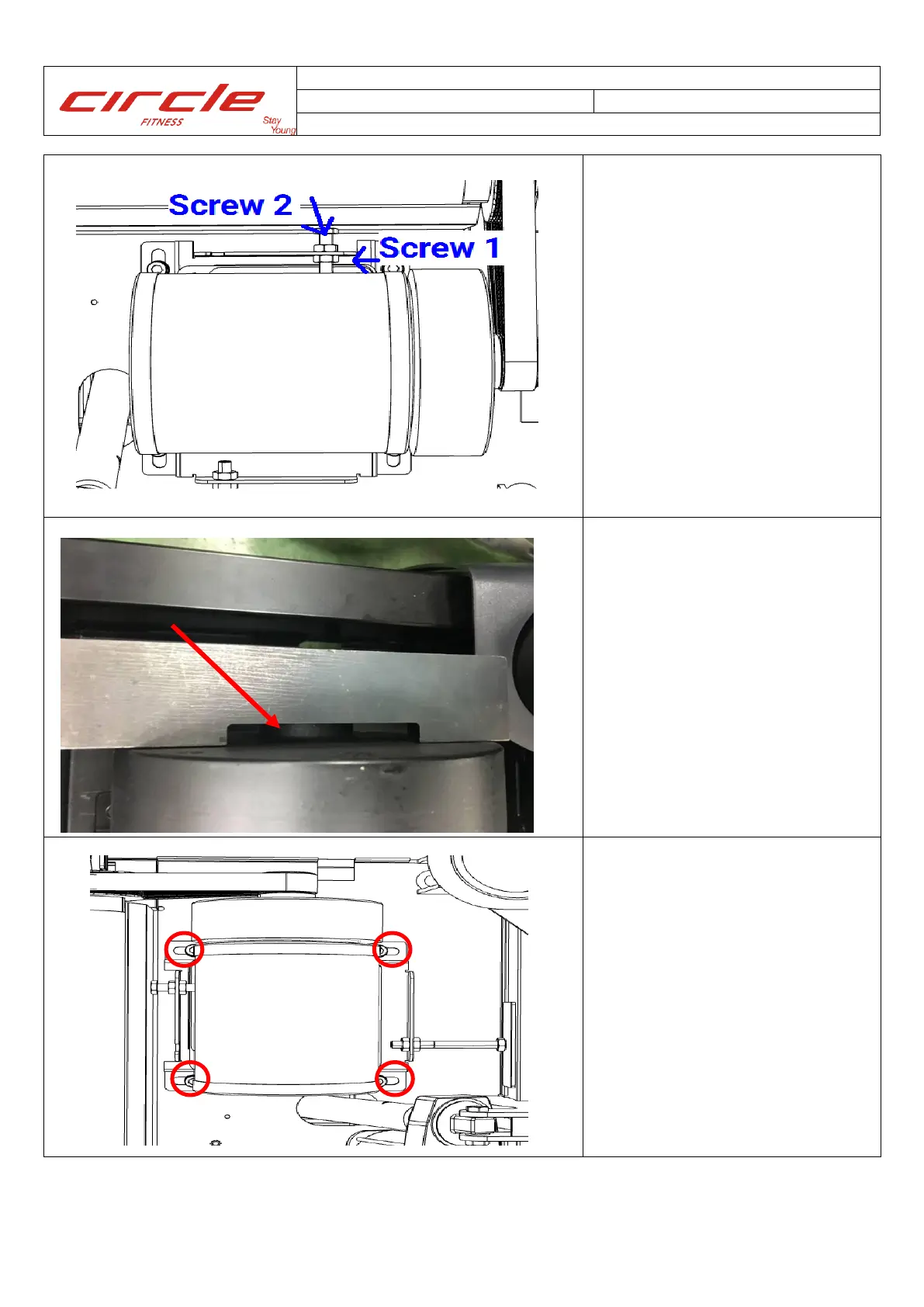

STEP 7:
Tighten screws on
adjustment rod 2 using M17
and M14 wrench.
The tension value is
206~216Hz (500~550N).
STEP 8:
After the rod screws are
locked, confirm the motor
alignment fixture is parallel
to the motor plane.
STEP 9:
Secure 4 motor mounting
screws on motor plate via
M8 wrench.
Remove the motor alignment
fixture.
