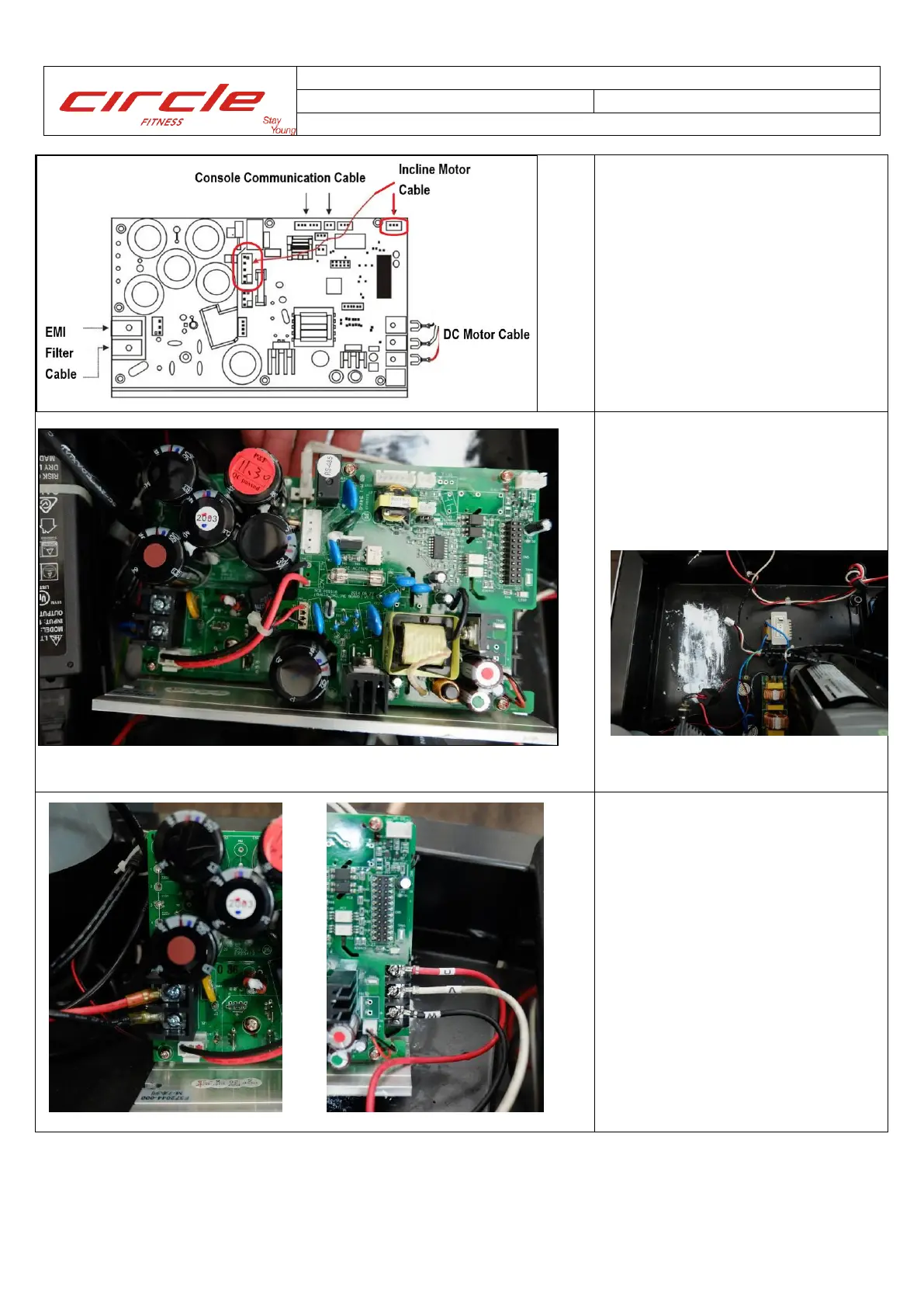

STEP 3:
Unplug the Console
Communication Cable;
Incline Motor Cable, DC
Motor Cable and EMI
Filter Cable from the
Inverter.
STEP 4:
Remove the faulty Inverter
and replace the new
Inverter.
STEP 5:
Plug the DC Motor Cable
and EMI Filter Cable into
the Inverter and secure
the screws via
screwdriver.
