51

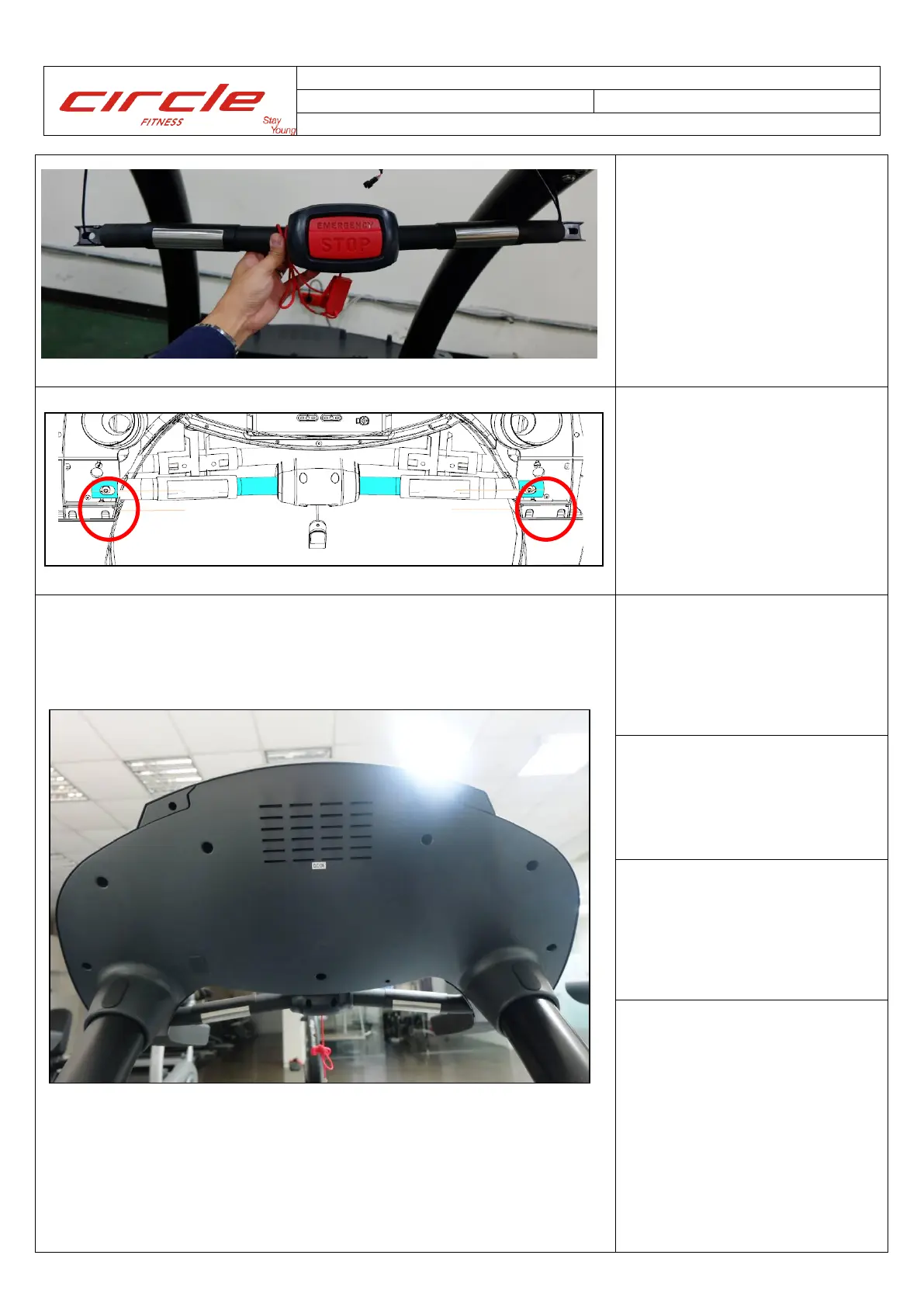

STEP 7:
Remove the faulty Hand
Pulse Handlebar set and
replace the new service
package.
STEP 8:
Secure the mounting
screws on Hand Pulse
Handlebar.
STEP 9:
Plug the Hand Pulse
Transfer into Heart Rate
PCB.
STEP 10:
Plug the Hand Pulse
Transfer back Heart Rate
PCB.
STEP 11:
Plug the Emergency
Button cable back PCB of
Console.
STEP 12:
Secure the screws under
the Upper Console Cover
to assemble.
Secure the 9 screws to
assemble the Lower
Console Cover via screw
driver for complete.
