Cirrus DESIGN SR22 - Page 16

1-4 P/N 13772-002
Section 1 Cirrus Design
General SR22

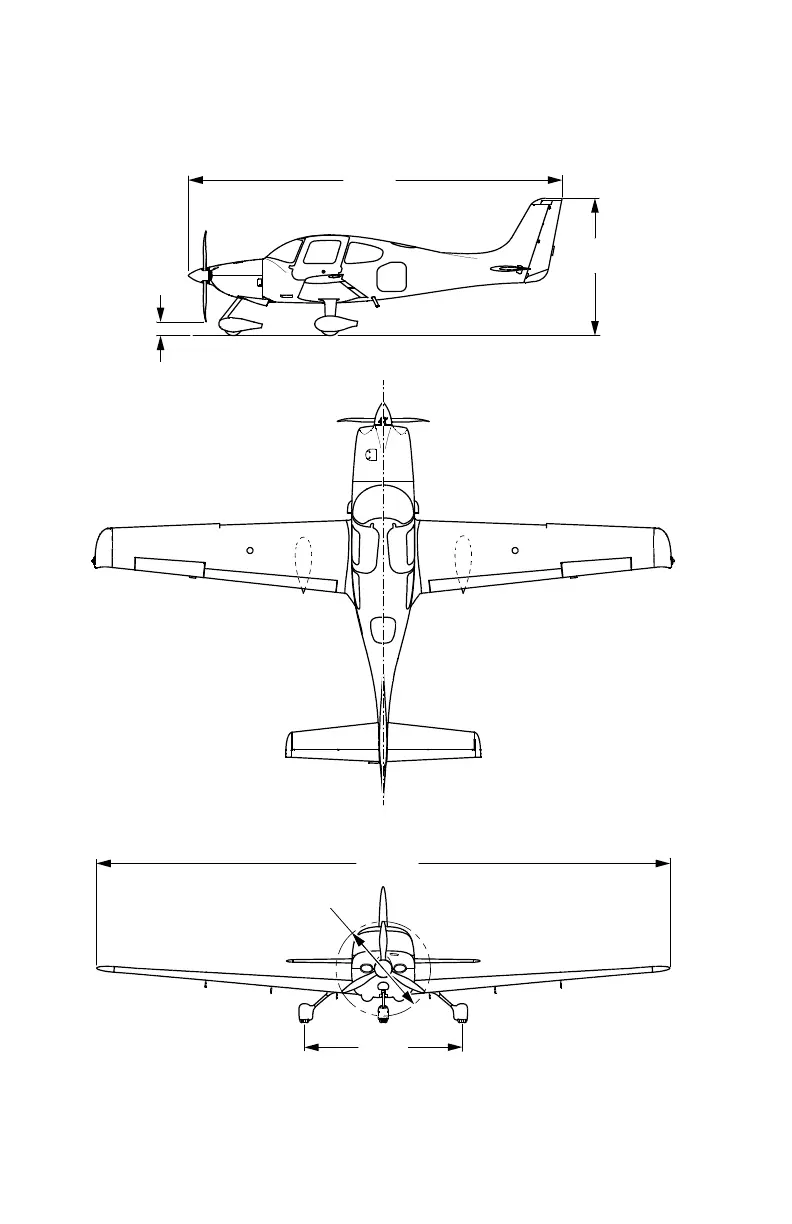

Figure 1-1
Airplane Three View
78 inches 3-BLADE
198 cm
38.3 ft
11.67 m
9.1 ft
2.8 m
9 inches (minimum)
23 cm (minimum)
26.0 ft
7.92 m
SR22_FM01_2414
8.9 ft
2.71 m
NOTE:
• Wing span includes
position and strobe lights.
• Prop ground clearance at
3400 lb - 9" inches (23 cm).
• Wing Area = 144.9 sq. ft.
Reissue A
