Cirrus DESIGN SR22 - Page 18

1-6 P/N 13772-002
Section 1 Cirrus Design
General SR22

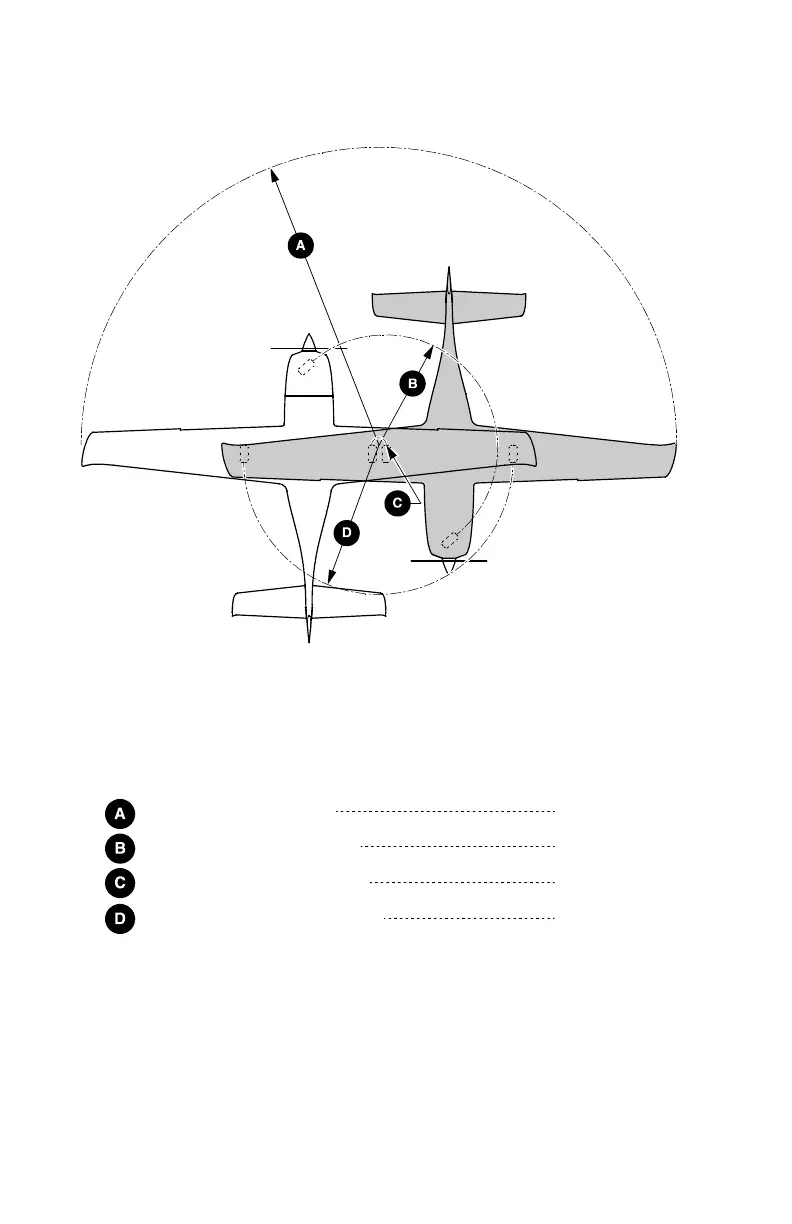

Figure 1-3
Turning Radius
9.1 ft. (2.77 m)
0.5 ft. (0.15 m)
24.3 ft. (7.41 m)
7.0 ft. (2.16 m)
RADIUS FOR NOSE GEAR
RADIUS FOR OUTSIDE GEAR
RADIUS FOR INSIDE GEAR
RADIUS FOR WING TIP
TURNING RADII ARE CALCULATED USING ONE BRAKE AND
PARTIAL POWER. ACTUAL TURNING RADIUS MAY VARY AS
MUCH AS THREE FEET.
GROUND TURNING CLEARANCE
SR22_FM01_2412
Reissue A
