Cirrus SR22T User Manual

Cirrus Design Section 9
SR22 / SR22T Supplements
P/N 13772-135 15 of 30
Figure -1

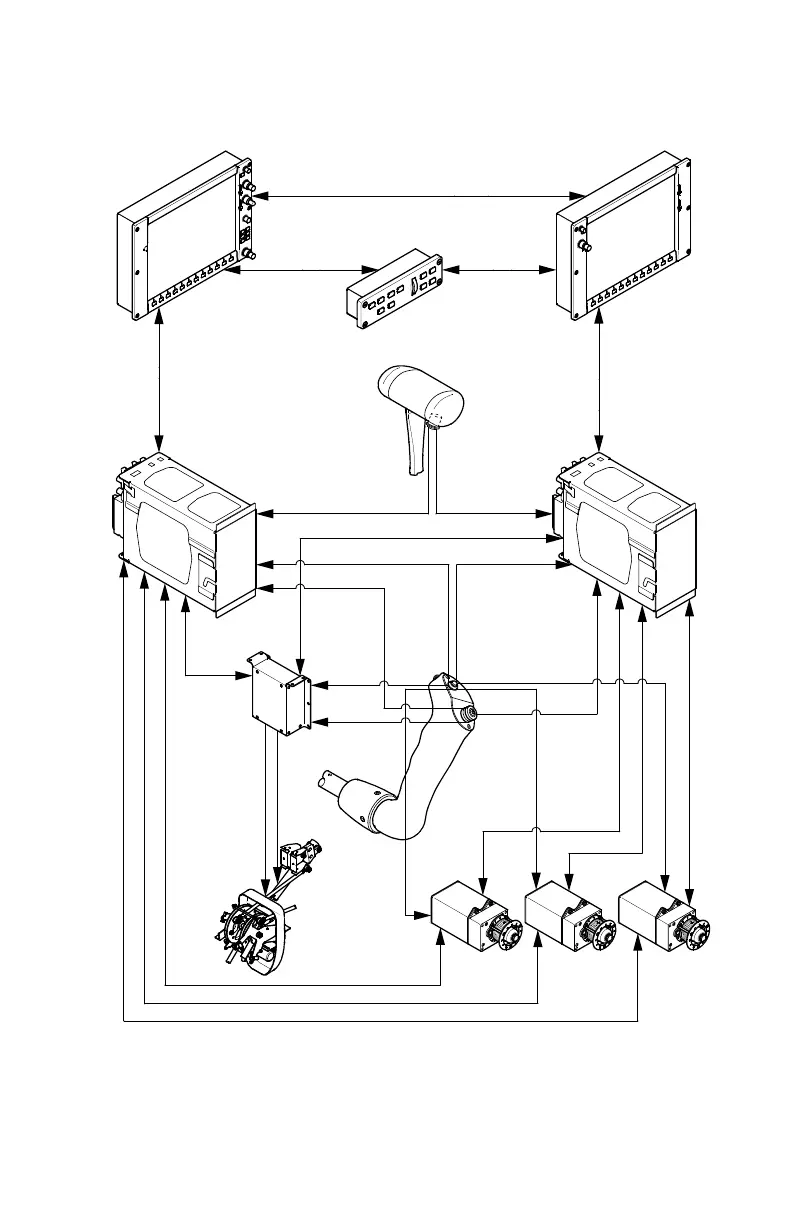

GFC 700 Automatic Flight Control System Schematic
GFC 705
MODE CONTROLLER
PITCH TRIM
CARTRIDGE
INTEGRATED
AVIONICS UNIT 2
INTEGRATED
AVIONICS UNIT 1
MFD PFD
PITCH TRIM
ADAPTER
YAW SERVO
(optional)
ROLL SERVO PITCH SERVO
SR22_FM09_2919
4-WAY
TRIM
GO-AROUND
SWITCH
A/P DISC
Revision 03: 12-14-10
