2-17
Cisco Aironet 1130AG Series Access Point Hardware Installation Guide
OL-8369-05
Chapter 2 Installing the Access Point
Attaching the Access Point to the Mounting Plate
Step 3 In the cable bay area, line up the visible access point keyhole with the mounting plate keyhole clip
located near the security padlock hole (see Figure 2-10).

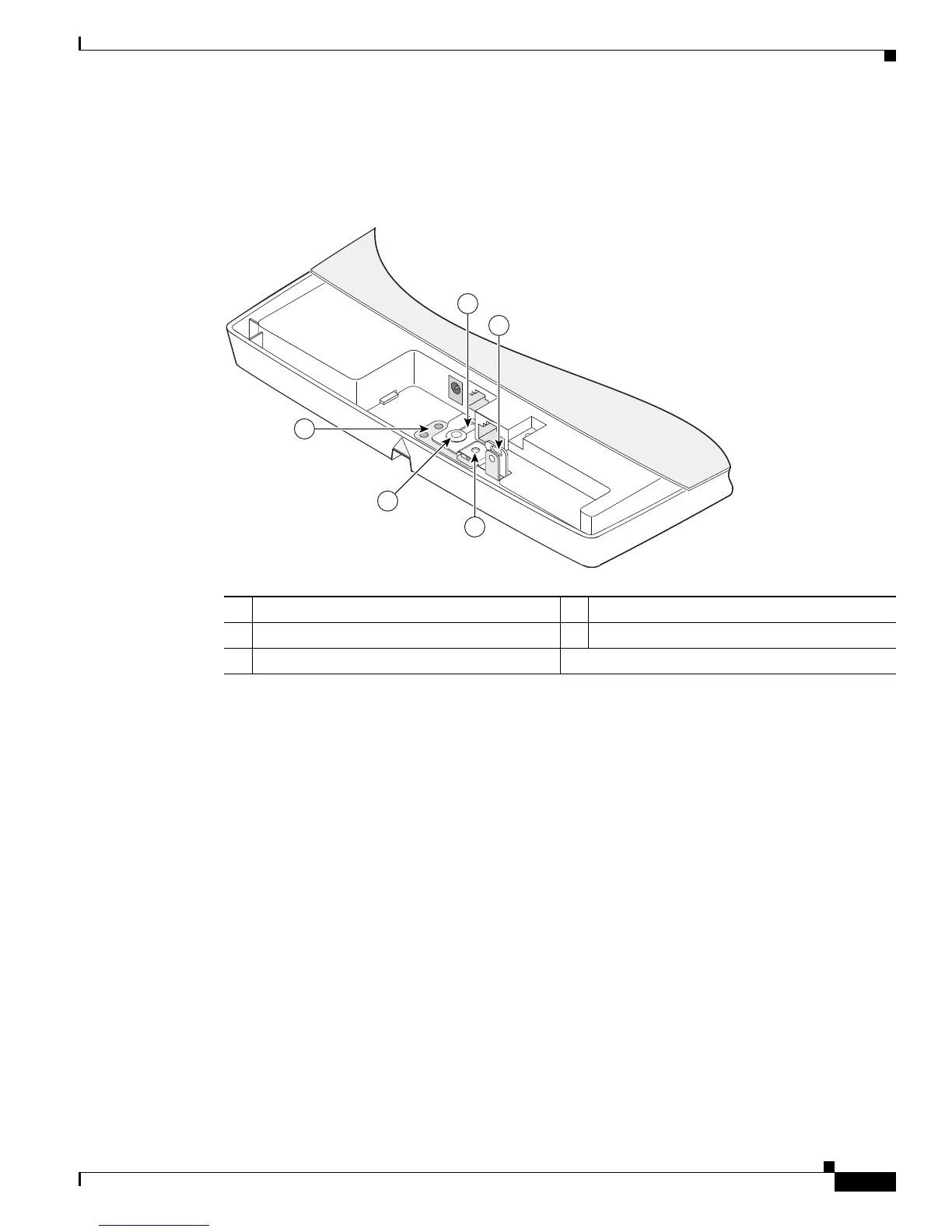

Figure 2-10 Aligning the Keyhole Clip to the Access Point Keyhole
Step 4
Insert the keyhole clip into the keyhole and maintain a slight pressure to hold the access point in place.
Step 5 Slightly rotate the access point from side-to-side until you hear the second keyhole clip falling into the
other keyhole that is located on the opposite end of the access point and is not visible.
Step 6 Slide the access point back over the keyhole clips. You will hear a click when the locking detent contacts
the access point and locks it into place.
For instructions on connecting your cables, refer to the “Connecting the Ethernet and Power Cables”
section on page 2-21.
For instructions on securing your access point, refer to the “Securing the Access Point” section on
page 2-18.
1 Access point keyhole 4 Security screw hole
2 Mounting plate 5 Padlock hole
3 Mounting plate keyhole clip
121888
1
5
4
2
3
