Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-8371-05
Chapter 2 Installing the Access Point
Mounting Above a Suspended Ceiling
It may be helpful to refer to Figure 2-5 before proceeding.

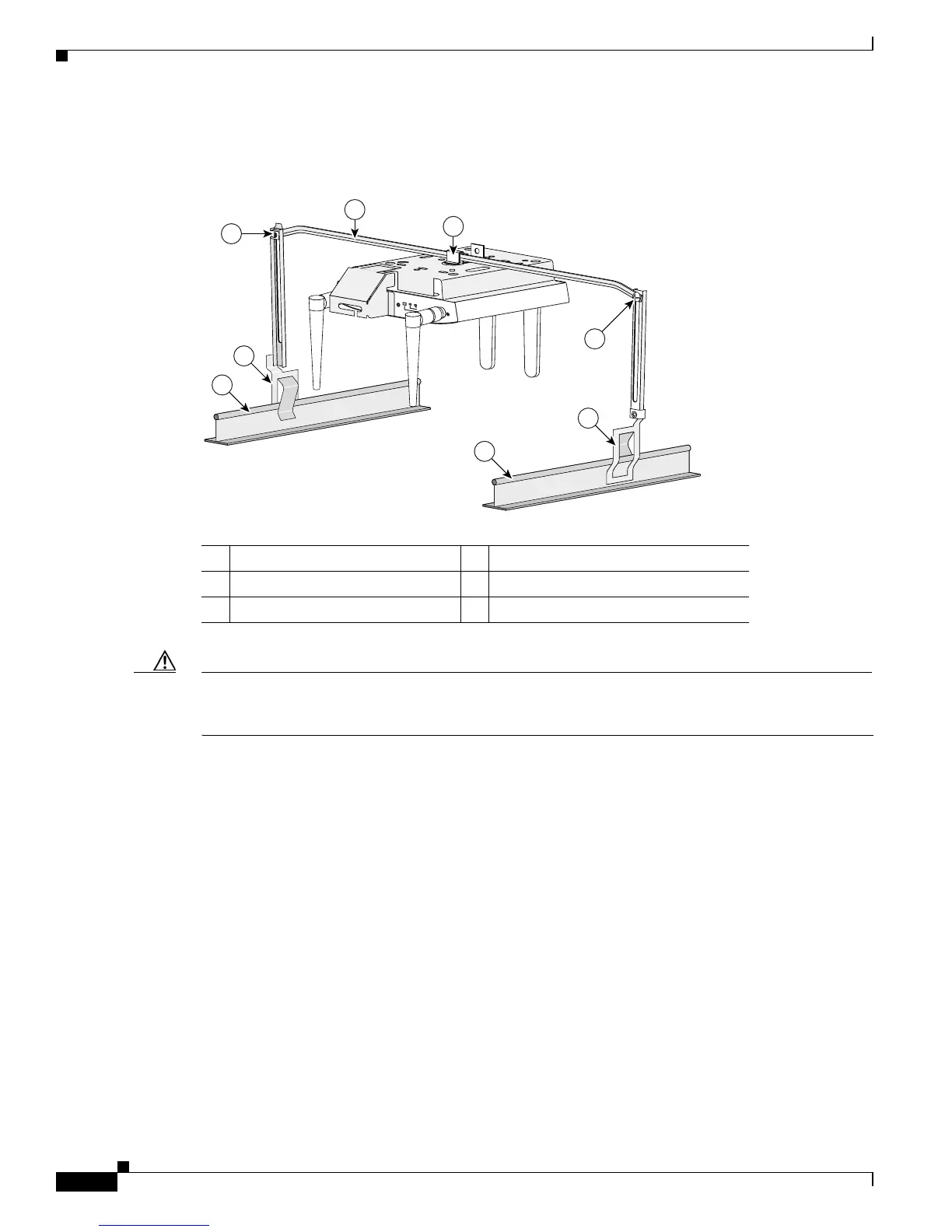

Figure 2-5 Above Suspended Ceiling Parts
Caution Only the fiber-optic power injector (AIR-PWRINJ-FIB) has been tested to UL 2043 for operation in a
building’s environmental air space; no other power injectors or power modules have been tested to UL 2043
and they should not be placed in a building’s environmental air space, such as above suspended ceilings.
1
Suspended ceiling T-rail
4
T-bar box hanger
2
T-rail clip
5
Bracket mounting clip
3
Height adjustment screw
135583
