Chapter 6 Building the Table Assembly
Building the Table Assembly, Product ID CTS3K-FUR-MAPLE
Step 2 Assemble the four Molded foam bumpers and the four Table leg bases.
Note The leg base with only one top right attachment bracket is the left-wing leg (see Figure 6-10).
The other three legs each have two attachment brackets.
Note Steps for installing all the power and signal cables are in Chapter 7, “Assembling the Remaining
Cisco TelePresence Elements.”. Steps for routing the cables are in Chapter 8, “Routing Power
and Signal Cables.”

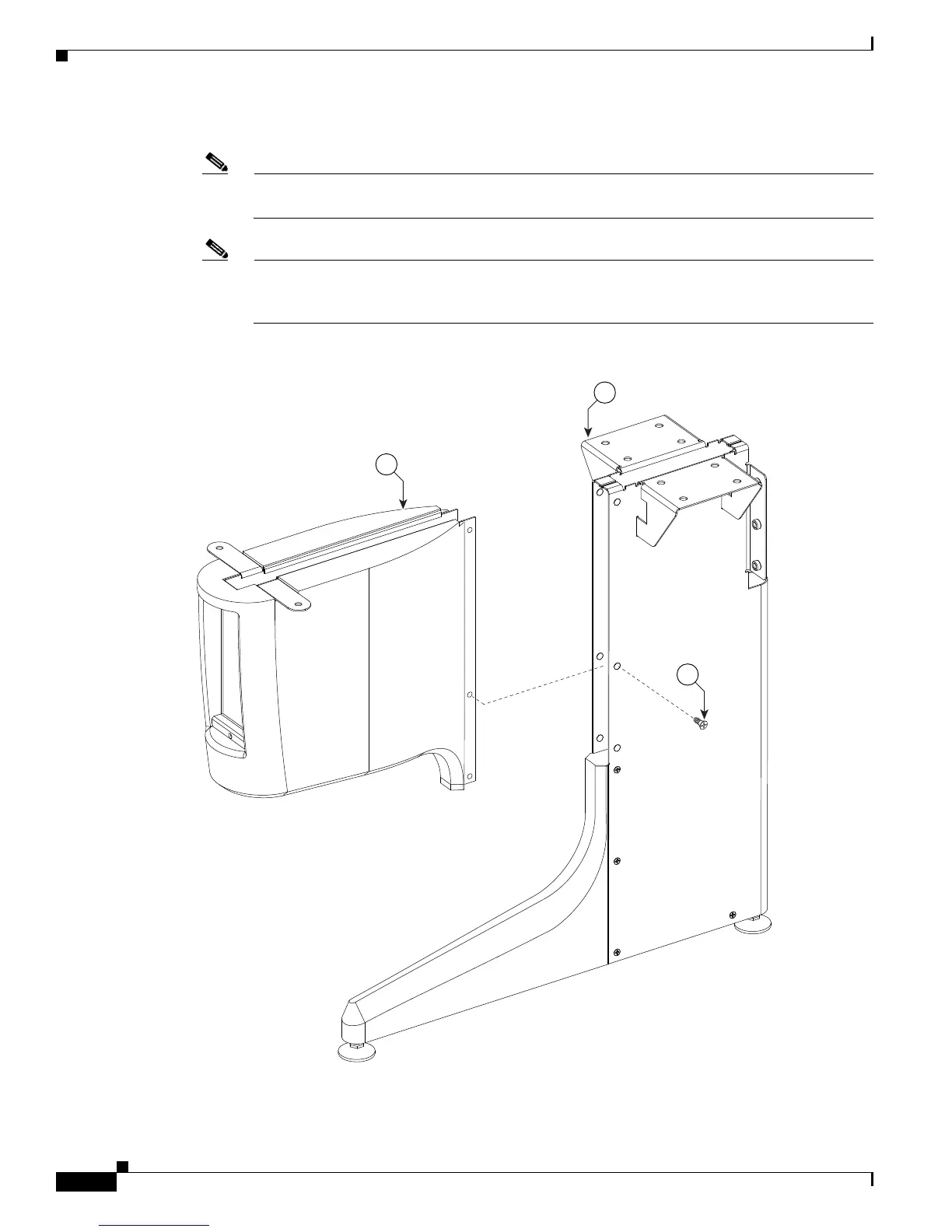

Figure 6-2 Four Molded foam bumpers and the four Table leg bases
201153
3
15
1
