Appendix C Connecting to DC Power
Connecting to DC Power

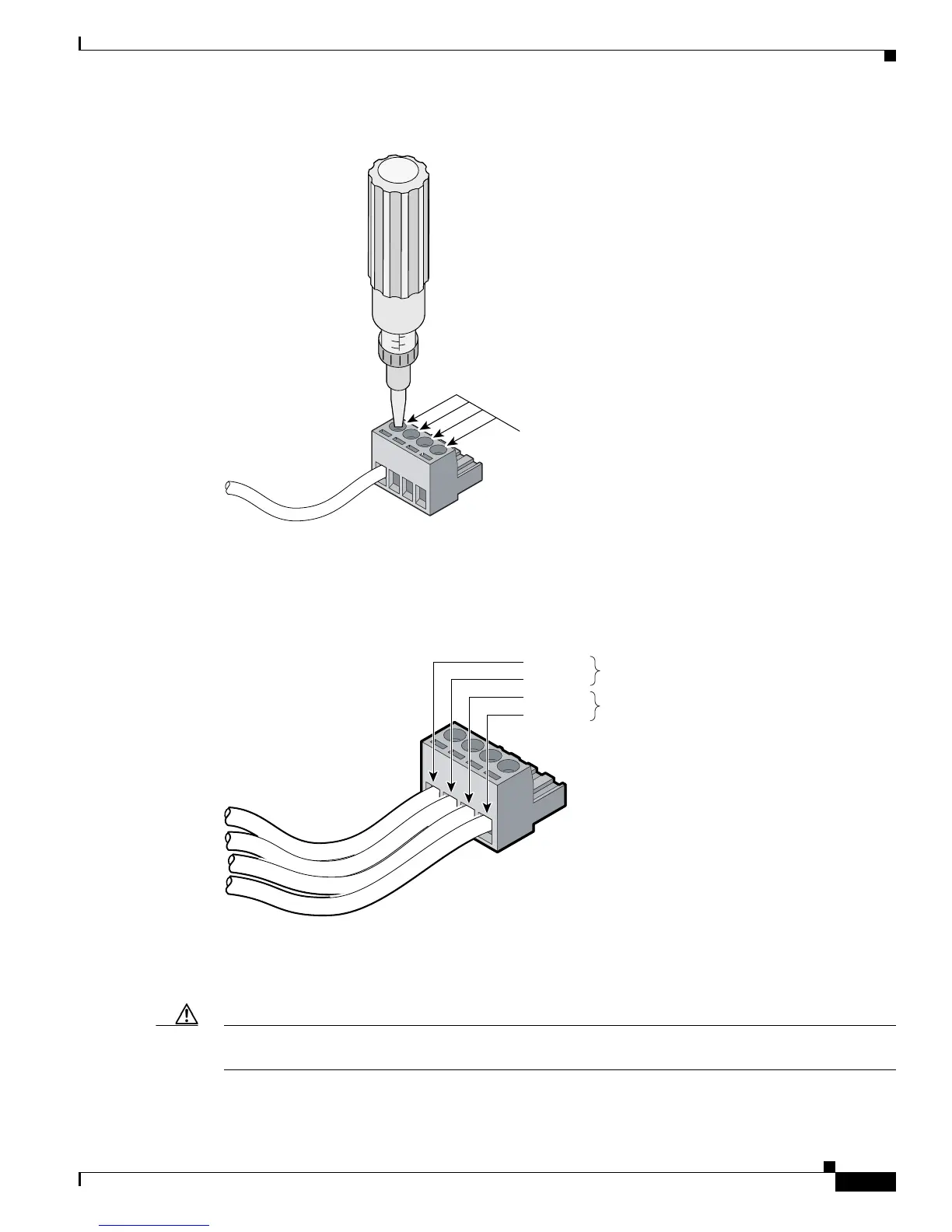

Figure C-8 Torquing the Terminal-Block Captive Screws
Step 7 Repeat Steps 4 and 5 for the remaining three DC-input power source wires. Figure C-9 shows the
completed wiring of a terminal block plug.
Figure C-9 Completed Wiring of Terminal Block Plug
Step 8
Insert the terminal block plug in the terminal block header on the switch rear panel, as shown
in Figure C-10.
Caution Secure the wires coming in from the terminal block so that they cannot be disturbed by casual contact.
For example, use tie wraps to secure the wires to the rack.
60533
Torque to 4.5 lbf-in. (72 ozf-in.)
60534
Return
Negative
Return
Negative
Feed A
Feed B
To Next Page
