Appendix C Connecting to DC Power
Connecting to DC Power

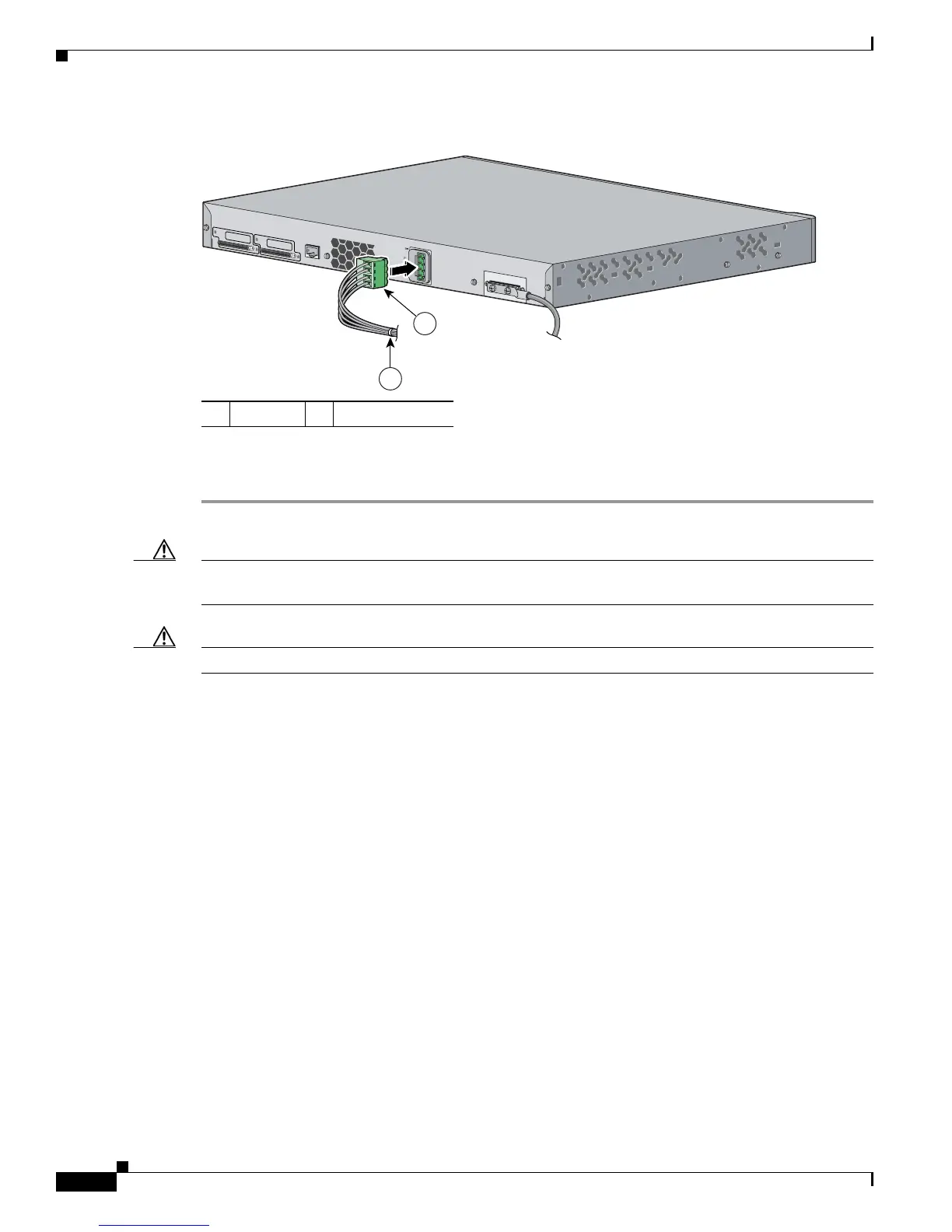

Figure C-10 Inserting the Terminal Block in the Block Header
Step 9 Remove the tape from the circuit-breaker switch handle, and move the circuit-breaker handle to the
on position.
Caution To comply with the intrabuilding lightning surge requirements, intrabuilding wiring must be shielded,
and the shield for the wiring must be grounded at both ends.
Caution The Catalyst 3750G-12S-SD switch is suitable only for intrabuilding or nonexposed wiring connections.
1 Tie wrap 2 Terminal block
