Chapter 2 Switch Installation
Connecting StackWise Cable to StackWise Ports
Note Always use a Cisco-approved StackWise cable to connect the switches.

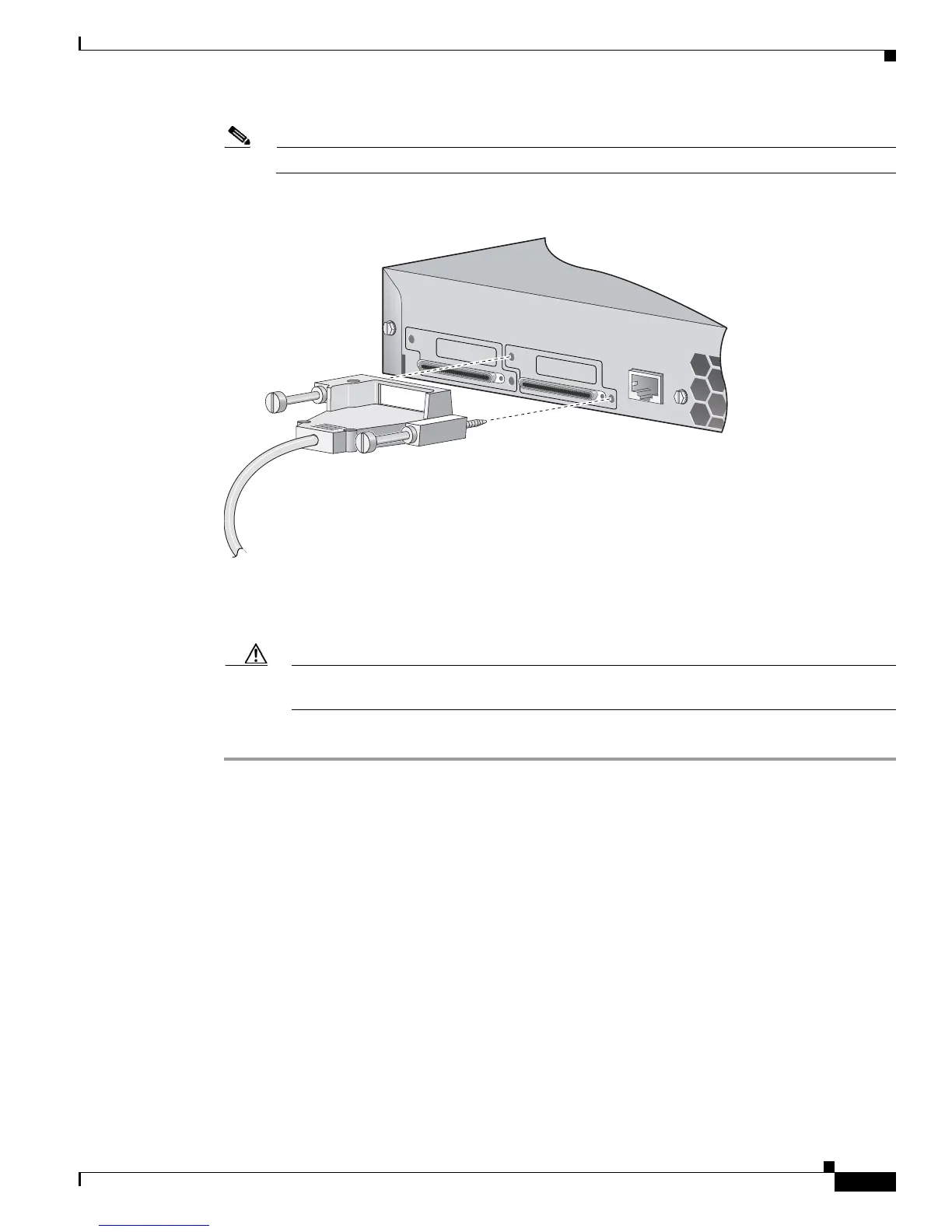

Figure 2-44 Inserting the StackWise Cable in a StackWise Port
Step 3
Use the window in the StackWise cable to align the connector correctly. Secure the screws tightly.
Step 4 Insert the other end of the cable into the connector of the other switch, and secure the screws tightly.
Caution Removing and installing the StackWise cable can shorten its useful life. Do not remove and
insert the cable more often than is absolutely necessary.
Replace the dust covers on the connectors to protect them from dust when you are not using them.
When you need to remove the StackWise cable from the connector, make sure to fully unscrew the
screws before removing the connector. Make sure that you also remove the correct screws from the
StackWise port.
CONSOLE
STACK 1
STACK 2
132362
To Next Page
