Catalyst 3750 Switch Software Configuration Guide
OL-8550-02
Chapter 13 Configuring VLANs
Configuring VMPS

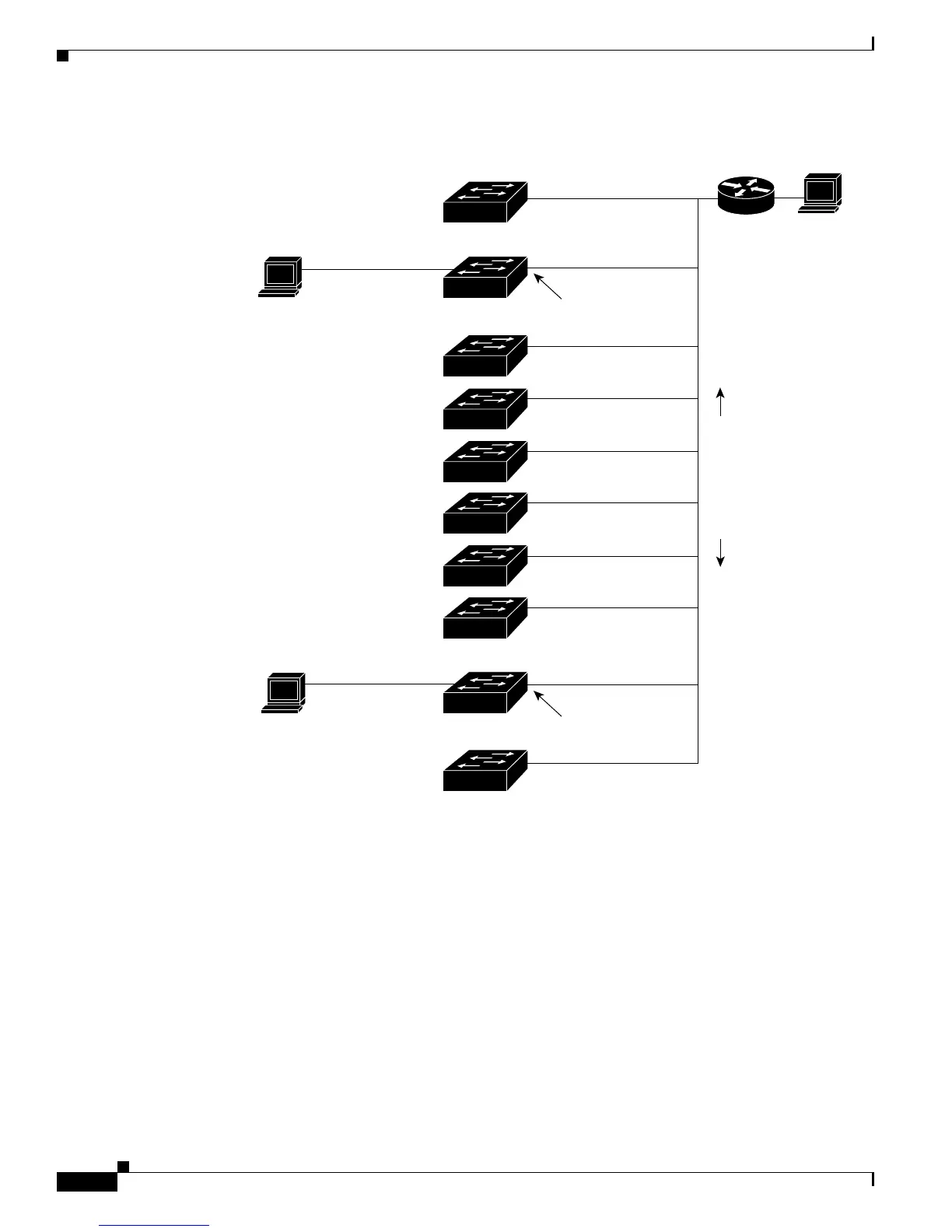

Figure 13-5 Dynamic Port VLAN Membership Configuration
Primary VMPS
Server 1
Catalyst 6500 series
Secondary VMPS
Server 2
Catalyst 6500 series
Secondary VMPS
Server 3
172.20.26.150
172.20.26.151
Catalyst 6500 series switch A
172.20.26.152
Switch C
Ethernet segment
(Trunk link)
172.20.26.153
172.20.26.154
172.20.26.155
172.20.26.156
172.20.26.157
172.20.26.158
172.20.26.159
Client switch I
Client switch B
End
station 2
End
station 1
TFTP server
Dynamic-access port
Dynamic-access port
Switch J
Switch D
Switch E
Switch F
Switch G
Switch H
172.20.22.7
101363t
Trunk port
Trunk port
Router
