Chapter 34 Configuring EtherChannels and Link-State Tracking
Configuring Link-State Tracking

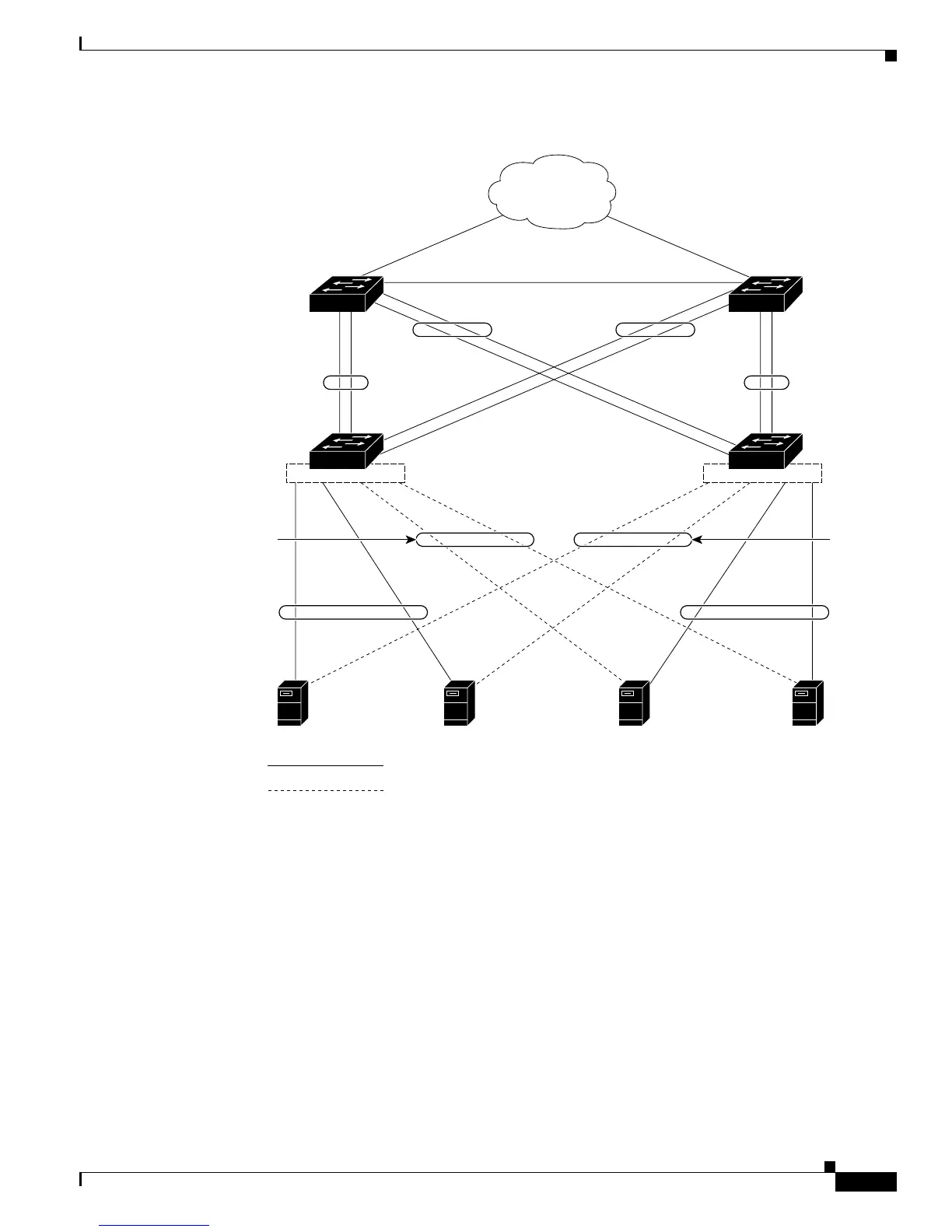

Figure 34-6 Typical Link-State Tracking Configuration
Configuring Link-State Tracking
These sections describe how to configure link-state tracking ports:
• Default Link-State Tracking Configuration, page 34-26
• Link-State Tracking Configuration Guidelines, page 34-26
• Configuring Link-State Tracking, page 34-26
• Displaying Link-State Tracking Status, page 34-27
