Cisco 3750G - Catalyst Integrated Wireless LAN Controller User Manual

17-9
Catalyst 3750 Switch Software Configuration Guide
OL-8550-02
Chapter 17 Configuring IEEE 802.1Q and Layer 2 Protocol Tunneling
Understanding Layer 2 Protocol Tunneling

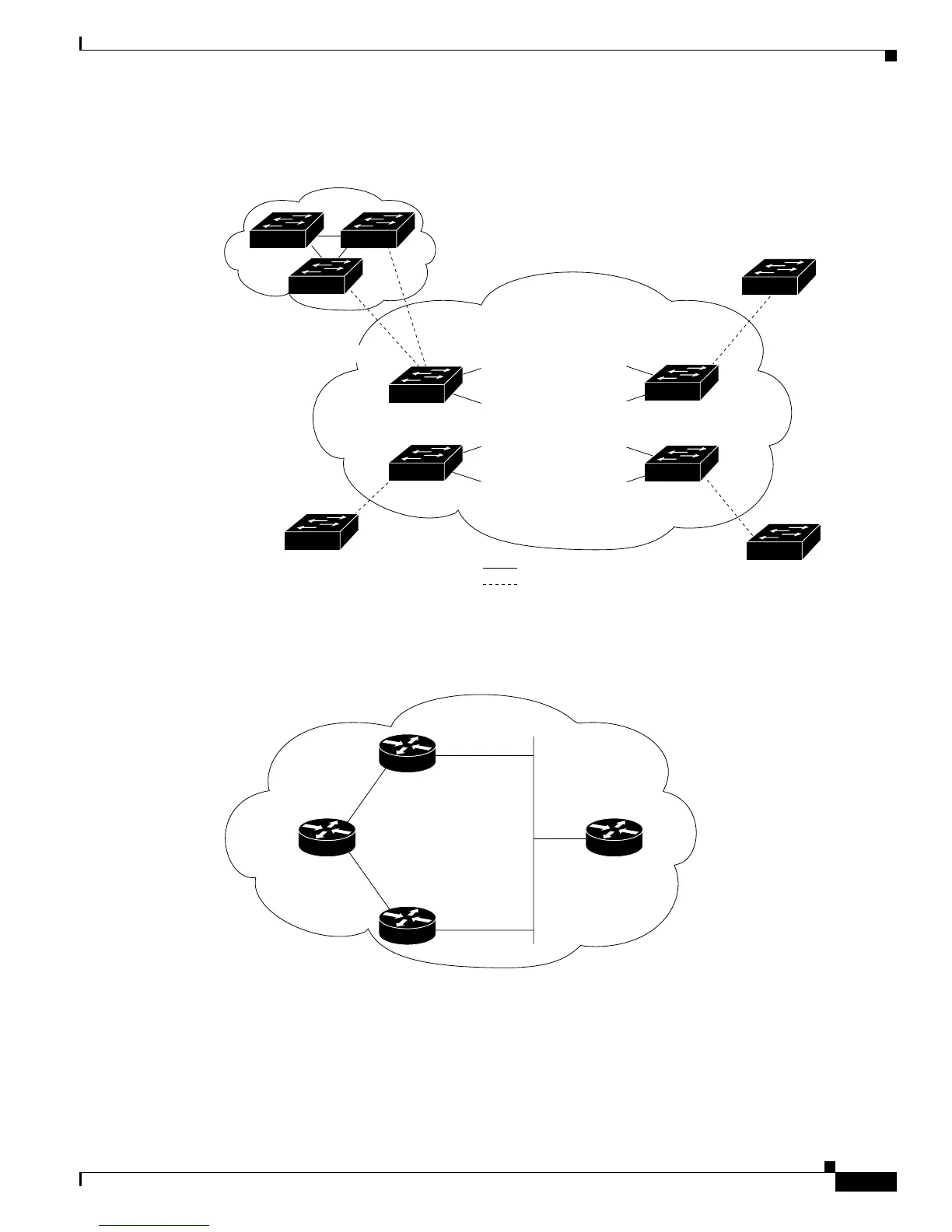

Figure 17-4 Layer 2 Protocol Tunneling
Figure 17-5 Layer 2 Network Topology without Proper Convergence
In an SP network, you can use Layer 2 protocol tunneling to enhance the creation of EtherChannels by
emulating a point-to-point network topology. When you enable protocol tunneling (PAgP or LACP) on
the SP switch, remote customer switches receive the PDUs and can negotiate the automatic creation of
EtherChannels.
Customer X Site 2
VLANs 1 to 100
Customer Y Site 2
VLANs 1 to 200
Customer Y Site 1
VLANs 1 to 200
Customer X Site 1
VLANs 1 to 100
VLAN 30
Trunk
ports
Switch A
Trunk
ports
VLAN 30
VLAN 40
Service
provider
101822
Trunk
Asymmetric link
VLAN 30
VLAN 40
Trunk
ports
Switch B
Switch C
Switch D
Trunk
ports
101821
Customer X
virtual network
VLANs 1 to 100

Cisco 3750G - Catalyst Integrated Wireless LAN Controller Specifications

General

Switching Capacity	32 Gbps
RAM	128 MB
Flash Memory	32 MB
Power Device	Internal power supply
Ports	48 x 10/100/1000 + 4 x SFP
Performance	38.7 Mpps
Wireless LAN Controller Capacity	50
Stacking	Yes
Features	VLAN support, QoS
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Humidity	10% to 85% non-condensing
Power over Ethernet (PoE)	Yes (optional)
