Cisco 4221 ISR User Manual

6-16
Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Overview of the SSD Carrier Card NIM (NIM-SSD)
Install SSD Drives into the NIM Carrier Card
To insert one or two SSD drives into the carrier NIM:
Note Prior to installing the NIM-SSD card, power off the device using the hw-module subslot slot / subslot
stop command in EXEC mode.
Step 1 On the NIM-SSD, loosen the captive screws retaining the SSD card slot cover (Figure 6-10).

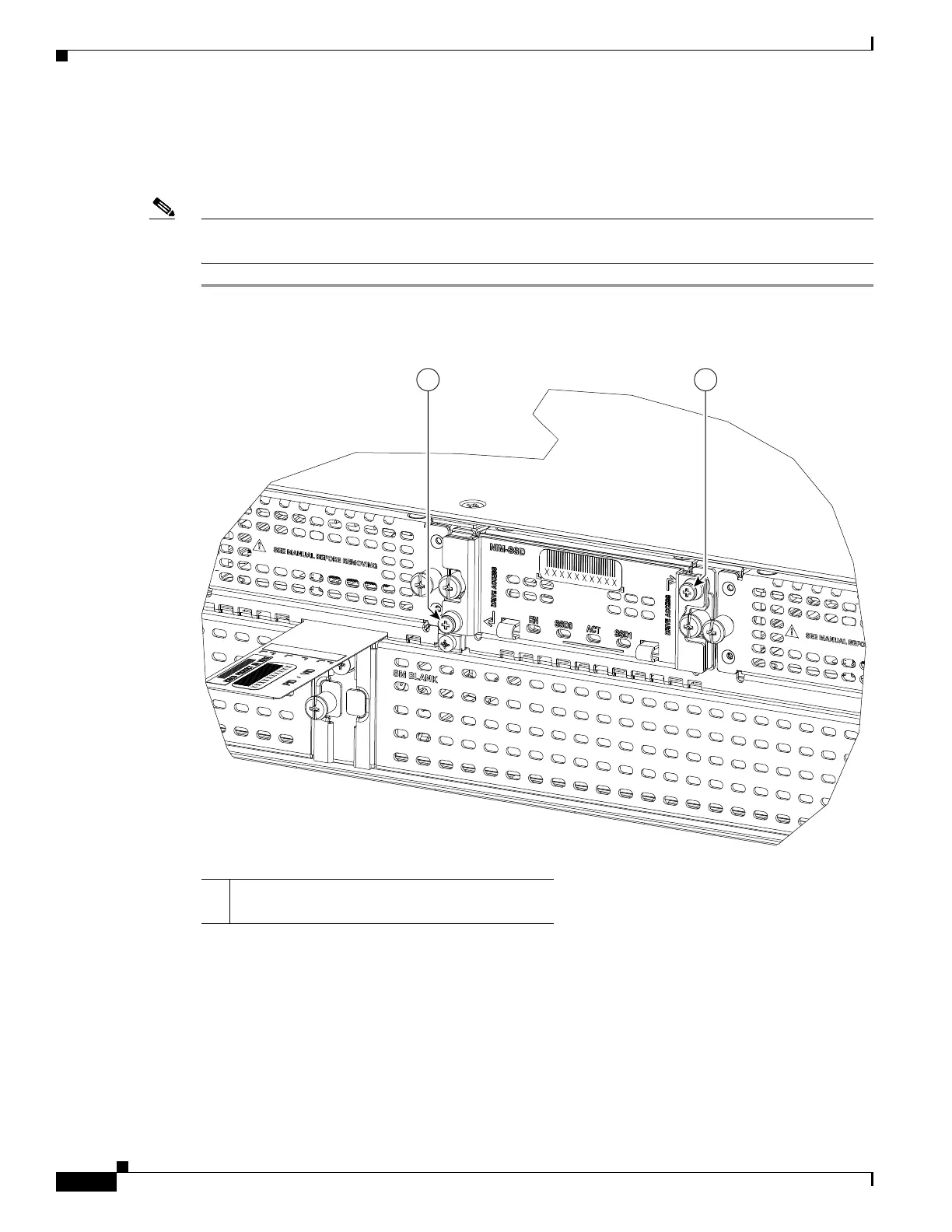

Figure 6-10 Opening the SSD Slot Cover
Step 2 Rotate the SSD card slot cover down, exposing the slots that hold the SSDs as shown in Figure 6-11.
11
347342
1 Captive screws on the SSD slot cover attaching
the SSD Drive to the NIM Carrier Card

Cisco 4221 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	2
LAN Ports	2
RAM	4 GB
Flash Memory	4 GB
Product Type	Router
Total Number of Ports	4
Number of Network (RJ-45) Ports	4
Number of Total Expansion Slots	3
Expansion Slot Type	NIM, ISC
Number of NIM Slots	2
Number of ISC Slots	1
Manageable	Yes
Power Supply	Internal
Redundant Power Supply	No
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Temperature	32°F to 104°F (0°C to 40°C)
Height	1.75 in
Encryption Algorithm	AES, 3DES
Dimensions (W x D x H)	1.75 x 13.5 x 1.73 inches
Operating Humidity	5 to 95% (noncondensing)
