Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views
For detailed information on LEDs, see the “LED Indicators” section on page 1-27.
Platform Summary

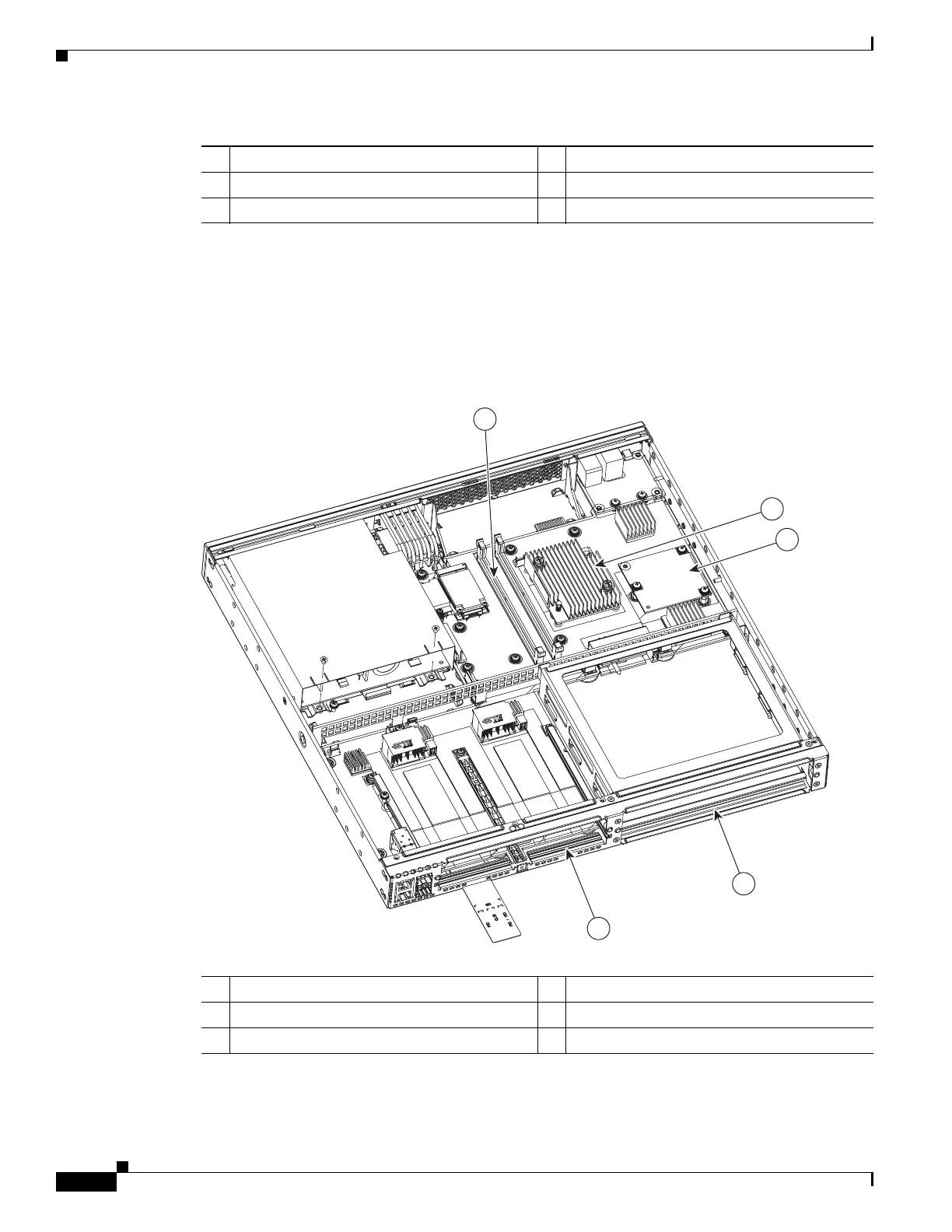

Figure 1-16 shows the internal view of the Cisco 4431 ISR with parts and module locations.
Figure 1-16 Platform Summary of Cisco 4331 ISR Chassis
1 Double-wide NIM 2 NIMs
3 Removable module slot divider 4 SM-X slot
5 Ground connection
1 DIMMs 2 CPU
3 ISC slot 4 SM-X slot
5 NIM slot
1
2
3
4
5
391946

Cisco 4221 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	2
LAN Ports	2
RAM	4 GB
Flash Memory	4 GB
Product Type	Router
Total Number of Ports	4
Number of Network (RJ-45) Ports	4
Number of Total Expansion Slots	3
Expansion Slot Type	NIM, ISC
Number of NIM Slots	2
Number of ISC Slots	1
Manageable	Yes
Power Supply	Internal
Redundant Power Supply	No
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Temperature	32°F to 104°F (0°C to 40°C)
Height	1.75 in
Encryption Algorithm	AES, 3DES
Dimensions (W x D x H)	1.75 x 13.5 x 1.73 inches
Operating Humidity	5 to 95% (noncondensing)
