Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Install and Remove an SSD mSATA Storage Device
Install the SSD mSATA Storage Device
To install a SSD mSATA storage device:
Step 1 Read the “Safety Warnings” section on page 6-2 and disconnect the power supply before you replace any
module.
Step 2 Remove the chassis cover. For instructions on removing the chassis cover, see “Remove and Replace the
Chassis Cover” section on page 6-4.
Step 3 Place the SSD mSATA storage device on the SSD mSATA connector and align the device’s contact edge
with the corresponding socket in the connector.
Step 4 Press the device downward into the connector until it is level with the surface of the connector.
Step 5 While holding the device down, screw the device into place (see Figure 6-49).

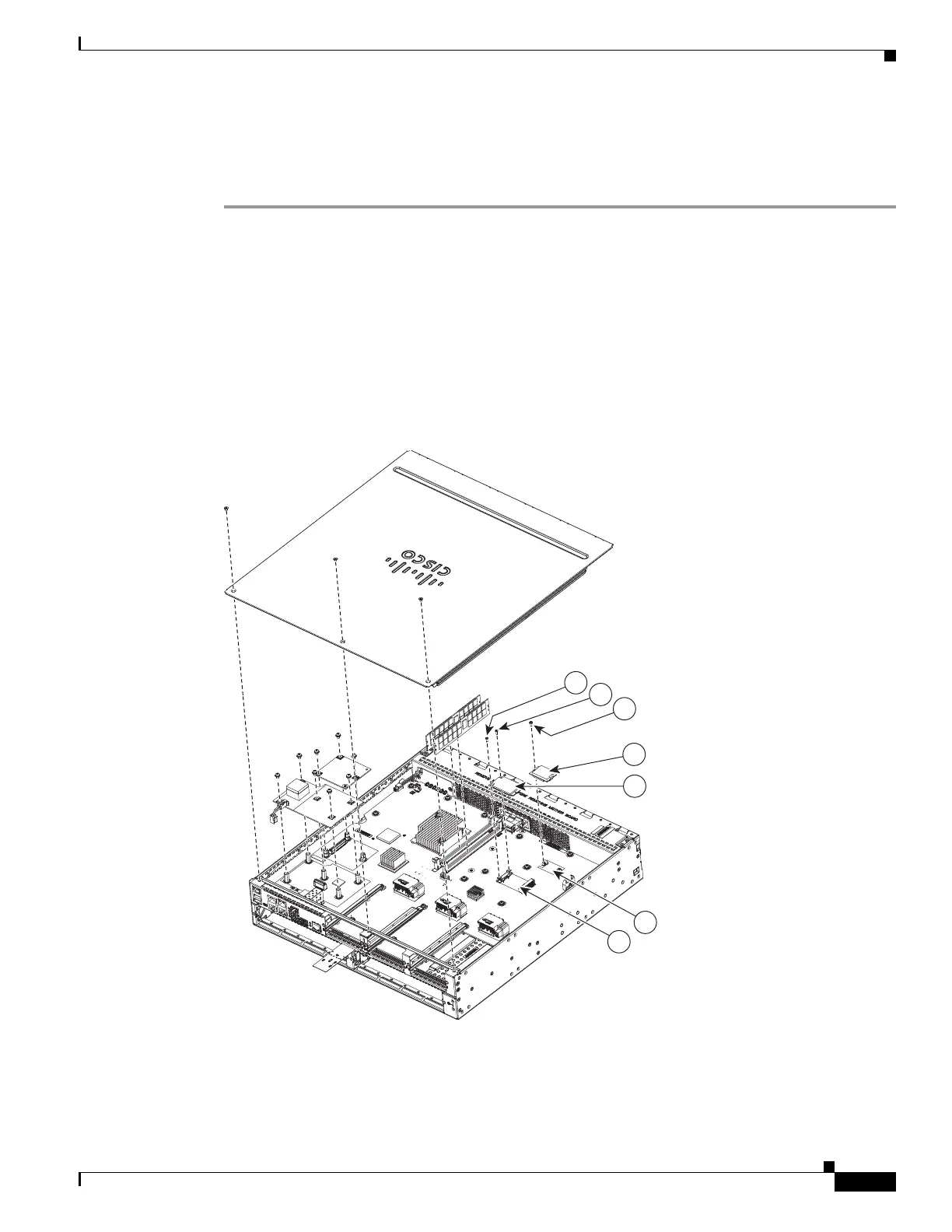

Figure 6-49 Flash Memory Card and SSD mSATA Storage Device Locations
391828
3
4
5
6
1
1
2

Cisco 4221 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	2
LAN Ports	2
RAM	4 GB
Flash Memory	4 GB
Product Type	Router
Total Number of Ports	4
Number of Network (RJ-45) Ports	4
Number of Total Expansion Slots	3
Expansion Slot Type	NIM, ISC
Number of NIM Slots	2
Number of ISC Slots	1
Manageable	Yes
Power Supply	Internal
Redundant Power Supply	No
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Temperature	32°F to 104°F (0°C to 40°C)
Height	1.75 in
Encryption Algorithm	AES, 3DES
Dimensions (W x D x H)	1.75 x 13.5 x 1.73 inches
Operating Humidity	5 to 95% (noncondensing)
