Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views

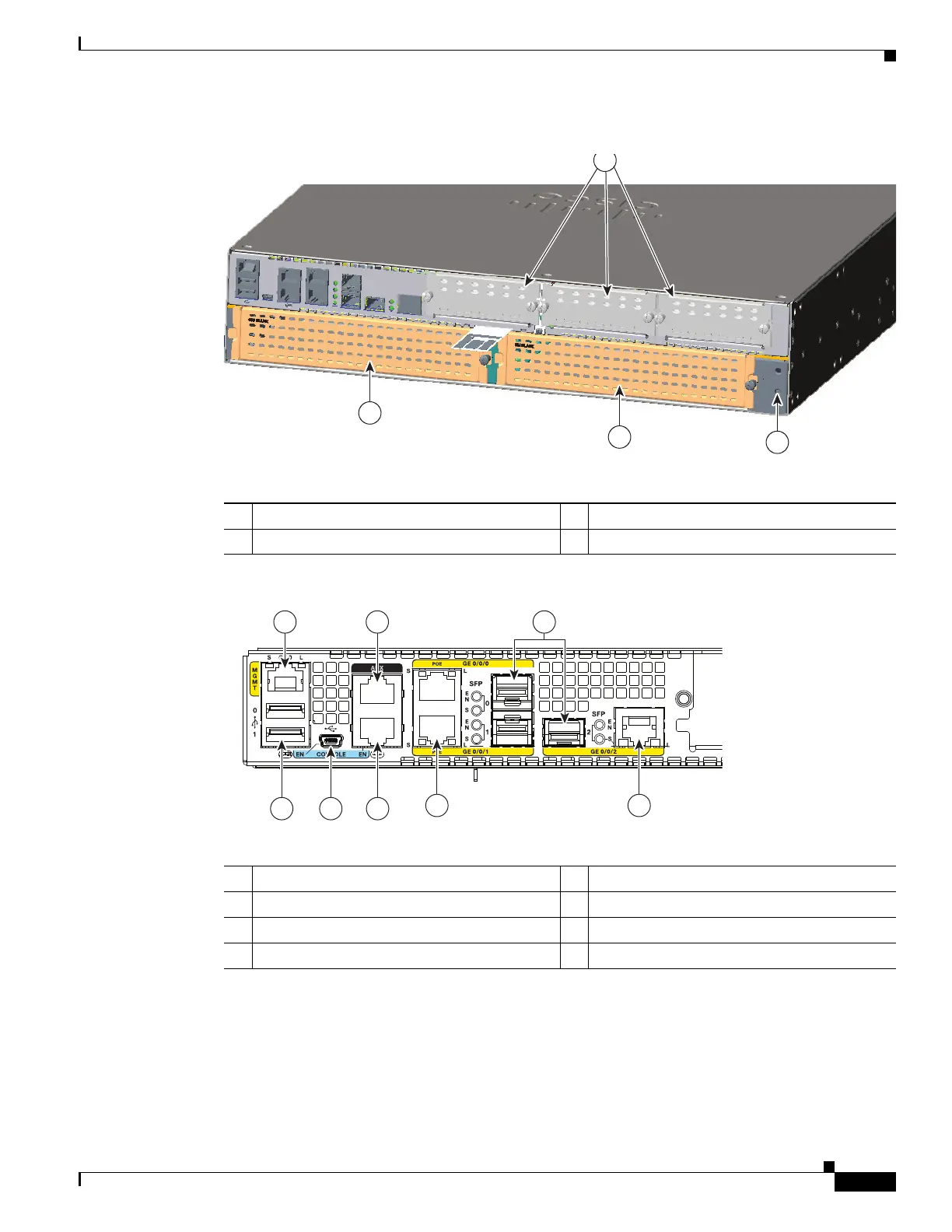

Figure 1-10 Back Panel Ports, Slots, and Serial Number on Cisco 4351 ISR
Figure 1-11 Ports on Cisco 4351 ISR
1 Enhanced Service Module (SM-X) slot 2 Enhanced Service Module (SM-X) slot
3 Ground connection 4 NIM slots
1
2
3
4
1 GE management port 2 USB Type A port
3 USB Type B mini port 4 Auxiliary port
5 Console port 6 RJ-45 port (GE 0/0/1)
7 SFP port (GE 0/0/0) 8 RJ-45 port (GE/0/0/2)
391467
1
2
3
5
6
8
4
7

Cisco 4221 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	2
LAN Ports	2
RAM	4 GB
Flash Memory	4 GB
Product Type	Router
Total Number of Ports	4
Number of Network (RJ-45) Ports	4
Number of Total Expansion Slots	3
Expansion Slot Type	NIM, ISC
Number of NIM Slots	2
Number of ISC Slots	1
Manageable	Yes
Power Supply	Internal
Redundant Power Supply	No
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Temperature	32°F to 104°F (0°C to 40°C)
Height	1.75 in
Encryption Algorithm	AES, 3DES
Dimensions (W x D x H)	1.75 x 13.5 x 1.73 inches
Operating Humidity	5 to 95% (noncondensing)
