Cisco 5510 - ASA SSL / IPsec VPN Edition Hardware Installation Guide

3-14
Cisco ASA 5500 Series Hardware Installation Guide
78-17374-01
Chapter 3 ASA 5510, ASA 5520, ASA 5540, and ASA 5550
Installing the Chassis
e. SSM
– Connect one RJ-45 connector to the management port on the SSM, as shown in Figure 3-15.
– Connect the other end of the RJ-45 cable to your network devices.
Note SSMs are optional, this connection is necessary only if you have installed an SSM on the
adaptive security appliance.

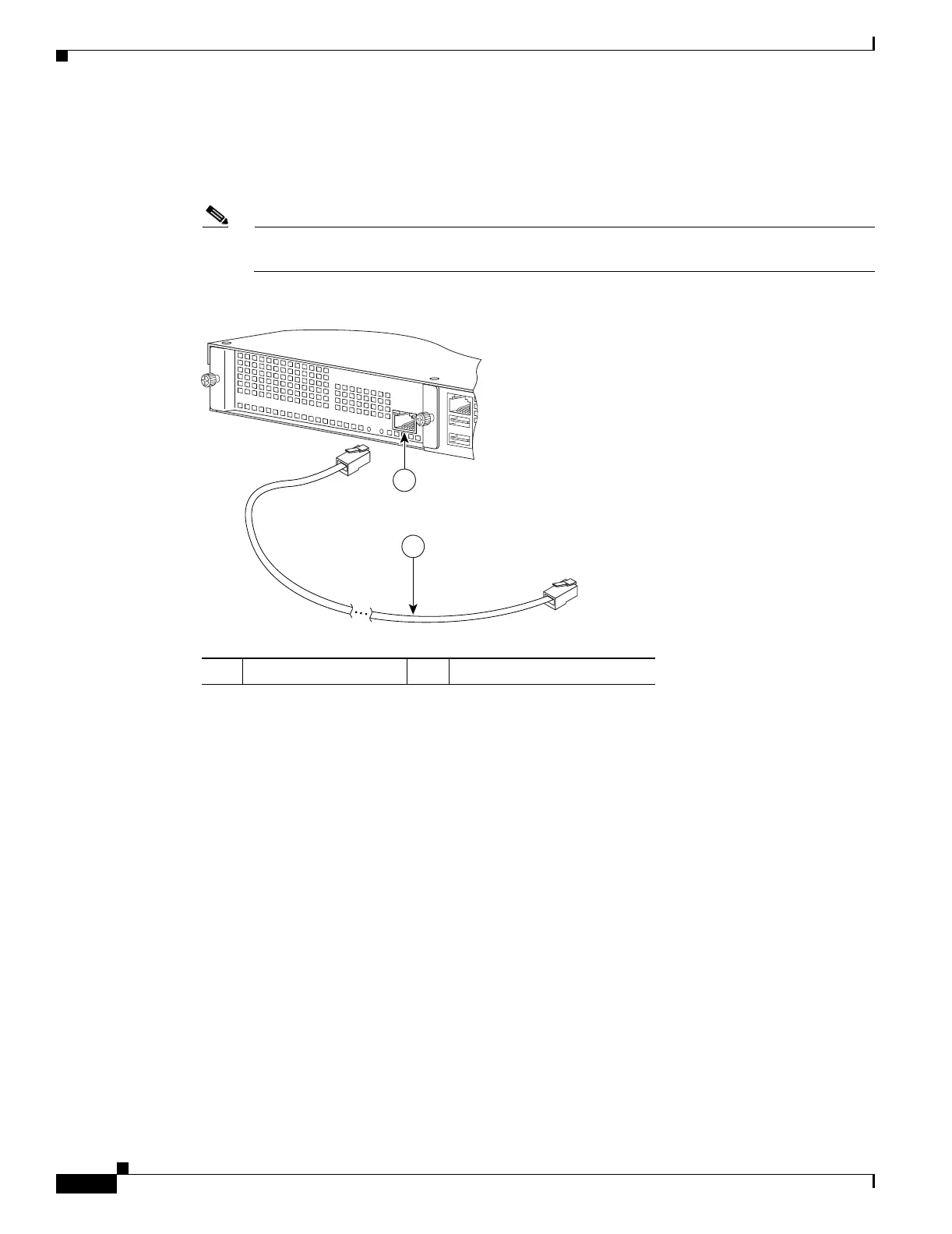

Figure 3-15 Connecting to the Management Port
1 SSM management port 2 RJ-45 to RJ-45 cable
143149
USB1
MGMT
USB2
MGMT
USB2
POWER
STATUS
USB1
2
LINK?ACT
SPEED
1
