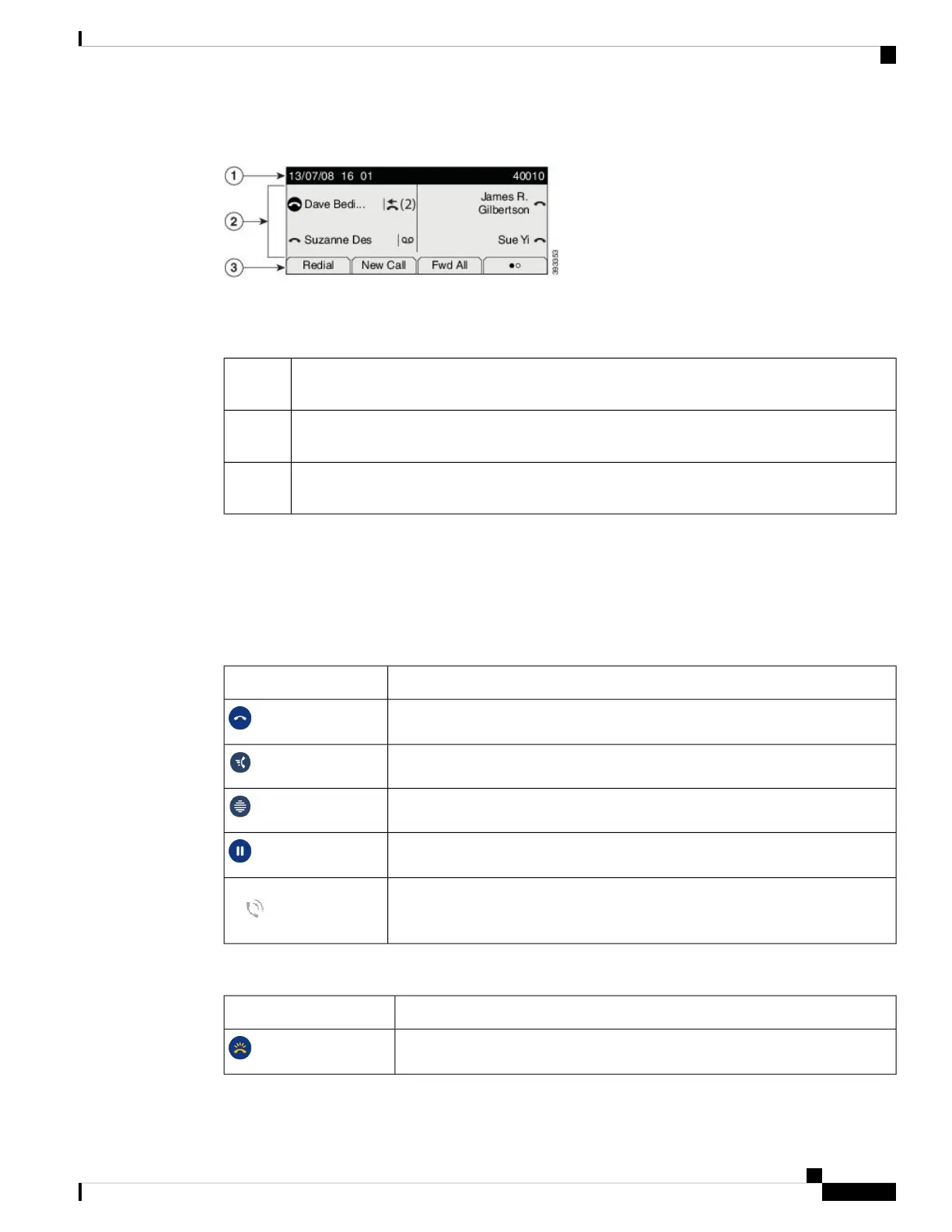

Figure 4: Cisco IP Phone 7800 Screen
The following table describes the Cisco IP Phone screen components.
Table 14: Cisco IP Phone Screen Information
At the top of the screen is the header row. The header row displays the phone number, current
date and time, as well a number of icons. The icons display when features are active.
1
The middle of the phone screen displays the information associated with the line and feature
buttons on the phone.
2
The bottom row of the screen contains the softkey labels. Each label indicates the action for the
softkey button below the screen.
3
Phone Icons
Your phone screen displays many icons. This section gives images of the common icons
Icons are in color or grayscale, depending on the screen.
Lines
DescriptionIcon
Line/Directory Number
Speed dial
Intercom
Held call
Active call
Shared Lines
DescriptionIcon
Incoming call on shared line.
Your Phone
