Cisco 7975G Installation Guide

Network and Access Ports
The back of the Cisco Unified IP Phones includes these ports:
•
Network port: Labeled 10/100 SW on Cisco Unified IP Phones 7970G, 7965G, and 7945G, and
10/100/1000 SW on the Cisco Unified IP Phones 7975G and 7971G-GE.
•
Access port: Labeled 10/100 PC on Cisco Unified IP Phones 7970G, 7965G, and 7945G, and 10/100/1000
SW on the Cisco Unified IP Phones 7975G and 7971G-GE.
Each port supports 10/100 or 10/100/1000 Mbps half- or full-duplex connections to external devices.
•
For the Cisco Unified IP Phones 7975G, 7971G-GE, and 7970G, you can use either Category 3 or 5
cabling for 10 Mbps connections, but you must use Category 5 for 100 and 1000 Mbps connections (the
Cisco Unified IP Phone 7970G does not support 1000 Mbps).
•
For the Cisco Unified IP Phones 7965G and 7945G, you can use either Category 3, 5, 5e, or 6 cabling
for 10 Mbps connections, but you must use Category 5, 5e, or 6 for 100 Mbps connections.
Use the SW network port to connect the phone to the network. You must use a straight-through cable on this
port. The phone can also obtain inline power from a switch over this connection. See Cisco Unified IP Phone
Power for details.
Use the PC access port to connect a network device, such as a computer, to the phone. You must use a
straight-through cable on this port.
Handset
The handset is designed especially for use with a Cisco Unified IP Phone. The handset includes a light strip
to indicate incoming calls and voice messages.
To connect a handset to the Cisco Unified IP Phones 7975G, 7965G, or 7945G, plug the cable into the handset
and into the Handset port on the back of the phone.
To connect a handset to the Cisco Unified IP Phones 7971G-GE or 7970G, remove the hookswitch clip from
the cradle area, as shown in the following figure. Then plug the cable into the handset and into the Handset
port on the back of the phone.

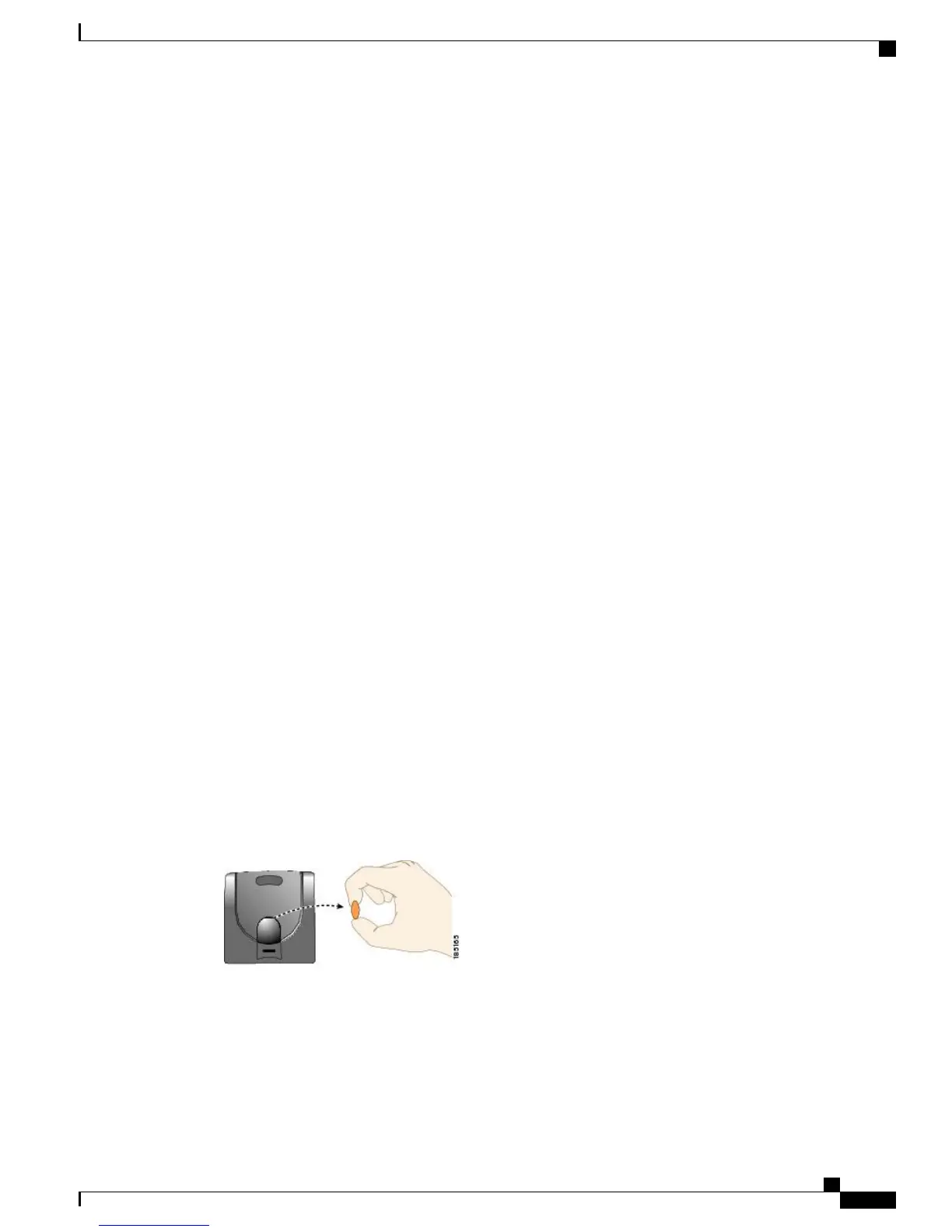

Figure 1: Removing the hookswitch clip
Speakerphone
By default, the speakerphone is enabled on the Cisco Unified IP Phone.
Cisco Unified IP Phone 7975G, 7971G-GE, 7970G, 7965G, and 7945G Administration Guide for Cisco Unified
Communications Manager 9.0 (SCCP and SIP)
3
Cisco Unified IP Phones Installation
Network and Access Ports

Cisco 7975G Specifications

General

Handset type	Wired handset
Product type	IP Phone
Product color	Grey, Silver
Speakerphone	Yes
Voice codecs	G.711Mu, G.711a, G.722, G.729A, iLBC
Number of melodies	24
Aspect ratio	4:3
Display diagonal	5.6 \
Display resolution	320 x 240 pixels
Lines quantity	8 lines
Phonebook capacity	- entries
Number of VoIP accounts	-
Front camera	No
Security algorithms	128-bit AES
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	DHCP, TFTP
Volume control	Digital
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Number of handles included	1 pc(s)
AC adapter output voltage	48 V
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Certification	FCC

Weight and Dimensions

Depth	152.4 mm
Width	266.7 mm
Height	203.2 mm
Weight	1600 g
