Cisco AIR-AP1542I-*-K User Manual

1-8
Cisco Aironet 1540 Series Outdoor Access Point Hardware Installation Guide
Chapter 1 Overview
Network Deployment Examples
Wireless client access is supported; however, if bridging between tall buildings, the 2.4-GHz wireless
coverage area may be limited and possibly not suitable for direct wireless client access.

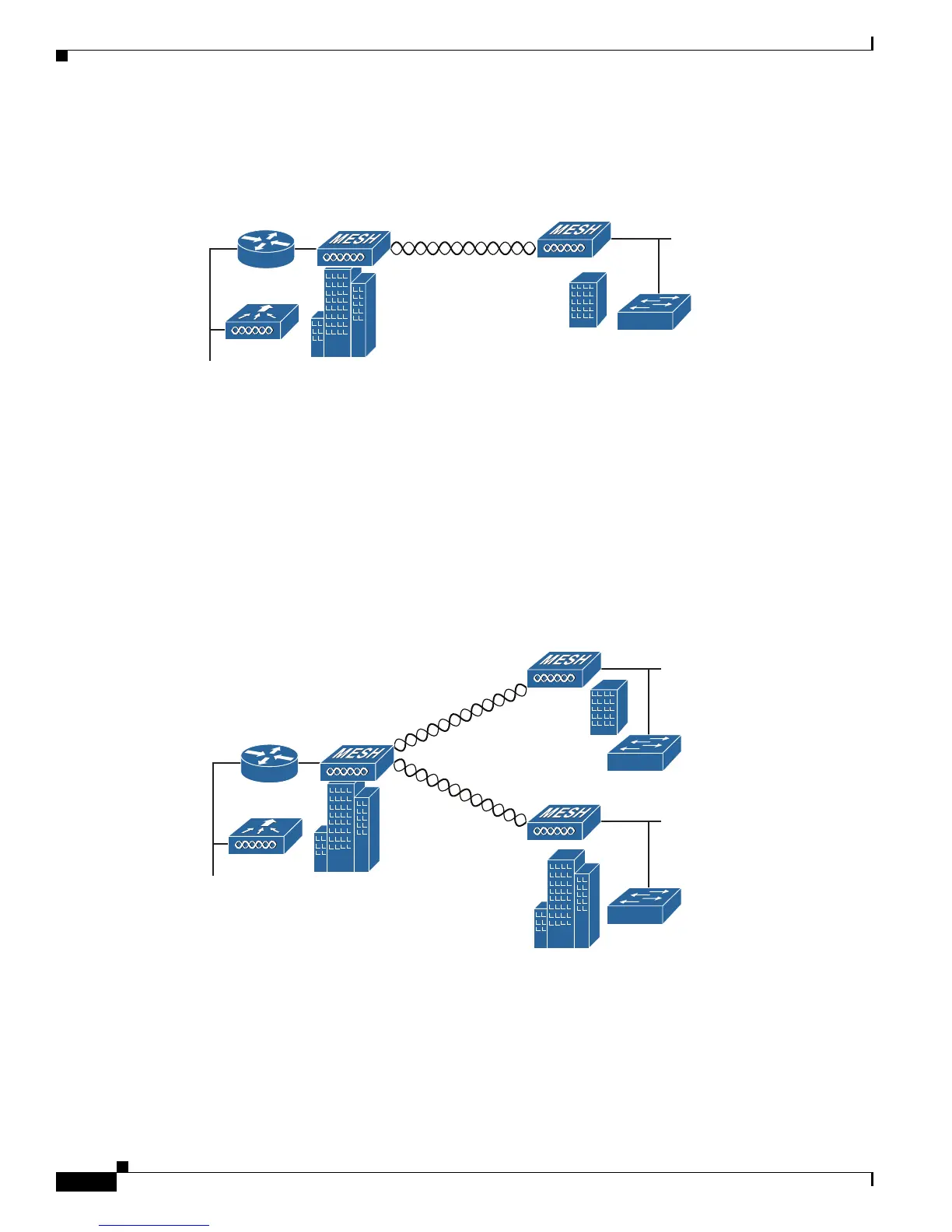

Figure 1-5 Access Point Point-to-Point Bridging Example
Point-to-Multipoint Bridging
The access points can be used as a RAP to connect multiple remote MAPs with their associated wired
networks. By default this capability is turned-off for all access points. To support Ethernet bridging, you
must enable bridging on the controller for each access point. Wireless client access can be provided over
the bridging link; however, if bridging between tall buildings, the 2.4-GHz wireless coverage area may
be limited and possibly not suitable for direct wireless client access.
Figure 1-6 illustrates an example
of access point-to-multipoint bridging.
Figure 1-6 Access Point to Multipoint Bridging Example
255495
(5 GHz)
255494
(5 GHz)
(5 GHz)

Cisco AIR-AP1542I-*-K Specifications

General

Model	AIR-AP1542I-*-K
Category	Wireless Access Point
Wireless Standards	802.11a/b/g/n/ac
Wi-Fi Generation	Wi-Fi 5
Frequency Bands	2.4 GHz, 5 GHz
Maximum Data Rate	1.3 Gbps
Data Transfer Rate (5 GHz)	867 Mbps
Antenna	Internal
Power over Ethernet	Yes
Mounting	Ceiling or wall mount
Weight	1.1 kg
Form Factor	Ceiling mount
Ethernet Ports	2 x Gigabit Ethernet
