Chapter 2 Functional Description
Cooling System Functional Description
In the Cisco ASR 9006 Router, a chassis air filter is located along the right side of the chassis, and is
accessible from the rear of the chassis (see Figure 2-74).
Figure 2-74 Cisco ASR 9006 Router Chassis Air Filter
In the Cisco ASR 9904 Router, the chassis air filter is located along the right side of the chassis, and is

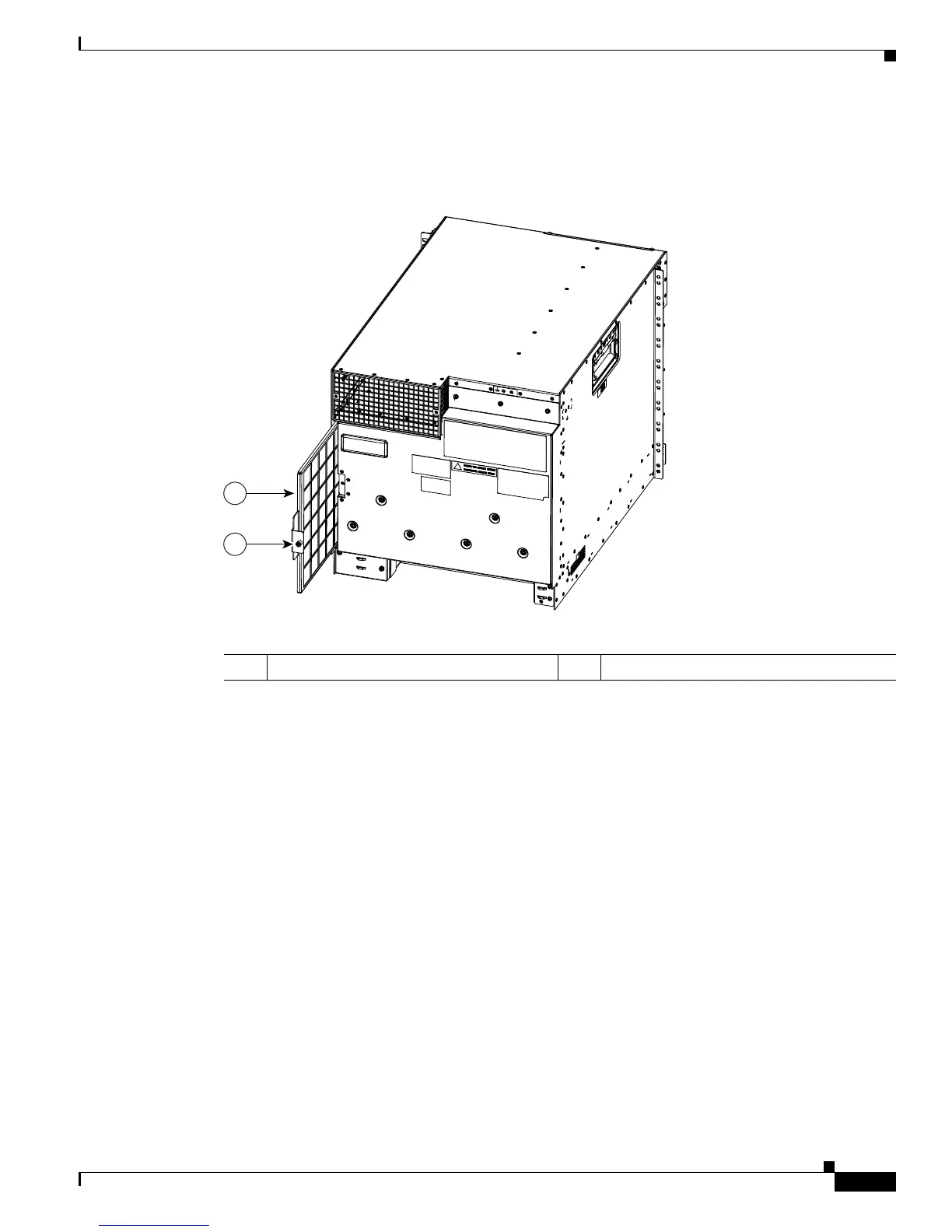

accessible from the rear of the chassis (see Figure 2-75).
1 Air filter 2 Thumb screw
243375
1
2
