Chapter 1 Overview and Physical Description
Rack-Mounting Considerations

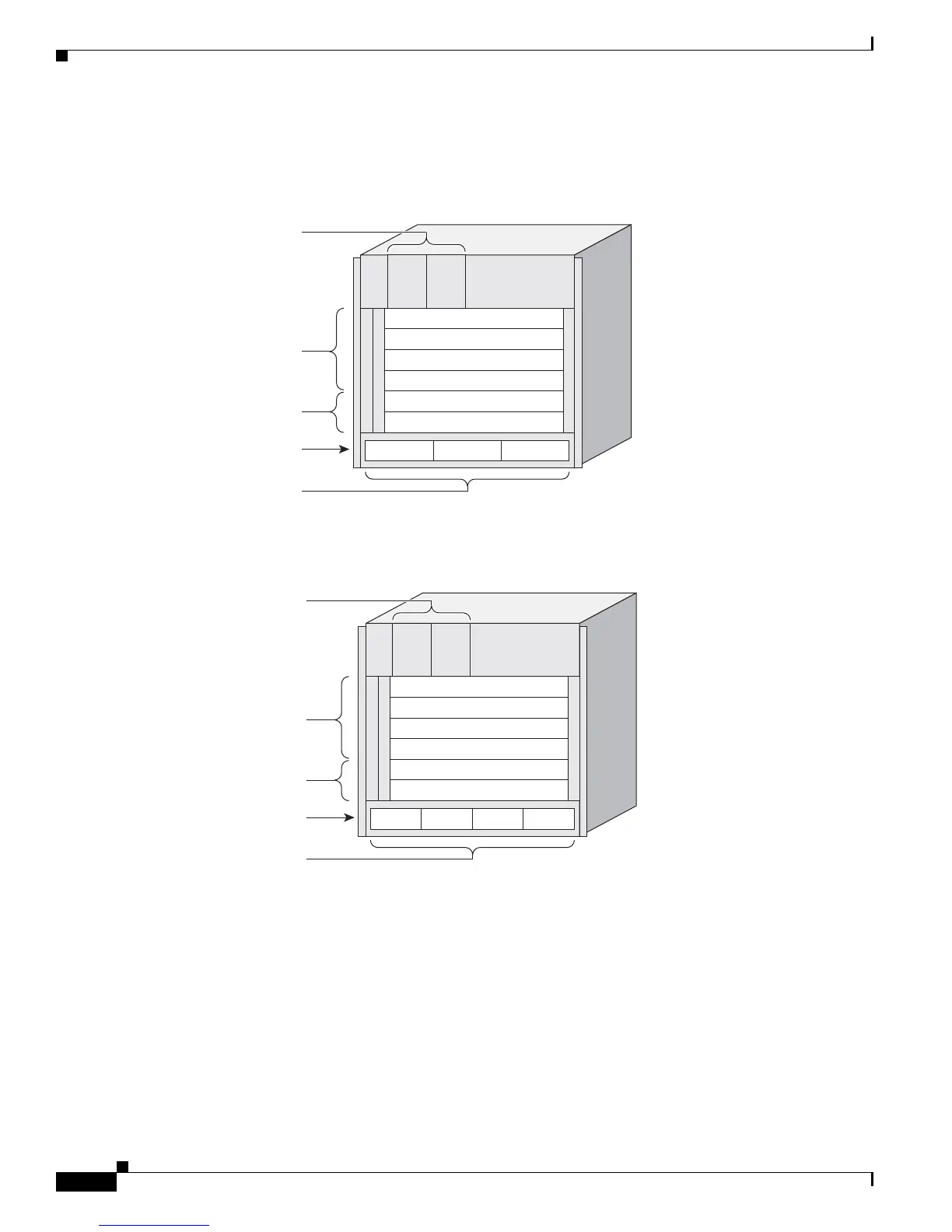

Figure 1-18 shows slot ID numbering for the Cisco ASR 9006 Router with the version 1 power tray.
Figure 1-19 shows slot ID numbering for the Cisco ASR 9006 Router with the version 2 power tray.
Figure 1-18 Cisco ASR 9006 Router Slot ID Numbering—Version 1 Power Tray
Figure 1-19 Cisco ASR 9006 Router Slot ID Numbering—Version 2 Power Tray
243377
Line card 3
FT0
M0 M1 M2
FT1
Line card 2
Line card 1
Line card 0
RSP1
RSP0
Slot 5
Slot 4
Slot 3
Slot 2
Slot 1
Slot 0
Power shelf
Power modules
Fan trays
RSP cards
Line cards
284273
Line card 3
FT0
M0 M1 M2 M3
FT1
Line card 2
Line card 1
Line card 0
RSP1
RSP0
Slot 5
Slot 4
Slot 3
Slot 2
Slot 1
Slot 0
Power shelf
Power modules
Fan trays
RSP cards
Line cards
