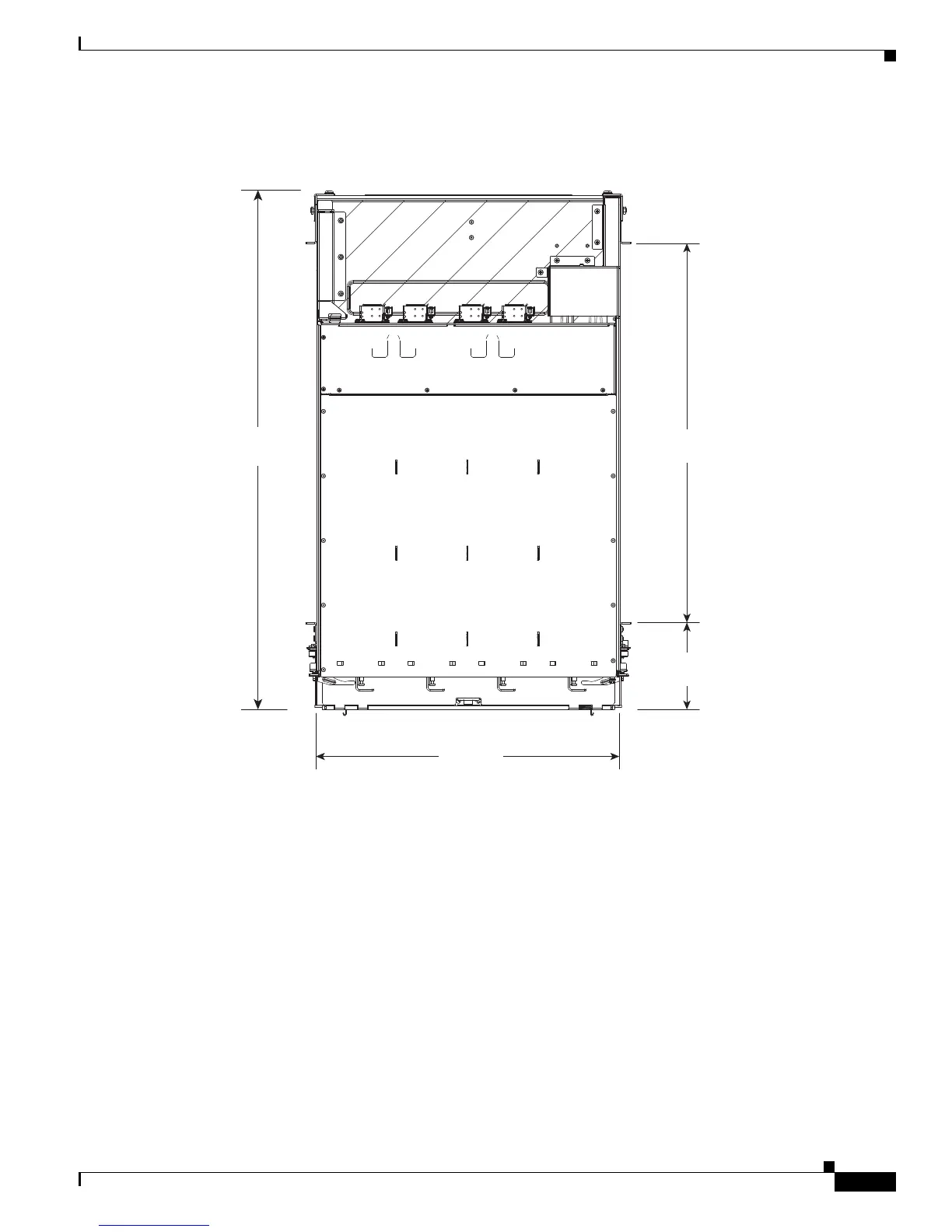

Figure 1-11 Cisco ASR 9922 Router Chassis Footprint Dimensions—Top Down View
343945
Rear of chassis
Front of chassis
5.05 in
(13.97 cm)
17.60 in
(44.70 cm)
30.11 in
(76.48 cm)
22 in
(55.88 cm)
