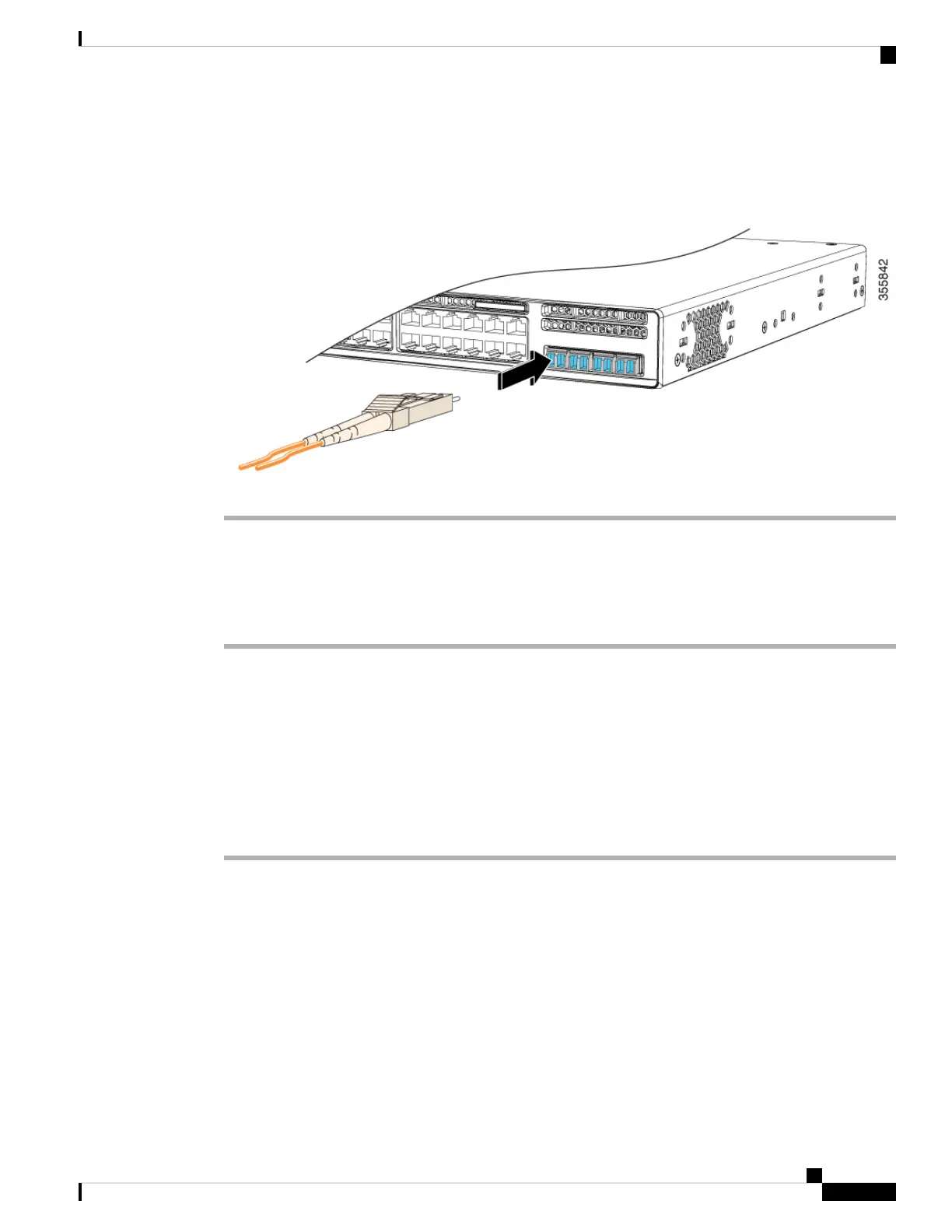

Figure 24: Installing an SFP/SFP+ Module in the Uplink Module Slot
Removing SFP/SFP+ Modules
Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Step 2 Disconnect the cable from the SFP/SFP+ module. For reattachment, note which cable connector plug is send
(TX) and which is receive (RX).
Step 3 Insert a dust plug into the optical ports of the SFP/SFP+ module to keep the optical interfaces clean.
Step 4 If the module has a bale-clasp latch, pull the bale out and down to eject the module. If you cannot use your
finger to open the latch, use a small, flat-blade screwdriver or other long, narrow instrument to open it.
Step 5 Grasp the SFP/SFP+ module, and carefully remove it from the slot.
Step 6 Place the SFP/SFP+ module in an antistatic bag or other protective environment.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
37
Installing a Network Module
Removing SFP/SFP+ Modules

Cisco C9200L-24P-4X Specifications

General

Model	C9200L-24P-4X
Device Type	Switch
Enclosure Type	Rack-mountable
Ports	24 x 10/100/1000 (PoE+)
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
PoE Budget	370W
Layer	Layer 3
Stacking Bandwidth	80 Gbps
RAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Uplink Interfaces	4 x 10 Gigabit Ethernet
MAC Address Table Size	16000 entries
Routing Protocol	OSPF, BGP, EIGRP, RIP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, SSH
Features	Energy Efficient Ethernet, DHCP snooping, QoS, VLAN support, ACLs
Compliant Standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x
Operating Temperature	0 to 45 °C
Operating Humidity	5% to 90% (non-condensing)
