Chapter 2 Installing and Starting the Switch
Connecting to the GBIC Module Ports

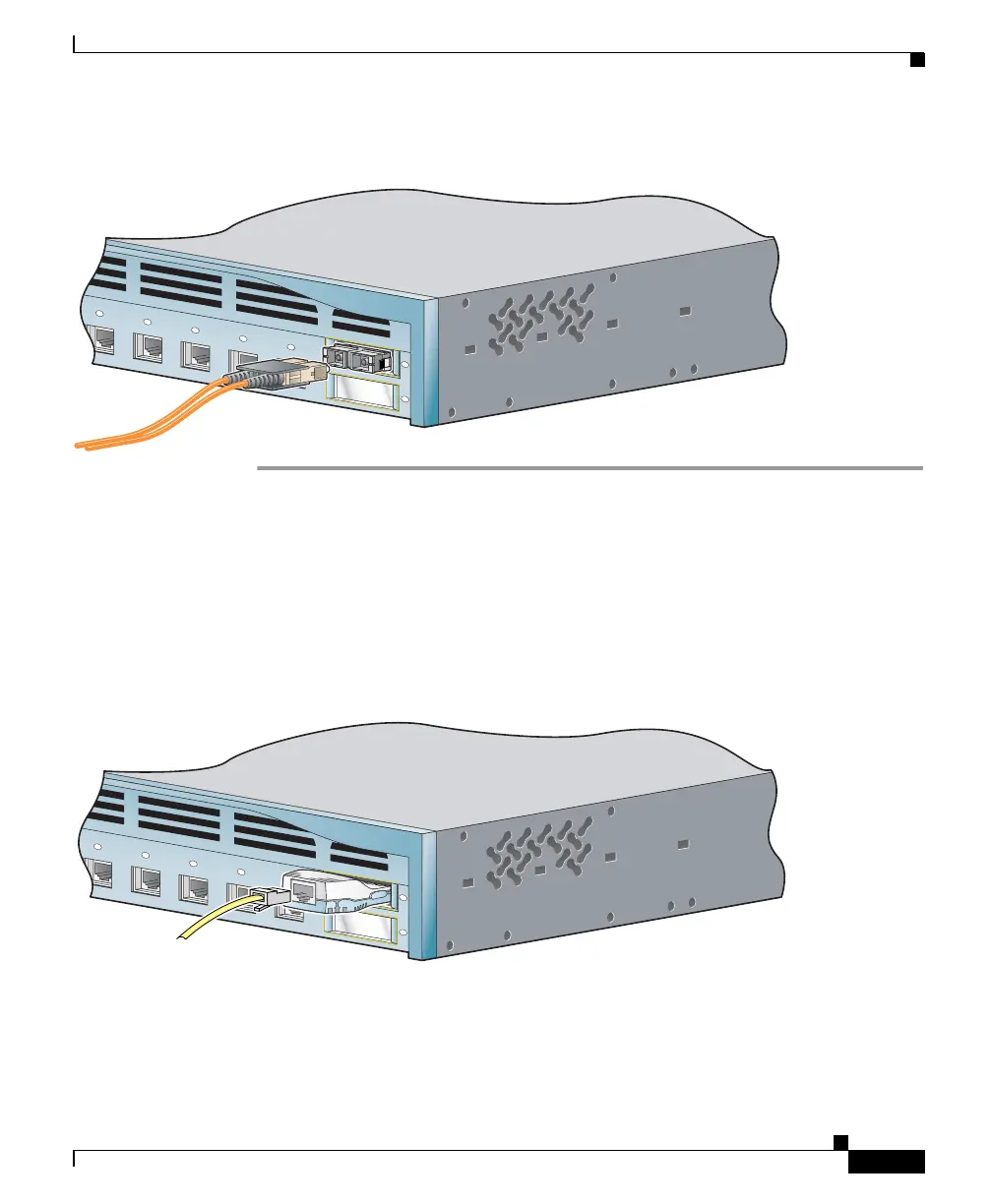

Figure 2-36 Connecting to a 1000BASE-X Module Port
Connecting to a 1000BASE-T GBIC Module Port
Connect the 1000BASE-T connector to the GBIC module port, as shown in
Figure 2-37.
Figure 2-37 Connecting to a 1000BASE-T Module Port
