Note Before you attach the brackets on the Catalyst 3550-24-FX switch, remove the
screws that are in the middle of the chassis. Attach the bracket by using the
supplied Phillips flat-head screws, as shown in Figure 2-11.

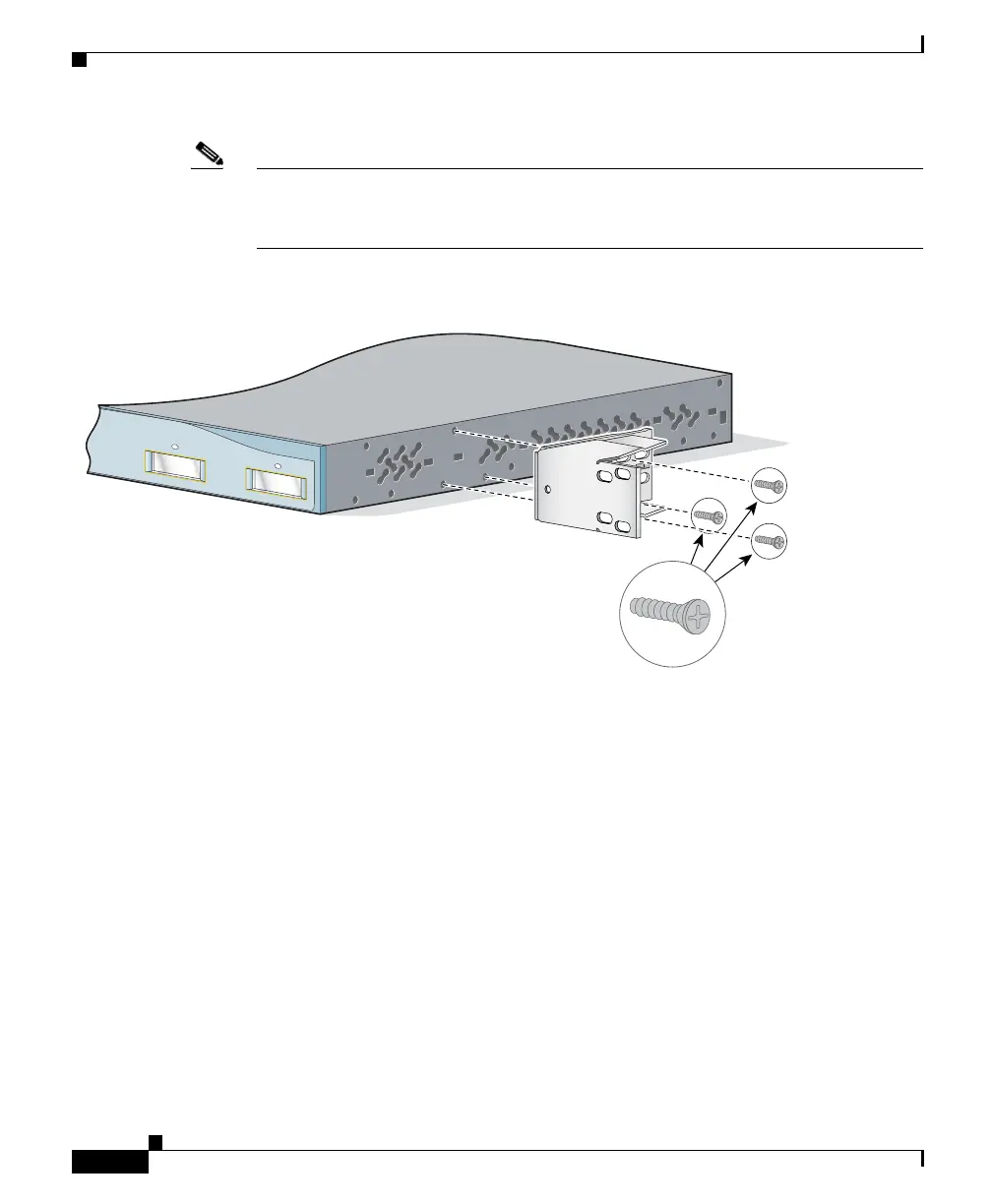

Figure 2-12 Attaching Brackets for 19- and 24-Inch Telco Racks
Mounting the Switch in a Rack
After the brackets are attached to the switch, use the four supplied number-12
Phillips machine screws to securely attach the brackets to the rack, as shown in
Figure 2-13 and Figure 2-14.
1
2
Catalyst 3550
SERIES
74037
Phillips
flat-head
screws
24" Configuration
