Table 4: System ID LED Indicator
DescriptionColor/State
The system needs attention.Blinking blue
Related Topics
LED Indicators, on page 8
ID LED on the Modular Port Card
The ID (blue beacon) LED can be provisioned by the operator to indicate that the modular port card needs
attention.
Table 5: ID LED Indicator
DescriptionColor/State
The modular port card needs attention.Blinking blue
SFP+ Port LEDs
Each port on the port card is associated with an LED that indicates status.

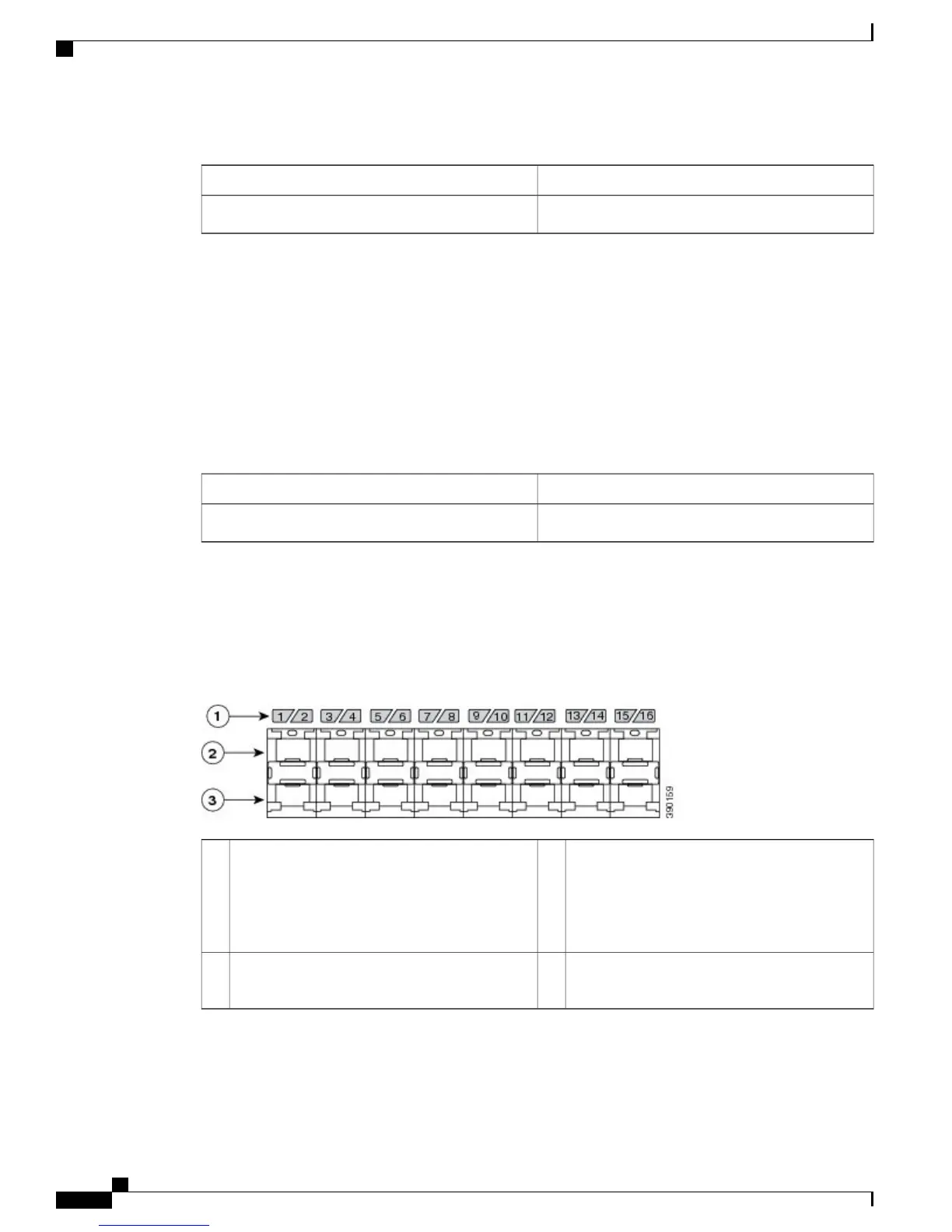

Figure 5: Numbering of Ports and LEDs on Fixed and Modular Port Cards
Even-numbered ports, left to right: 2, 4, 6, 8, 10,
12, 14, and 16
3LEDs: The first LED in each pair of LEDs
indicates the status of the upper (odd-numbered)
port below the LEDs, and the second LED in
each pair indicates the status of the lower
(even-numbered) port.
1
Odd-numbered ports, left to right: 1, 3, 5, 7, 9,
11, 13, and 15
2
Catalyst 6880-X Switch Hardware Installation Guide
10 OL-30827-02
