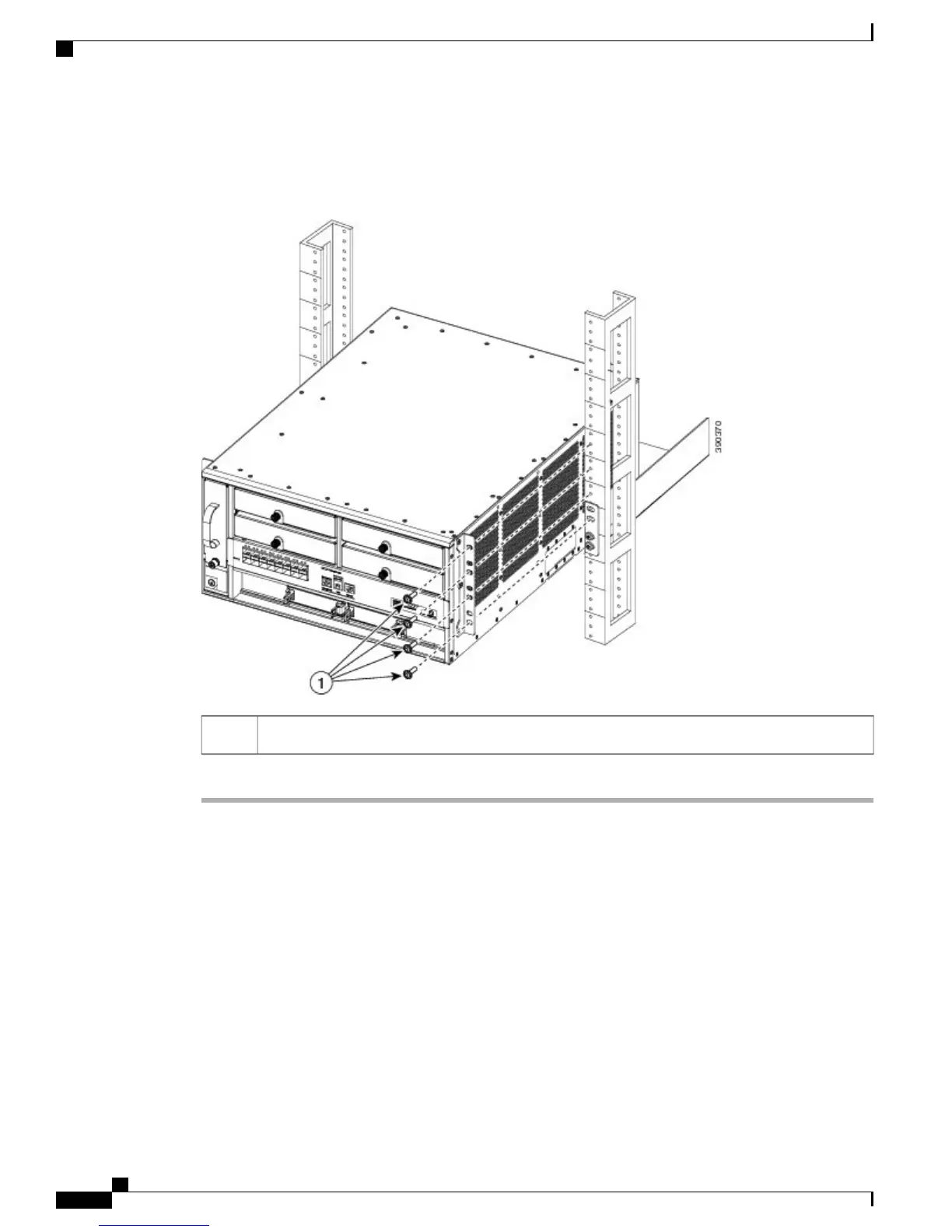

Figure 17: Installing the Cable Mount Guides
10-32 or 12-24 screws1
What to Do Next
After installing the chassis in its location, complete the installation process by following these procedures:
•
Connecting the chassis to system ground. See Establishing the System Ground, on page 45.
•
Installing and connecting the power supplies to source power. For information on how to install and
cable power supplies, see the Installing Power Supplies, on page 55.
•
Connecting to the switch console port. See Connecting the Switch Console Port, on page 47.
•
Connecting to the uplink ports.
•
Powering-up the chassis and verifying the installation. See Verifying Switch Chassis Installation, on
page 51.
Catalyst 6880-X Switch Hardware Installation Guide
44 OL-30827-02
Installing the Switch
