Procedure
Step 1
Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Step 2
Find the send (Tx) and receive (Rx) markings that identify the top of the SFP module.
On some SFP transceiver modules, the send and receive (Tx and Rx) markings might be shown by arrows
that show the direction of the connection.
Step 3
If the SFP transceiver module has a bale-clasp latch, move it to the open, unlocked position.
Step 4
Align the module in front of the slot opening, and push until you feel the connector snap into place.

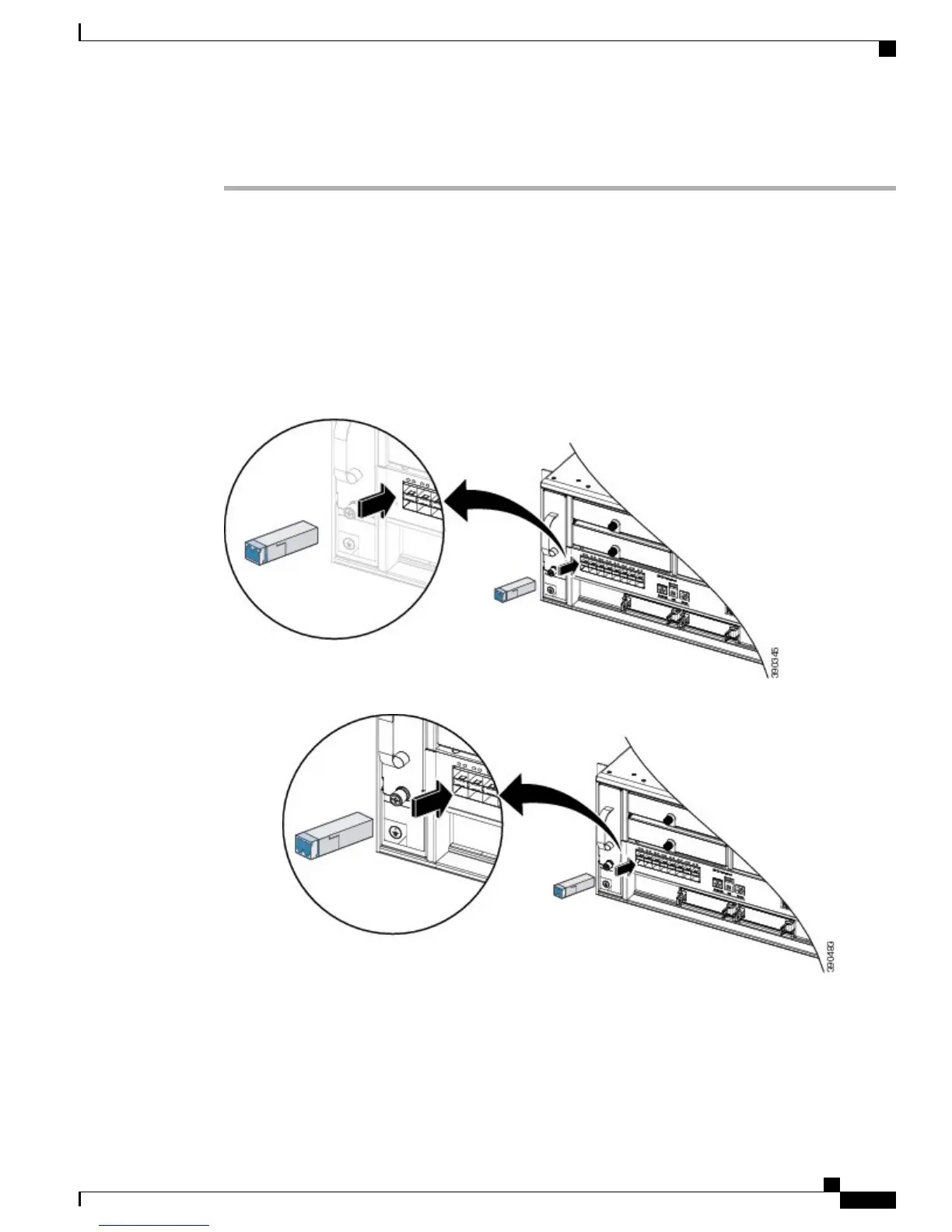

Figure 19: Installing an SFP Module in the SFP Transceiver Module Port
Step 5
If the module has a bale-clasp latch, close it to lock the SFP transceiver module in place.
If you are inserting the SFP transceiver module in the lower ports, you need to invert the module.Note
Step 6
Remove the SFP dust plugs and save.
Catalyst 6880-X Switch Hardware Installation Guide
OL-30827-02 49
Installing the Switch
Connecting the Uplink Ports
