Make sure there is adequate slack in the network interface cables to allow the cable guide to pivot
down far enough to access the fan tray. If there is insufficient slack in the cables, the cable guide will
not pivot far enough to give you access to the fan trays.
Note

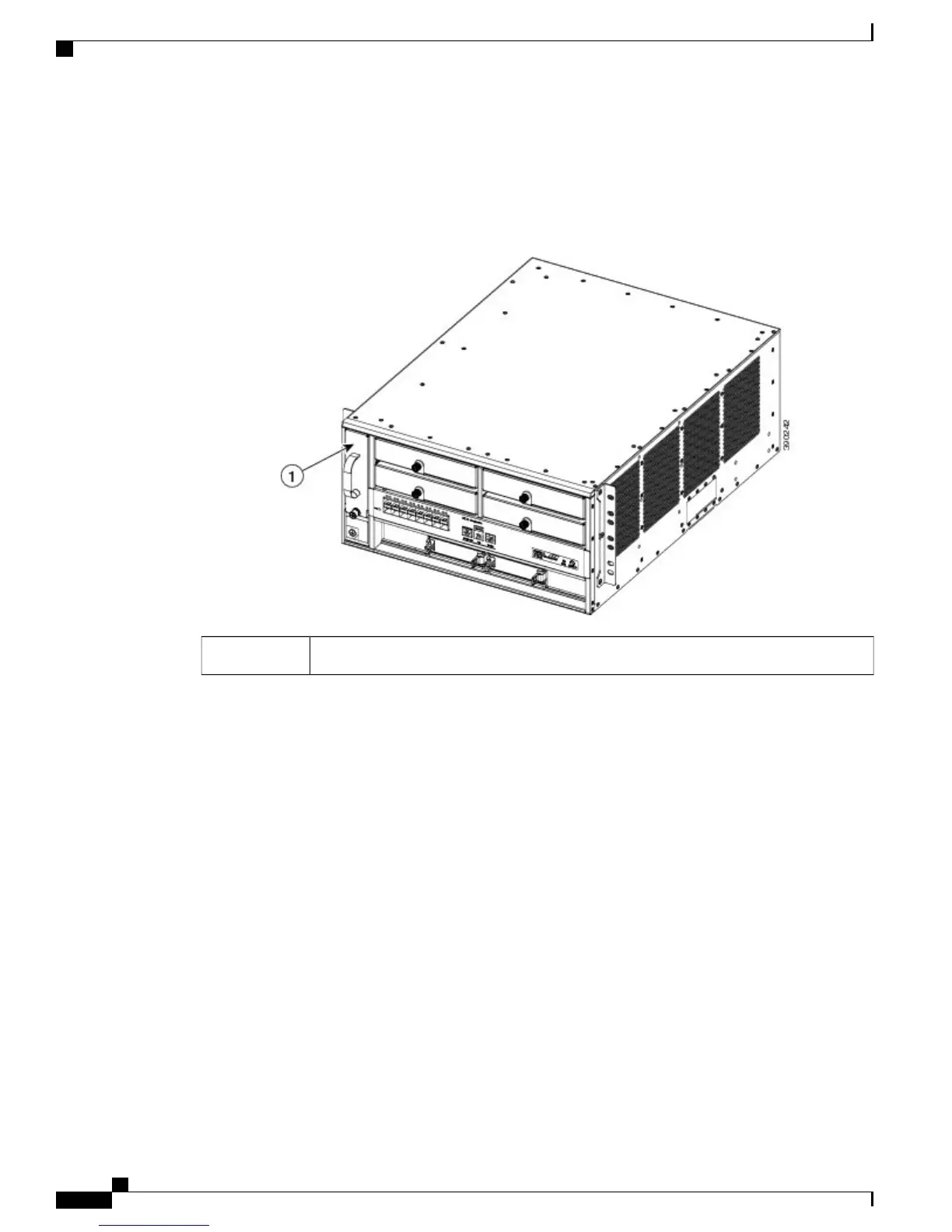

Figure 38: Fan Tray Location
Location of fan tray1
Step 2
Loosen the fan tray captive installation screw by turning it counterclockwise.
Step 3
Grasp the fan tray, and pull it outward; gently move side to side, if necessary, to unseat the fan tray power
connector from the backplane.
When removing the fan tray, keep your hands and fingers away from the spinning fan blades. Let
the fan blades stop completely before you remove the fan tray.
Caution
Catalyst 6880-X Switch Hardware Installation Guide
74 OL-30827-02
Replacing the Fan Tray
Removing the Fan Tray
