Cable Pinouts

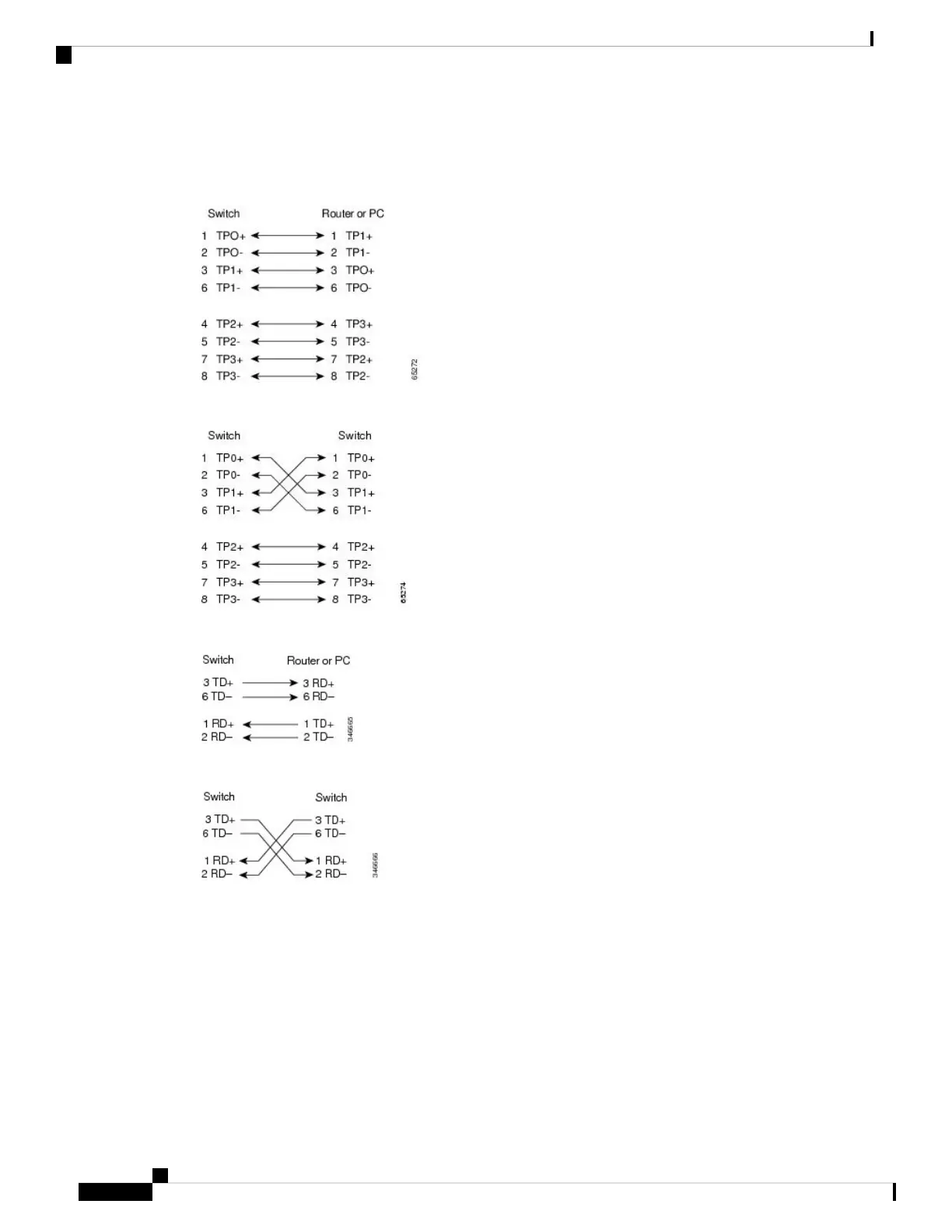

Figure 57: Four Twisted-Pair Straight-Through Cable Schematic
Figure 58: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 59: Two Twisted-Pair Straight-Through Cable Schematic
Figure 60: Two Twisted-Pair Crossover Cable Schematic
Identifying a Crossover Cable
To identify a crossover cable, compare the two modular ends of the cable. Hold the cable ends side-by-side,
with the tab at the back. The wire connected to the pin on the outside of the left plug should be a different
color from the wire connected to the pin on the inside of the right plug.
