CHAPTER 4
Installing a Power Supply
• Power Supply Modules Overview, on page 55
• Installation Guidelines, on page 57
• Installing or Replacing an AC Power Supply, on page 59
• Finding the Power Supply Module Serial Number, on page 60
Power Supply Modules Overview
The switch operates with either one or two active power supply modules. A switch that is part of a StackPower
stack operates with power supplied by other stack switches.
You can use two AC modules or one module and a blank cover. All power supply modules have internal fans.
All switches ship with a blank cover in the second power supply slot.
The following table describes the supported internal power supply modules.
Table 29: Power Supply Module Part Numbers and Descriptions
DescriptionPart Number
1100-W AC power supply modulePWR-C1-1100WAC
715-W AC power supply modulePWR-C1-715WAC
350-W AC power supply modulePWR-C1-350WAC
1100-W AC Platinum certified power supply modulePWR-C1-1100WAC-P
Blank coverPWR-C1-BLANK
For information on available PoE, PoE+, and UPOE and PoE requirements, see these sections the Power
Supply Modules, on page 15.
The 350-W and 715-W AC power supply modules are autoranging units that support input voltages between
100 and 240 VAC. The 1100-W power supply module is an autoranging unit that supports input voltages
between 115 and 240 VAC.
Each AC power supply module has a power cord for connection to an AC power outlet. The 1100-W and
715-W modules use a 16-AWG cord (only North America). All other modules use an 18-AWG cord.
The following illustrations show the power supply modules.

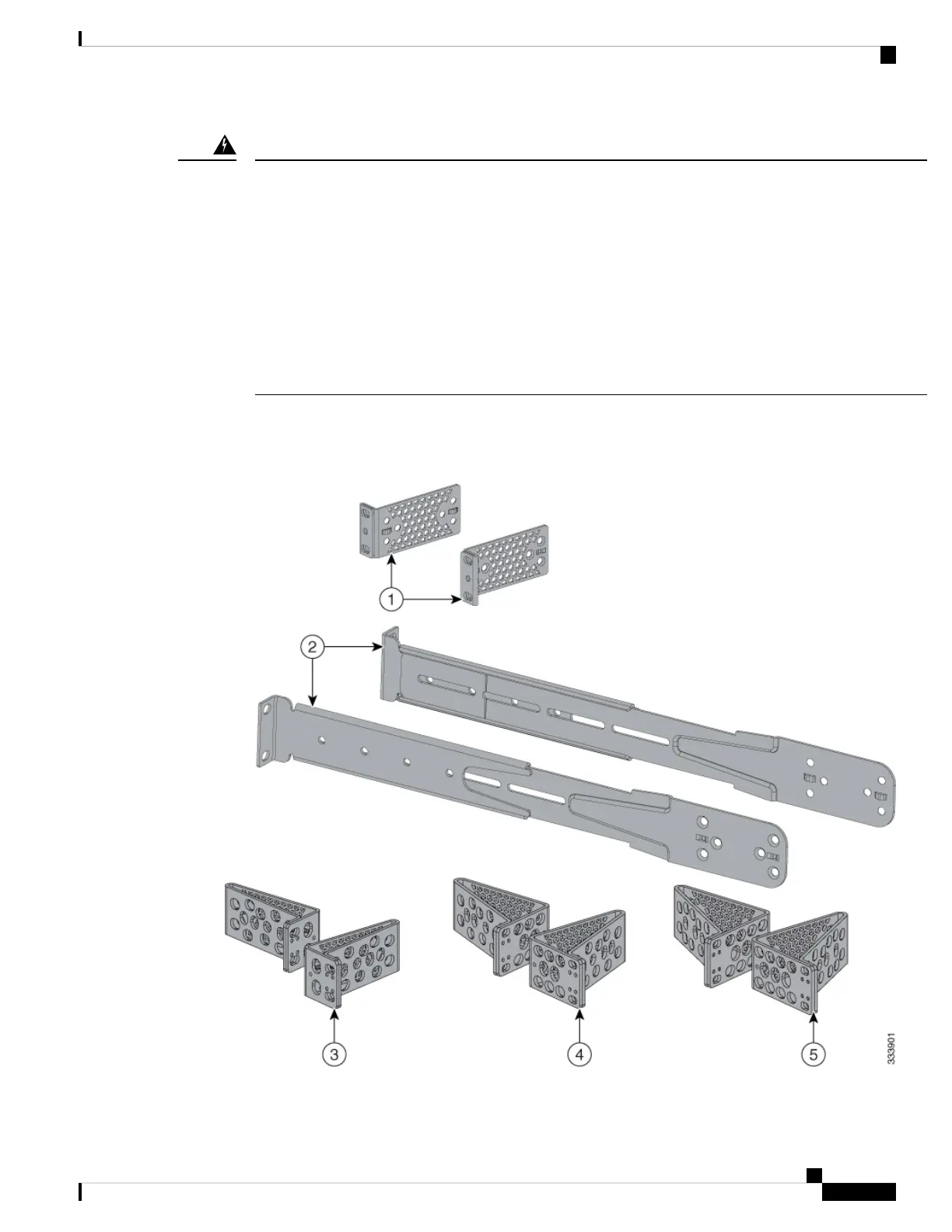

Cisco Catalyst 9300 Series Switches Hardware Installation Guide
55
