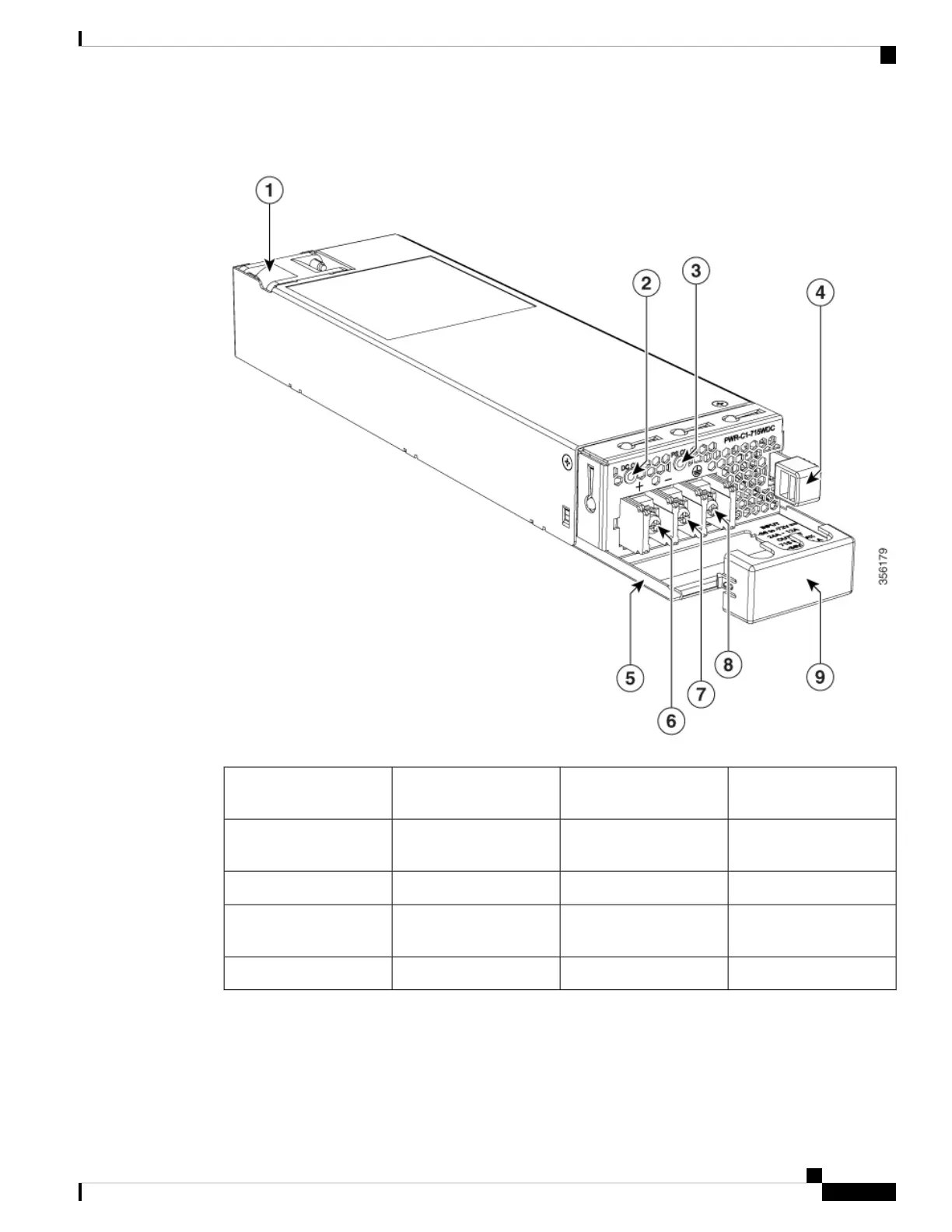

Figure 48: 715W DC Power Supply (PWR-C1-715WDC)
Input power terminal
(positive polarity)
6715 W DC power supply
module
1
Input power terminal
(negative polarity)
7DC OK LED2
Grounding terminal8PS OK LED3
Terminal block safety
cover
9Release latch4
--Extraction handle5
If no power supply is installed in a power supply slot, install a power supply slot cover.
