Cisco Catalyst C9300-24T User Manual

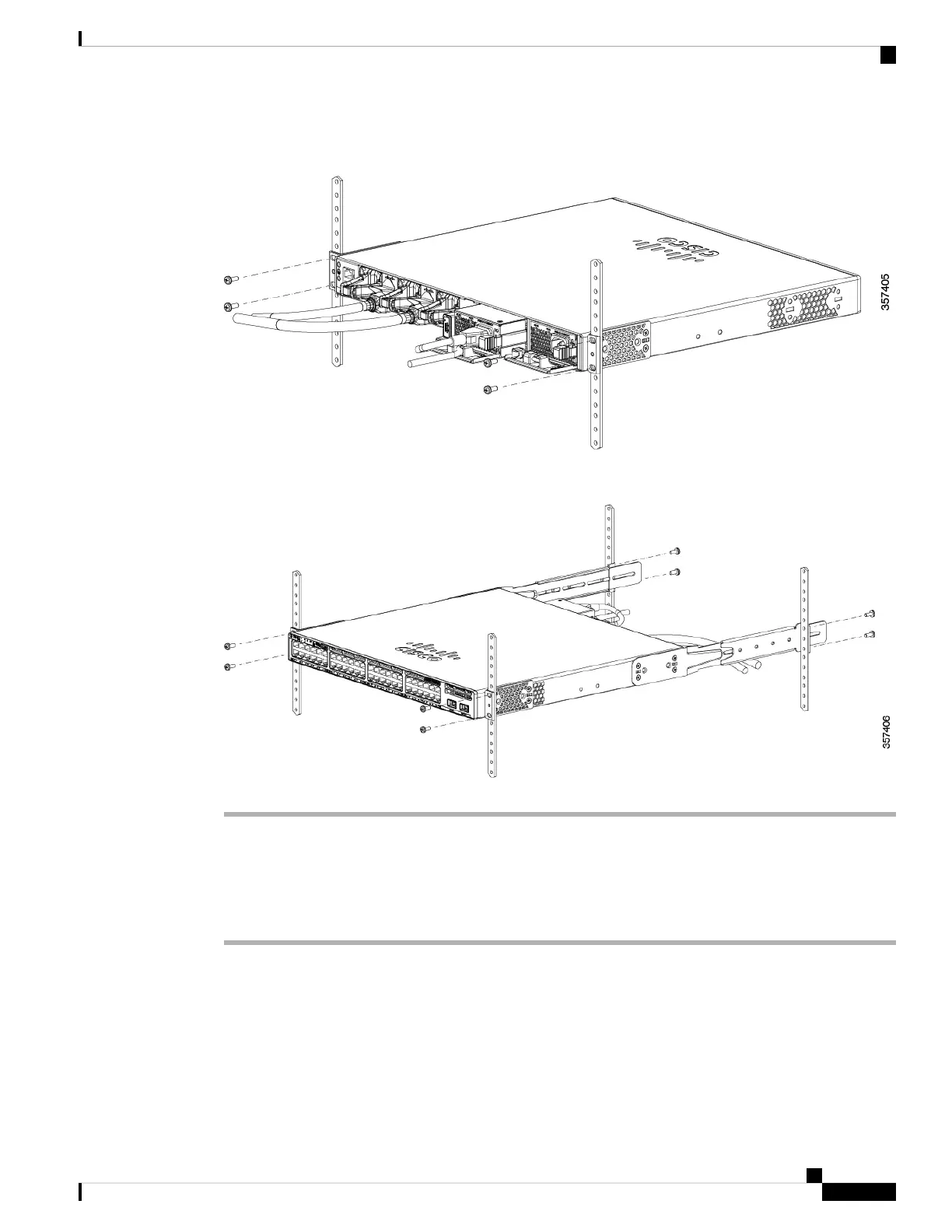

Figure 34: Rear-Mounting Position
Figure 35: Four-Point Mounting Position
Installing the Switch on a Table or Shelf
Procedure
Step 1 To install the switch on a table or shelf, locate the adhesive strip with the rubber feet in the mounting-kit
envelope.
Step 2 Attach the four rubber feet to the four circular etches on the bottom of the chassis.
Step 3 Place the switch on the table or shelf near an AC power source.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
59
Installing a Switch
Installing the Switch on a Table or Shelf

Cisco Catalyst C9300-24T Specifications

General

Model	C9300-24T
Product Type	Switch
Form Factor	Rack-mountable
Ports	24 x 10/100/1000 Ethernet Ports
DRAM	8 GB
Flash	16 GB
Stacking Bandwidth	480 Gbps
PoE Support	No
Stacking	Yes
Input Voltage	100V to 240V AC
Operating Temperature	0 to 45°C
Operating Humidity	5% to 95% non-condensing
