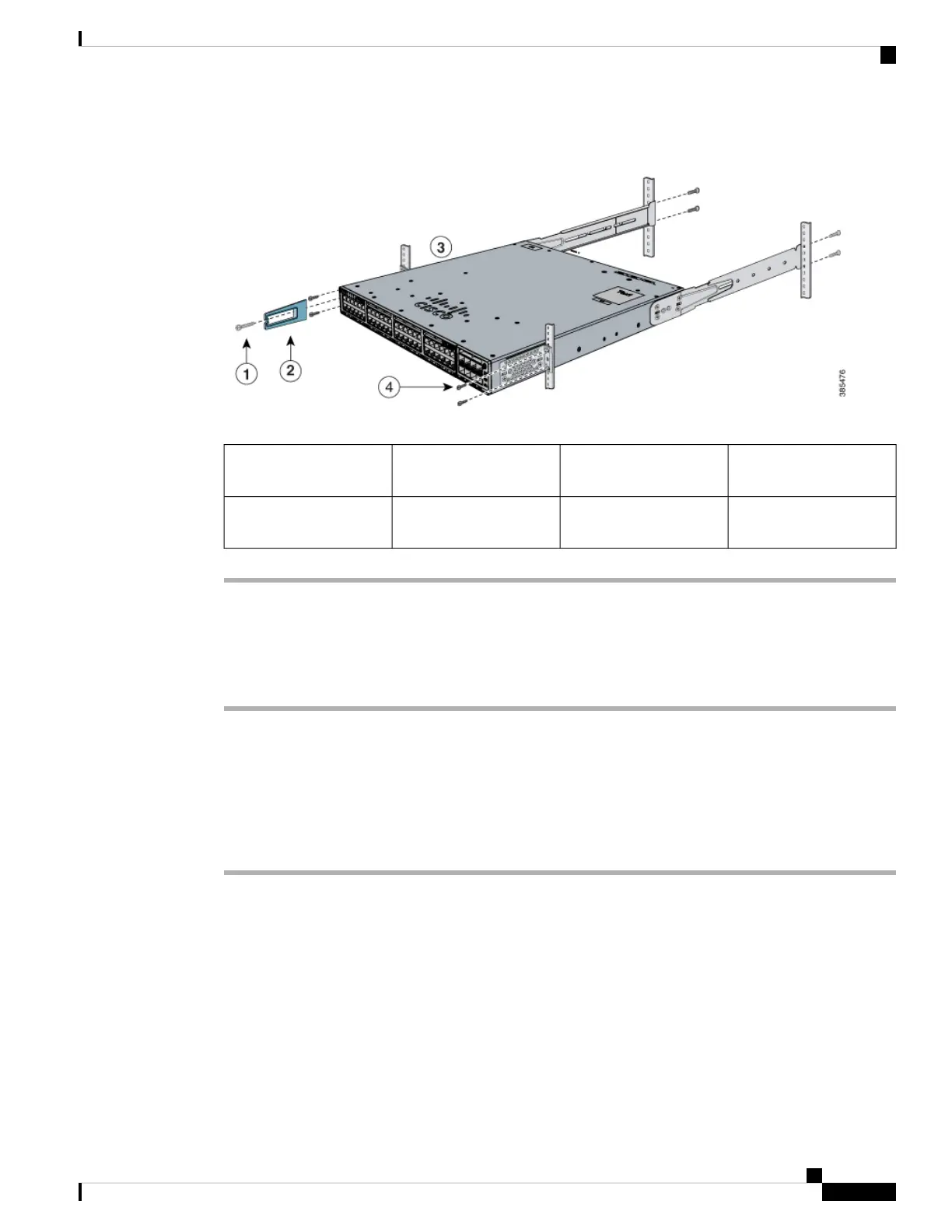

Figure 22: Mounting the Switch in a Rack
Front-mounting position3Phillips machine screw,
black
1
Number-12 or number-10
Phillips machine screws
4Cable guide2
Installing the Switch on a Table or Shelf
Procedure
Step 1 To install the switch on a table or shelf, locate the adhesive strip with the rubber feet in the mounting-kit
envelope.
Step 2 Attach the four rubber feet to the four circular etches on the bottom of the chassis.
Step 3 Place the switch on the table or shelf near an AC power source.
Step 4 When you complete the switch installation, see After Switch Installation, on page 35for information on switch
configuration.
After Switch Installation
• Configure the switch. For more information, see Setting up the Switch, on page 67.
• Connect to the stack ports.
• Install the power cord retainer (optional).
• Connect to the front-panel ports.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
35
Switch Installation
Installing the Switch on a Table or Shelf
