APPENDIX B
Connector and Cable Specifications
• Connector Specifications, on page 121
• Console Port, on page 123
• Cables and Adapters, on page 123
Connector Specifications
10/100/1000 Ports (Including PoE)
All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

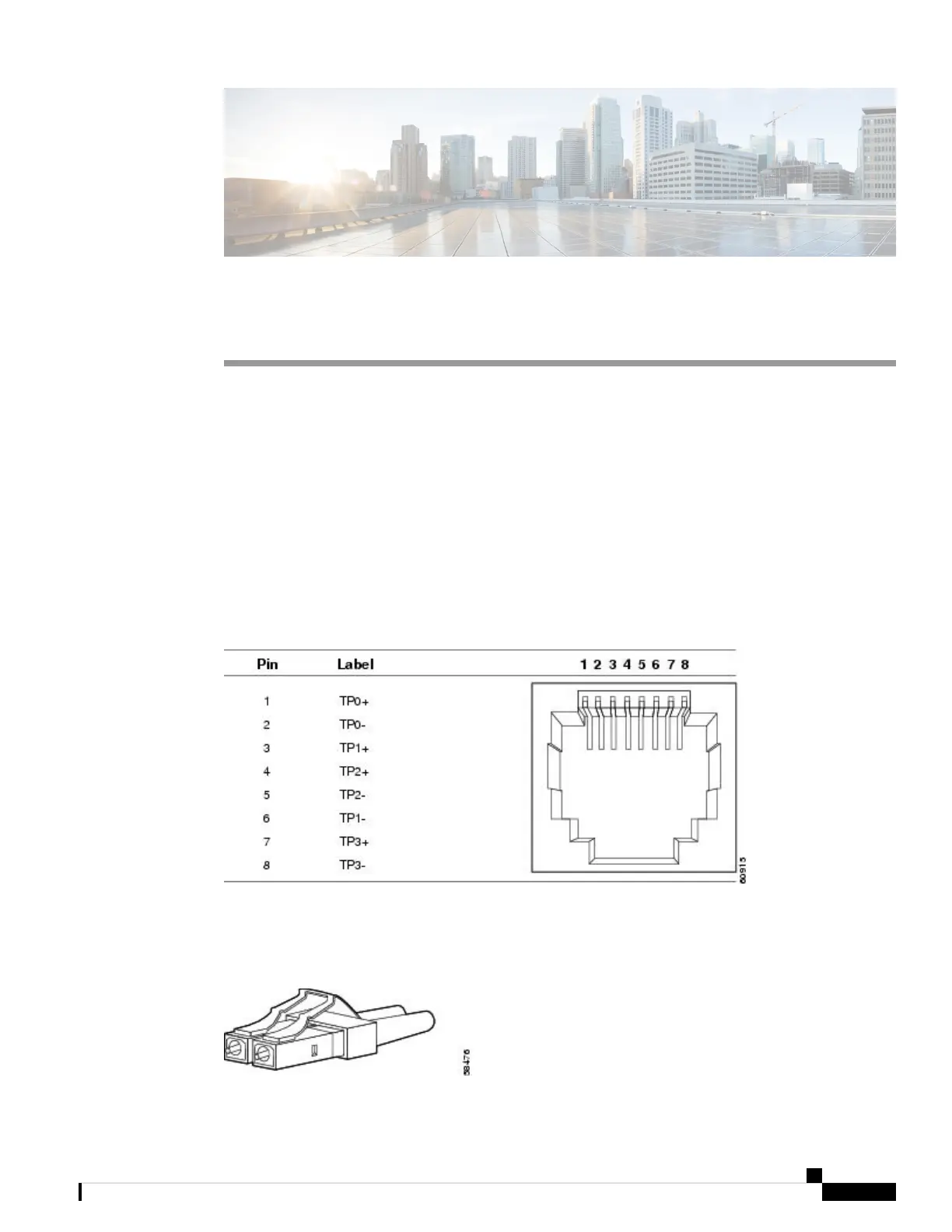

Figure 67: 10/100/1000 Port Pinouts
Module Connectors
Figure 68: Duplex LC Cable Connector
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
121

Cisco Catalyst C9300-24T Specifications

General

Model	C9300-24T
Product Type	Switch
Form Factor	Rack-mountable
Ports	24 x 10/100/1000 Ethernet Ports
DRAM	8 GB
Flash	16 GB
Stacking Bandwidth	480 Gbps
PoE Support	No
Stacking	Yes
Input Voltage	100V to 240V AC
Operating Temperature	0 to 45°C
Operating Humidity	5% to 95% non-condensing
