Cisco Catalyst C9300-24T User Manual

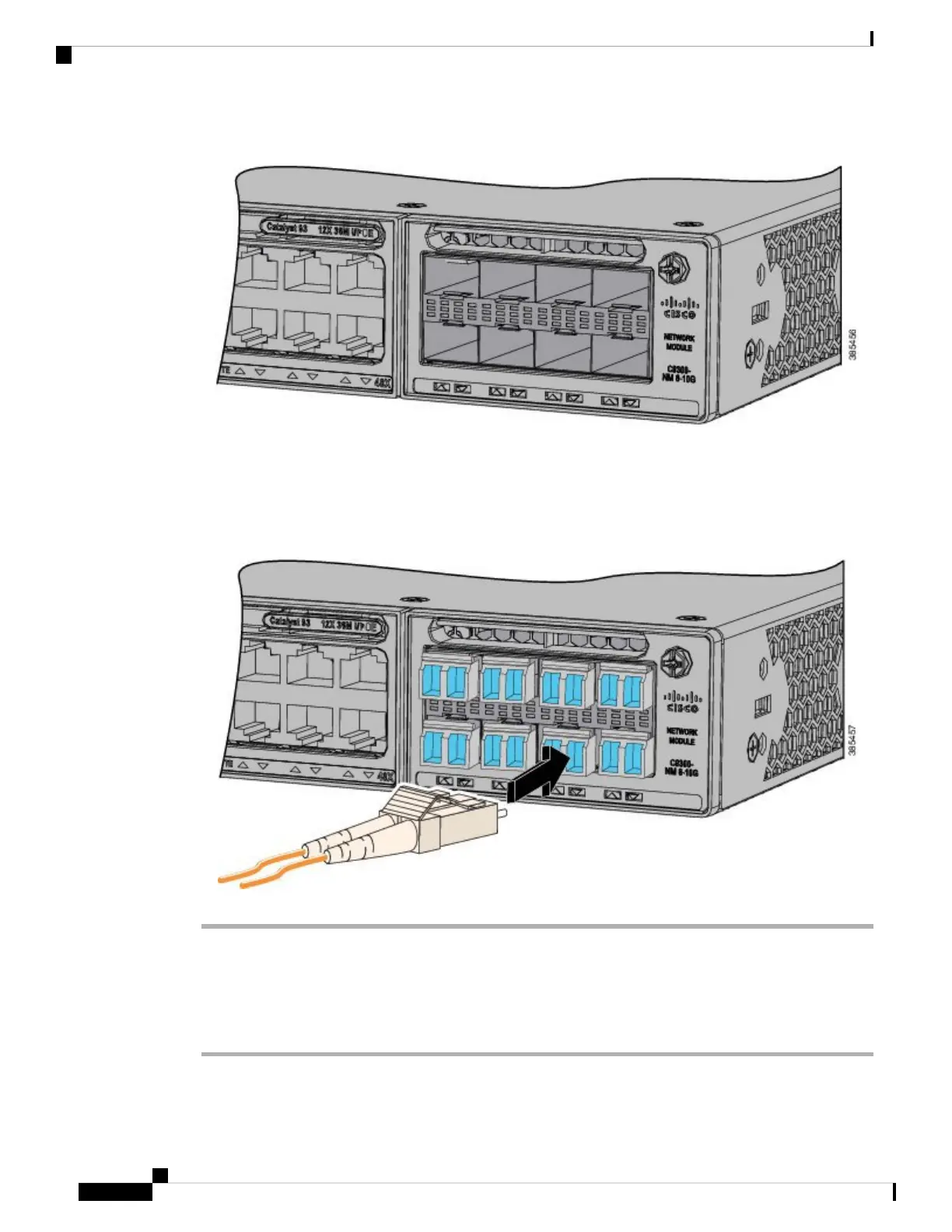

Figure 43: Installing a Pluggable Transceiver Module in the Network Module
Step 5 If the module has a bale-clasp latch, close it to lock the module in place.
Step 6 Remove the dust plugs and save.
Step 7 Connect the transceiver cables.
Figure 44: Network Module with Pluggable Transceiver Modules Installed
Removing Cisco Pluggable Transceiver Modules
Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
78
Installing a Network Module
Removing Cisco Pluggable Transceiver Modules

Cisco Catalyst C9300-24T Specifications

General

Model	C9300-24T
Product Type	Switch
Form Factor	Rack-mountable
Ports	24 x 10/100/1000 Ethernet Ports
DRAM	8 GB
Flash	16 GB
Stacking Bandwidth	480 Gbps
PoE Support	No
Stacking	Yes
Input Voltage	100V to 240V AC
Operating Temperature	0 to 45°C
Operating Humidity	5% to 95% non-condensing
