Cisco Catalyst C9300-48P User Manual

APPENDIX B
Connector and Cable Specifications
• Connector Specifications, on page 121
• Console Port, on page 123
• Cables and Adapters, on page 123
Connector Specifications
10/100/1000 Ports (Including PoE)
All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

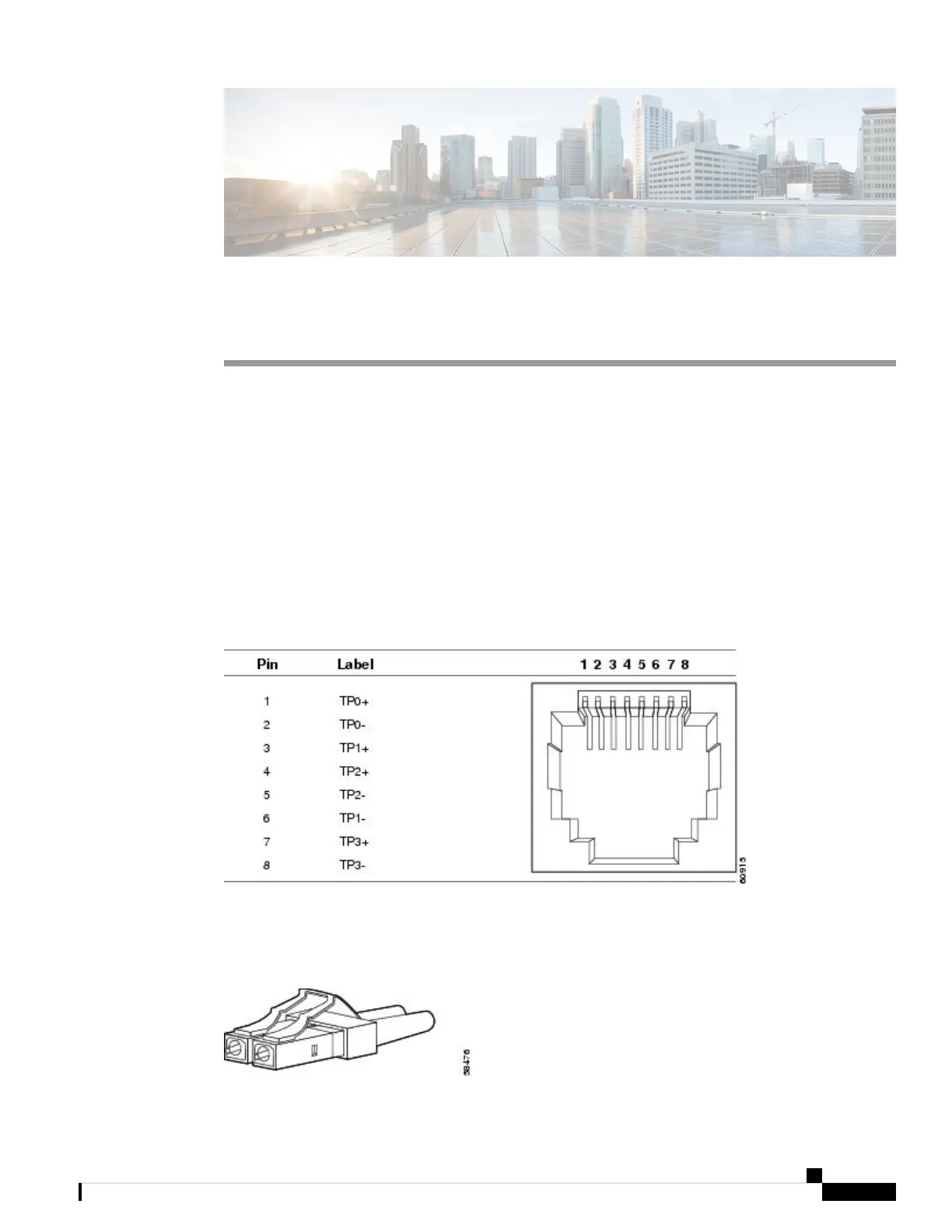

Figure 67: 10/100/1000 Port Pinouts
Module Connectors
Figure 68: Duplex LC Cable Connector
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
121

Cisco Catalyst C9300-48P Specifications

General

Model	C9300-48P
Ports	48x 10/100/1000 PoE+ ports
Switching Capacity	176 Gbps
Stacking Bandwidth	480 Gbps
Stackable	Yes
DRAM	8 GB
Flash Memory	16 GB
Power Device	Internal power supply
Uplink Interfaces	4 x 10G
Power Supply	715W AC
Dimensions	1.73 x 17.5 x 17.5 inches
Input Voltage	100 to 240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
