Figure 69: Simplex LC Cable Connector

Figure 70: Copper SFP Module LC Connector

MPO-12 Connectors

The multi-fiber push on (MPO) connector is a 12-fiber optical connector with a footprint similar to the SC

simplex connector. The MPO connector conforms to the TIA/EIA-604-5 intermateability standard. It is used

for establishing 40G and 100G optical parallel connections.

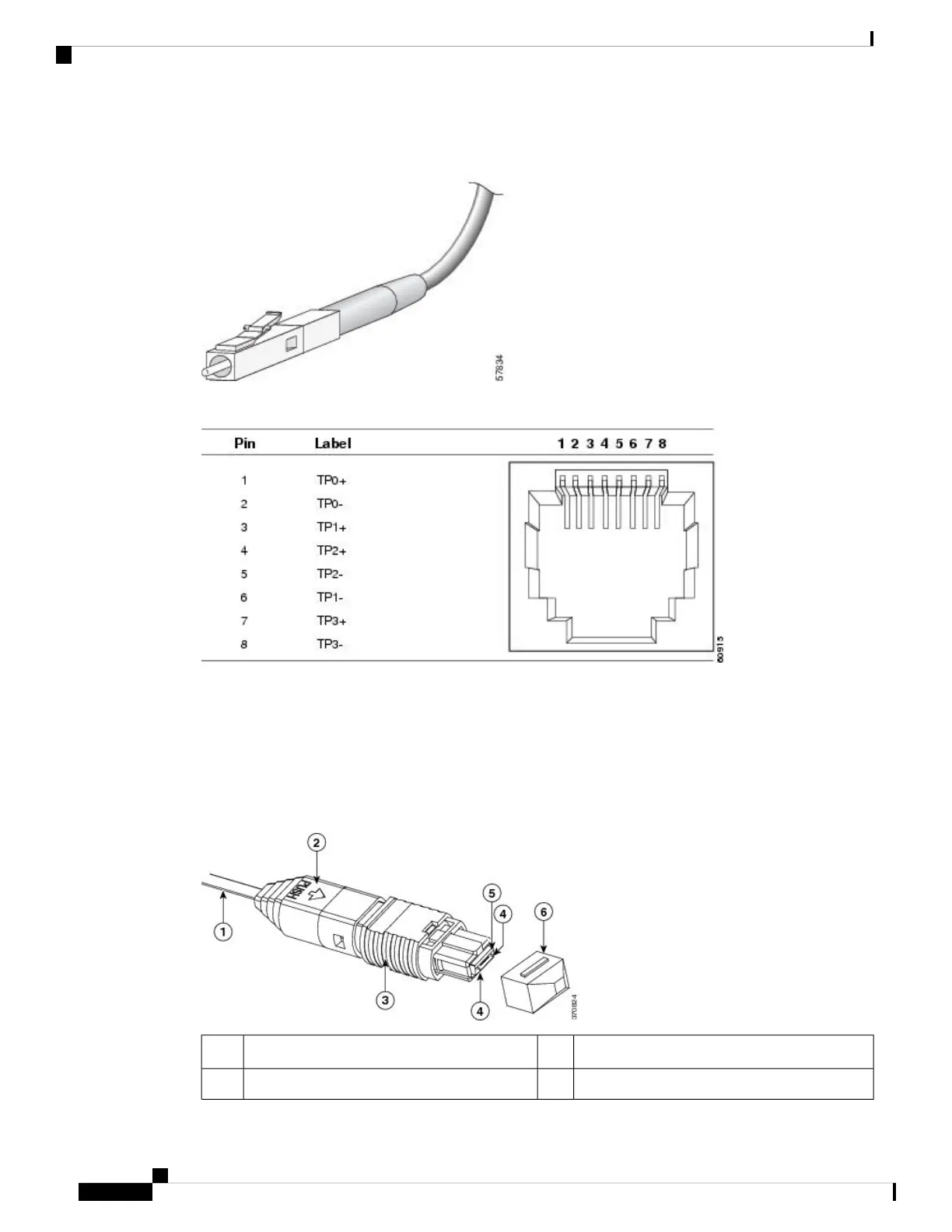

Figure 71: MPO-12 Fiber-Optic Connector

Guide pins412-fiber ribbon1

Ferrule5Boot2

Cisco Catalyst 9300 Series Switches Hardware Installation Guide

122

Connector and Cable Specifications

MPO-12 Connectors
