Minimum Coiled DiameterMinimum Bend RadiusCable LengthCable Part Number

5.20 in. (132 mm)1.6 in. (41 mm)3.28 feet (1.0 m)STACK-T3A-1M

7.17 in. (182 mm)3.2 in. (82 mm)9.84 feet (3.0 m)STACK-T3A-3M

1. With a 0.5 m cable, the minimum coiled diameter is negligible and the cable cannot be physically coiled

without exceeding the bending limit.

Transceiver Module Network Cables

For cabling specifications, refer to the following notes:

• Cisco SFP and SFP+ Transceiver Module Installation Notes

• Cisco 40-Gigabit QSFP+ Transceiver Modules Installation Note

Each port must match the wavelength specifications on the other end of the cable, and the cable must not

exceed the stipulated cable length. Copper 1000BASE-T SFP module transceivers use standard four twisted-pair,

Category 5 cable at lengths up to 328 feet (100 meters).

Cable Pinouts

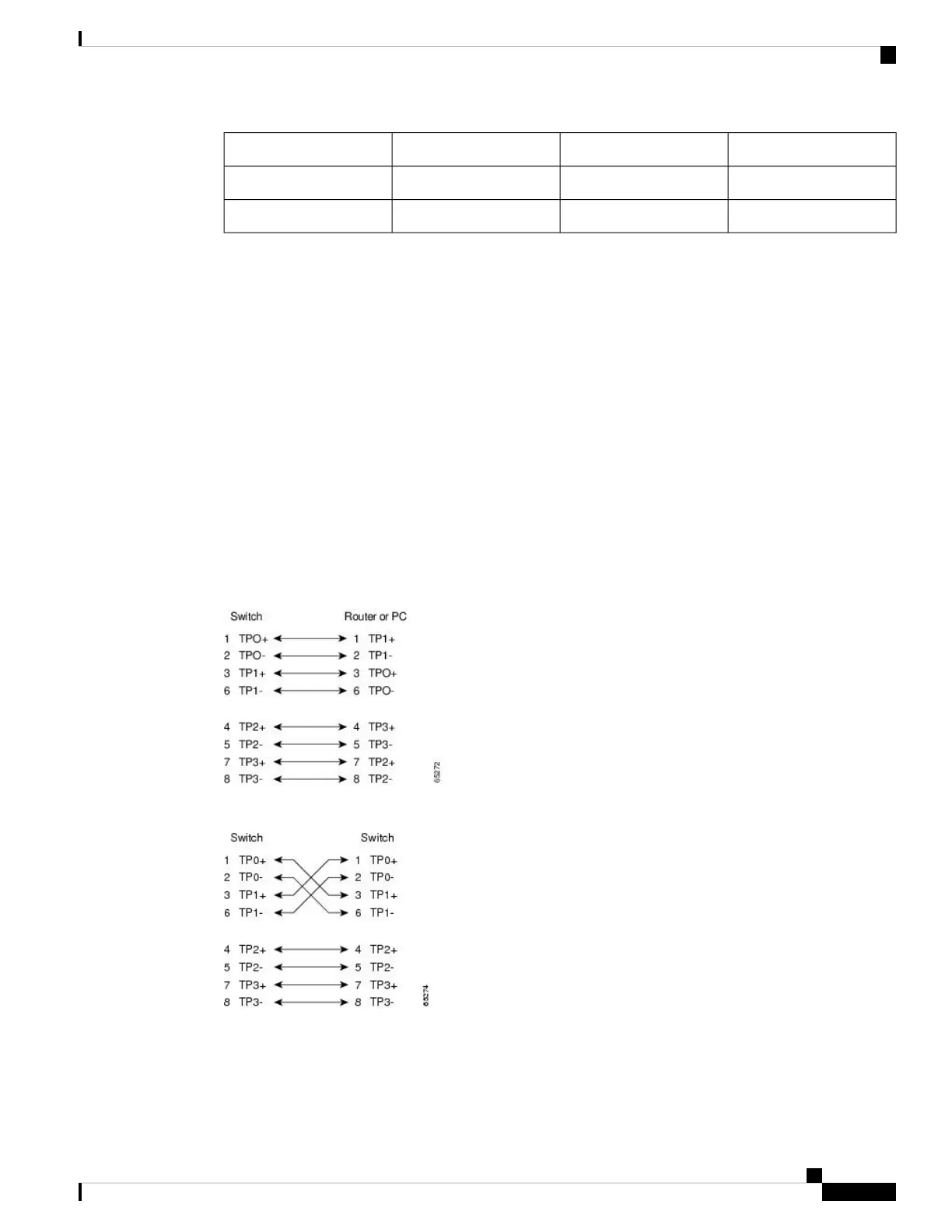

Figure 74: Four Twisted-Pair Straight-Through Cable Schematic

Figure 75: Four Twisted-Pair Semi-Cross Cable Schematic

Cisco Catalyst 9300 Series Switches Hardware Installation Guide

125

Connector and Cable Specifications

Transceiver Module Network Cables
