Procedure

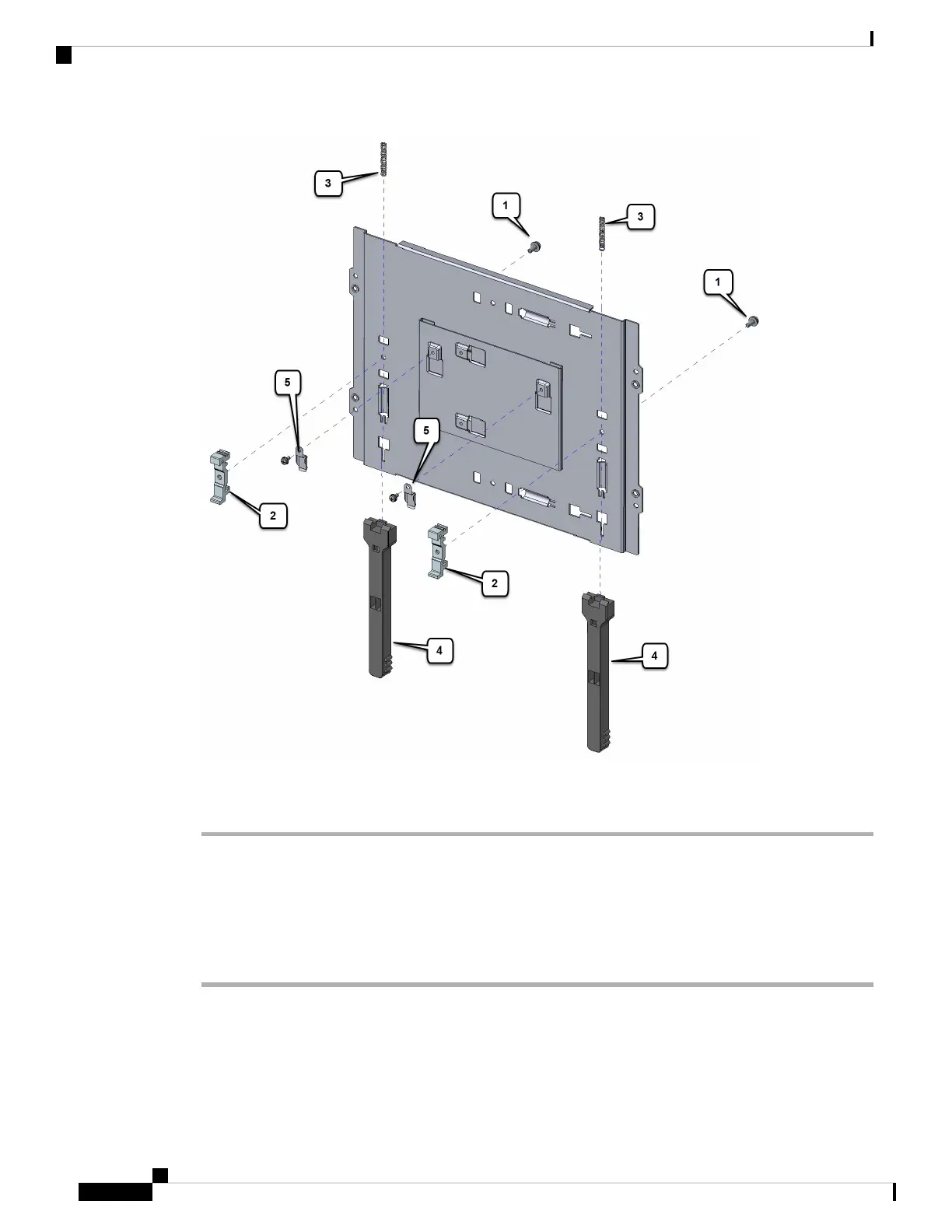

Step 1 Remove the two screws (1) that hold the two DIN Rail clamps (2).
Step 2 Slide the DIN rail clamps (2) away from the plastic latches (4) and remove.
Step 3 Slide the plastic latches (4) off of the DIN rail plate, and remove the two springs (3).
Step 4 Remove the two DIN Rail clips (5) from the mounting bracket.
Step 5 Retain all components for re-use when mounting with the vertical orientation.
What to do next
Move on to Bracket Reassembly.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
34
Installing the Router
Bracket Disassembly
