Bracket Reassembly

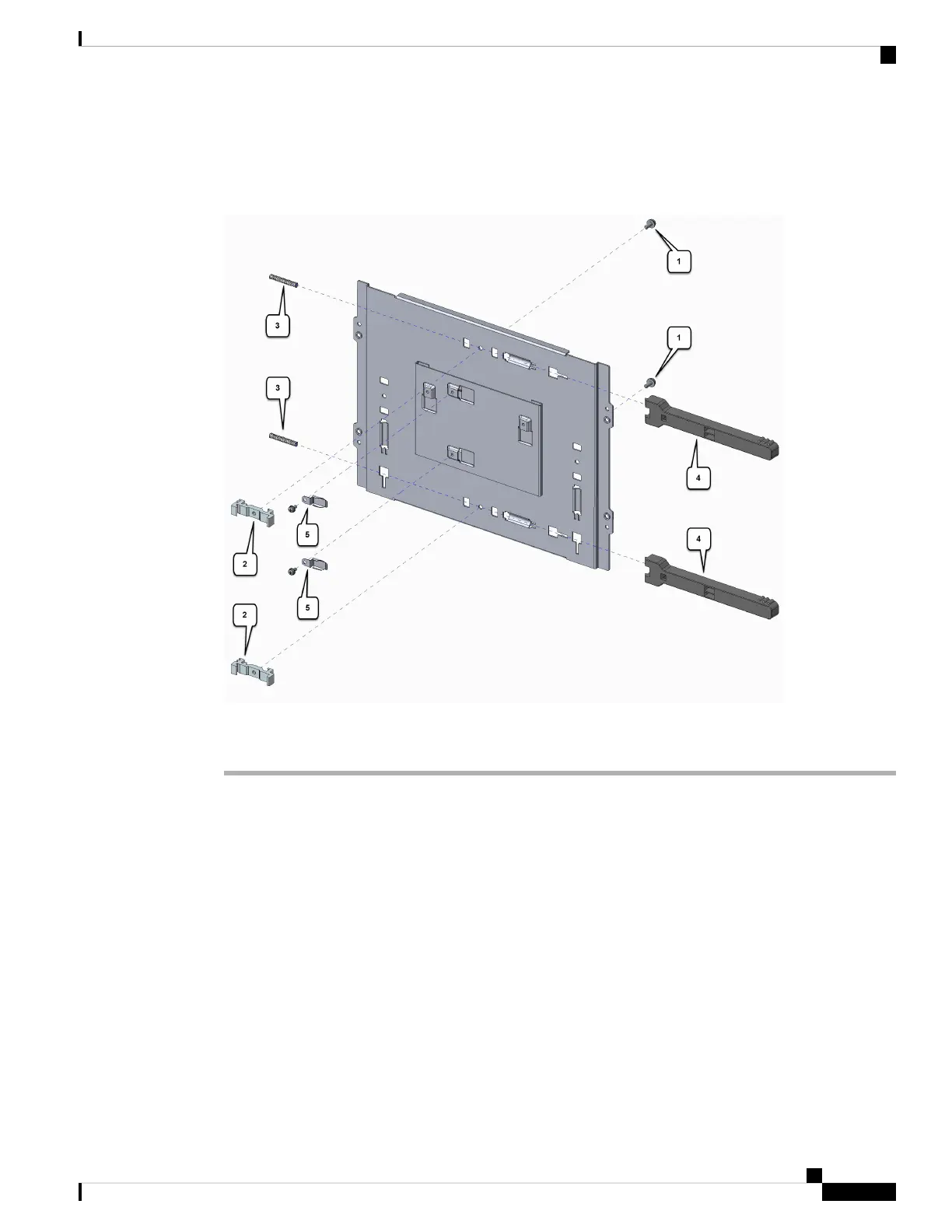

The following procedure reattaches all of the bracket componants to allow for vertical orientation. Refer to
the following graphics and follow the steps.
Procedure
Step 1 Slide the two springs (3) onto the thin tabs.
