The IR1800 may have a blank plate covering the Pluggable Module slot. This will need to be removed prior
to installing the cellular modem module. The following example shows the LTE Pluggable Module.
Procedure
Step 1 Remove the blank plate by unscrewing the latch lock screw(1) that holds the plate secure. Refer to the following
graphic.

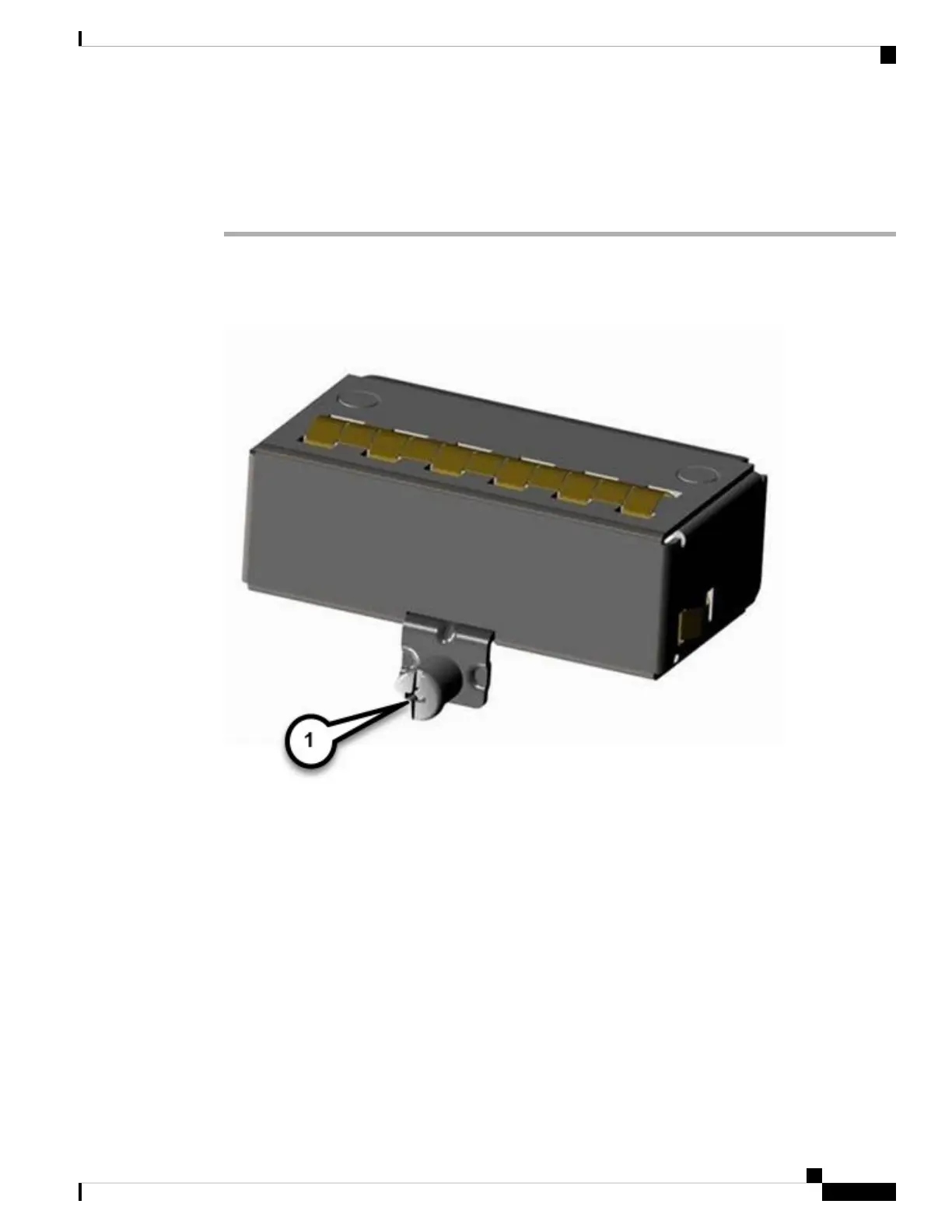

Figure 13: Latch Lock Screw
Step 2 Slide the blank plate out of the device.
Step 3 Prepare the cellular modem module by inserting the micro sims applicable for your modems into the device.
Remove the screw (1) holding the access plate in place that covers the sim slots. It is located on the side of
the module, as shown in the following graphics.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
47
Pluggable Interface Modules
Installation
