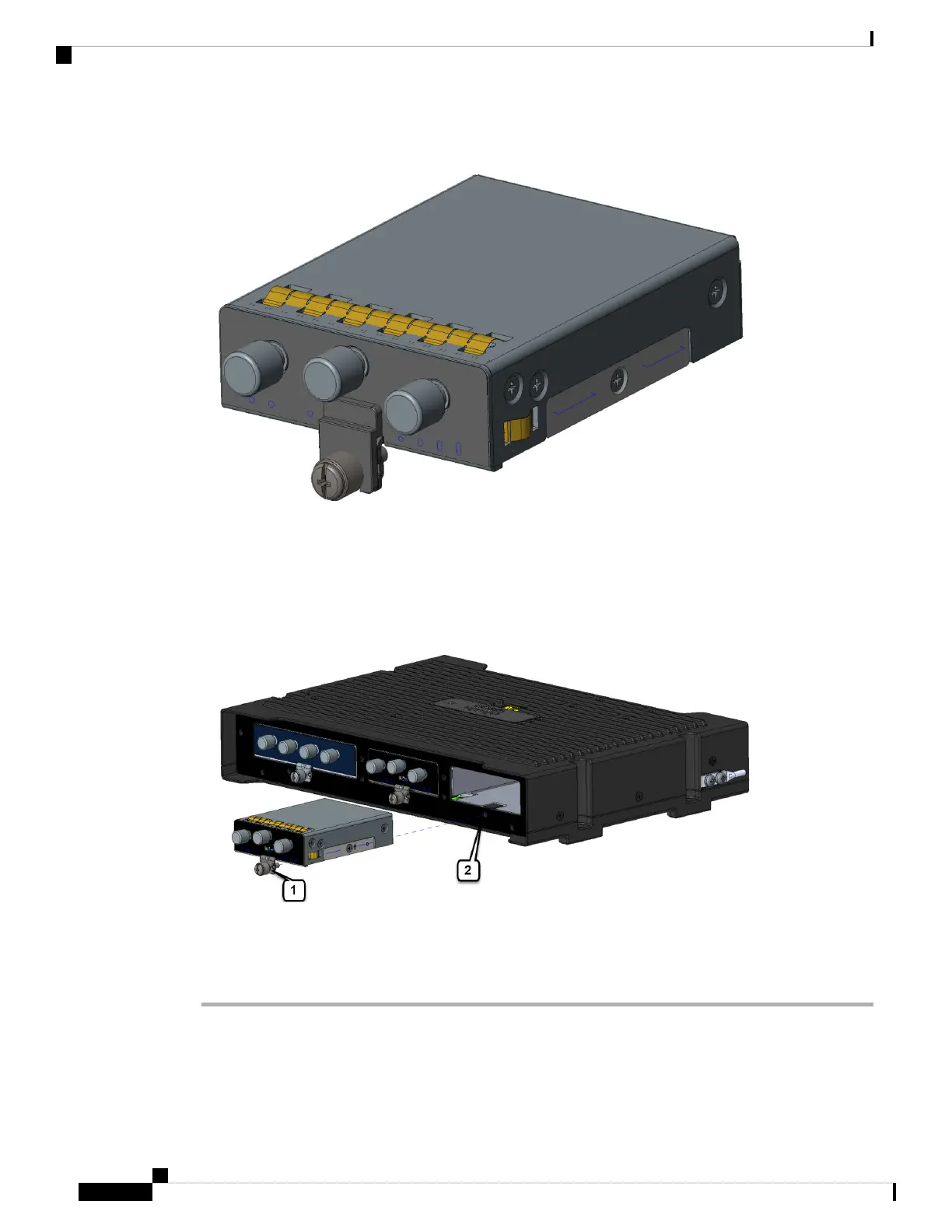

Figure 17: USB Cover Finished Installation
Step 8 Slide the Pluggable Module into the device as shown in the following graphic. The latch lock screw (1) aligns
with the screw hole (2) on the face of the device. Push the Pluggable Module all the way into the device until
you feel it seat, and then torque the latch lock screw 8-10 inch-pound (0.9 to 1.1 newton meter).
Figure 18: Pluggable Module Insert
Step 9 Attach your antennas to the ports on the pluggable module. There are different instructions for each antenna
type, be sure to consult the antenna documentation for proper orientation and torque to install them.
Step 10 If no antennas are being installed on a port, make sure the caps are installed on the connector.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
50
Pluggable Interface Modules
Installation
