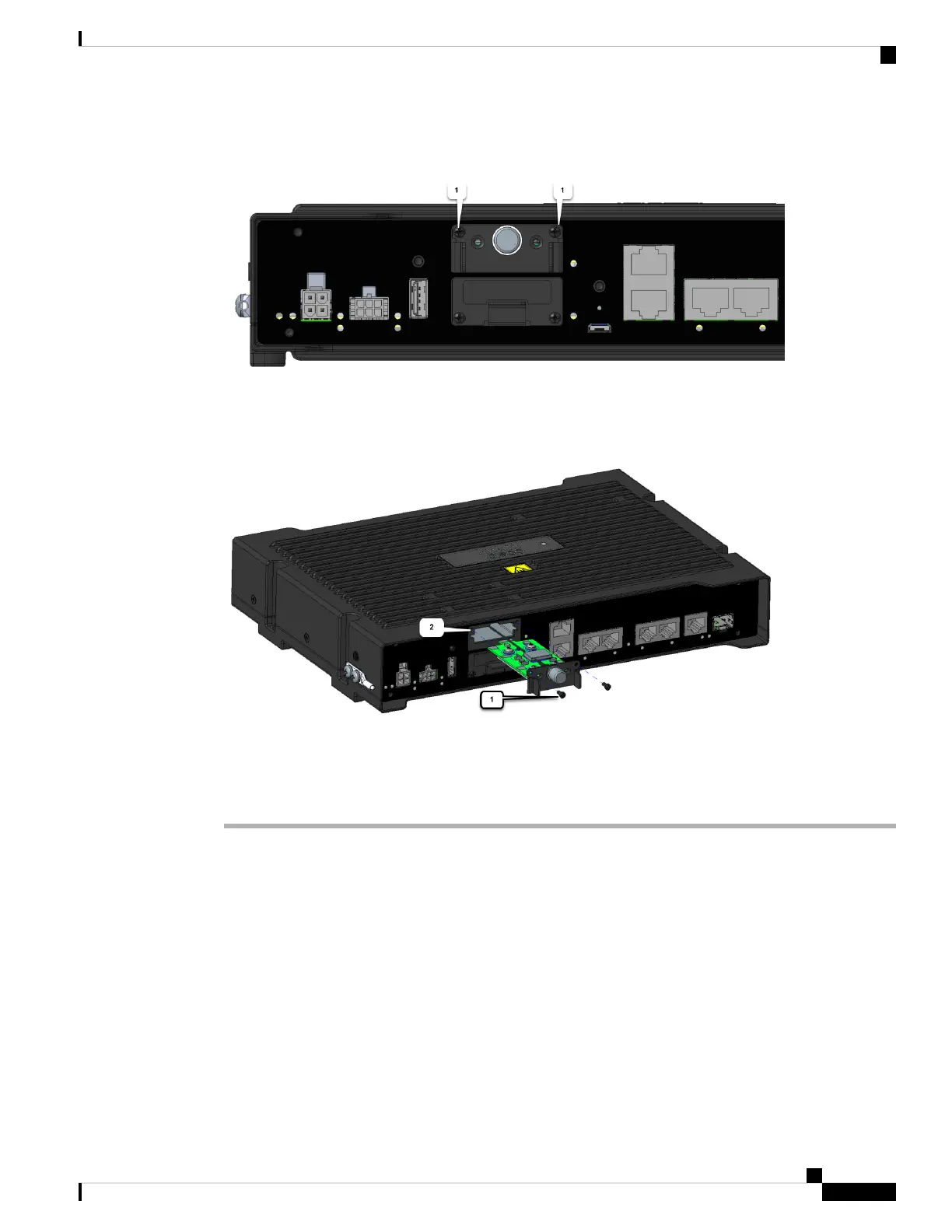

Figure 23: GNSS Slot Cover
Step 2 Insert the GNSS FRU Module into the slot in the device. Refer to the following figure.
Figure 24: GNSS Module Insertion
Step 3 Using the previous removed screws (1), align them with the mounting holes (2), and tighten to 2-3 in-lb
(0.2-0.3 newton meter).
Step 4 The installation is now complete.
What to do next
To remove the module, simply reverse the steps.
1. Power off the device.
2. Remove the screws.
3. Pull out the module.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
57
GNSS FRU Module
Installation and Removal
